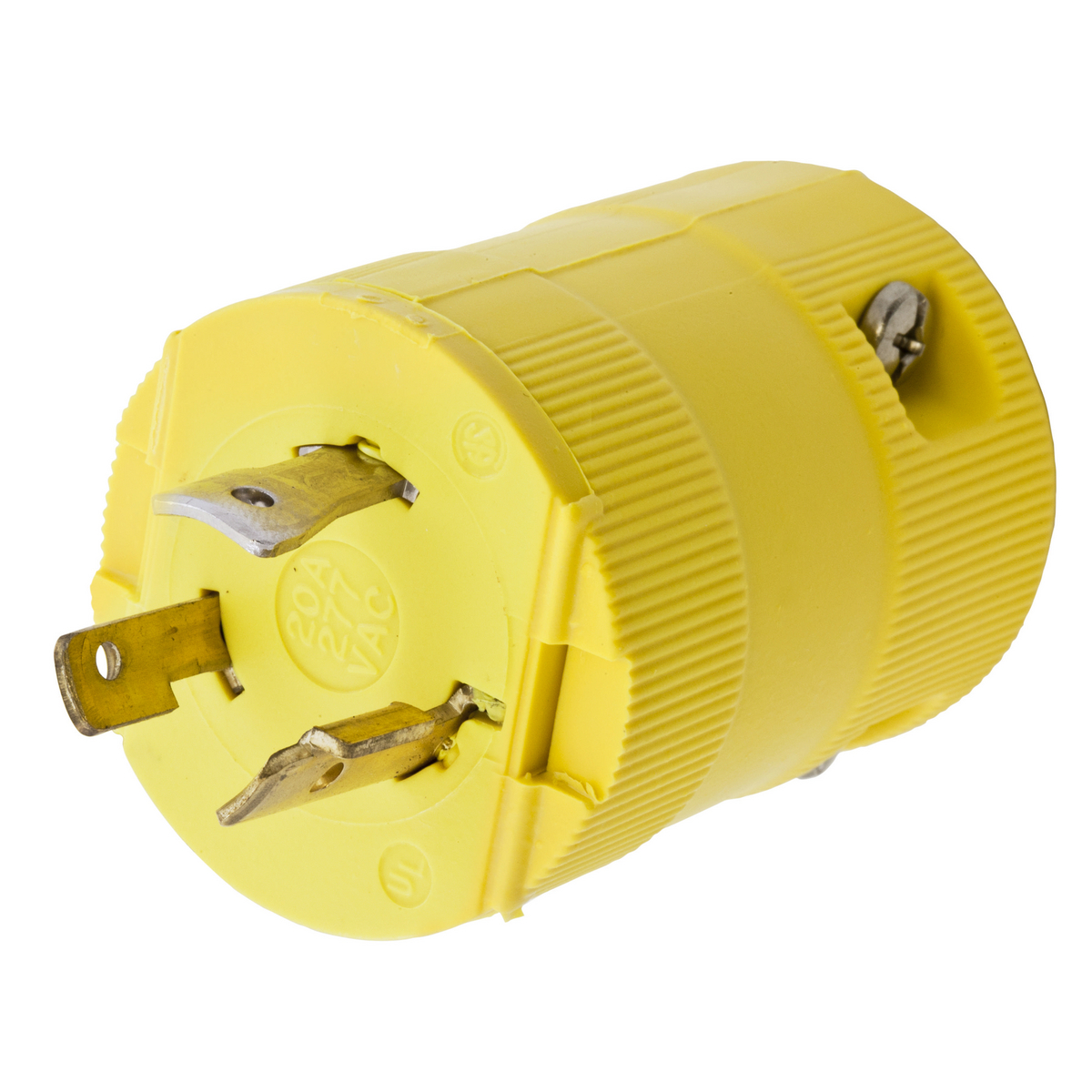

HUBBELL WIRING DEVICE-KELLEMS HBL2331VY Male Plug, 20A, 277VAC, 2-Pole, 3-Wire Grounding
Item: AC8QJXModel: HBL2331VYCross Ref: 3D558
7 In Stock
Ships within 2 days via
10.00% off
€30.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 20A |
| Antimicrobial | No |
| Blade Material | Brass |
| Body Length | 1.78" |
| Cable Range | 0.325" to 0.72" |
| Color | Yellow |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Cord Dia. Range | 0.325"-0.720" |
| Cord Size | 0.36" to 0.93" |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Diameter | 1.781" |
| For Environment | Dry |
| For Location | Indoor |
| For Maximum Cable Diameter | 0.72" |
| For Minimum Cable Diameter | 0.325" |
| Grade | Grade Industrial |
| Grounding | Grounded |
| Height | 2 1/2" |
| Horsepower Rating | 2 hp |
| Housing Color | Yellow |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Market | Industrial |
| Material | Nylon |
| Max. Hp | 2 hp |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Mounting | Cord Mounted |
| Nema Plug Configuration | L7-20P |
| Nema Rating | NEMA L7-20P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 1.78" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2331vy.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 277V AC |
| Wattage | 5540 W |
| Width | 1.78" |
| Wire Connection Type | Screw Terminals |
| Wire Size | 18 AWG to 10 AWG |
| Wiring Style | Hinged |
| Wiring Type | Hinged |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 4.52 |
| Ship width (cm) | 4.52 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Current Rating | Voltage Rating | Wiring Style | Shrouded | Housing Color | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4720CBK | 1 | 2 | 15A | 125V AC | Standard | No | Black | IP20 | €42.38 | |
 |
HBL2311BK | 1 | 2 | 20A | 125V AC | Standard | No | Black | IP20 | €49.30 | |
 |
HBL2611BK | 1 | 2 | 30A | 125V AC | Standard | No | Black | IP20 | €75.97 | |
 |
HBL2321BK | 1 | 2 | 20A | 250V AC | Standard | No | Black | IP20 | €45.37 | |
 |
HBL2621BK | 1 | 2 | 30A | 250V AC | Standard | No | Black | IP20 | €83.47 | |
 |
HBL2511BK | 3 | 4 | 20A | 120/208V AC | Standard | No | Black | IP20 | €90.22 | |
 |
HBL2811BK | 3 | 4 | 30A | 120/208V AC | Standard | No | Black | IP20 | €112.16 |
