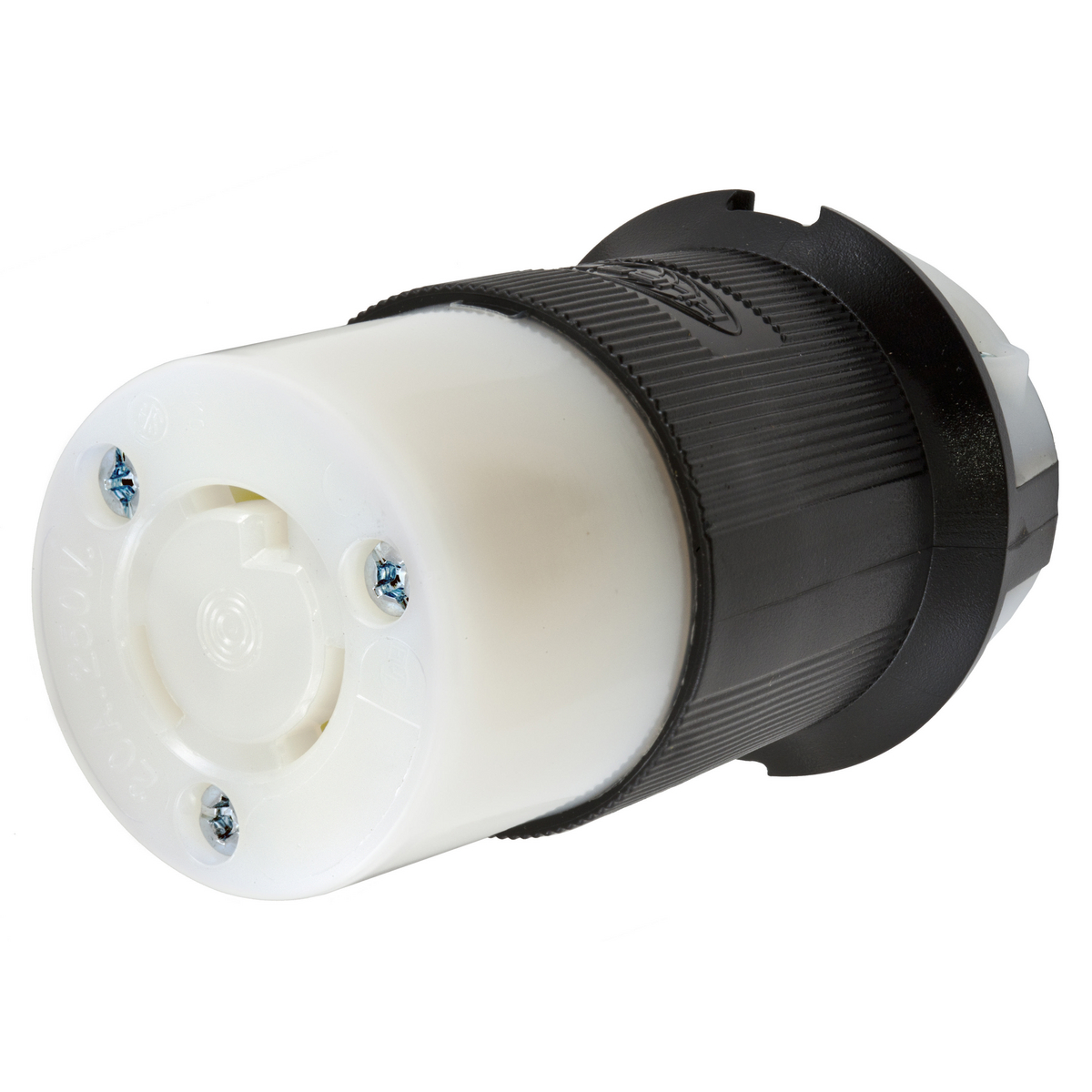

HUBBELL WIRING DEVICE-KELLEMS HBL2323 Female Connector, 20A, 250V, 2-Pole, 3-Wire Grounding
Get it by Monday, Jul 6
€29.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Anti Microbial | No |
| Cable Range | 0.36" to 0.93" |
| Cap Type | No Cap, Cover |
| Color | Black, White |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Brass |
| Cord Dia. Range | 0.360"-0.930" |
| Cord Size | 0.36" to 0.93" |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| For Max. Cable Dia. | 0.93" |
| For Min. Cable Dia. | 0.36" |
| Grade | Industrial, Commercial |
| Grounding | Grounded |
| Height | 3.86" |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Hp | 2 hp |
| Insulation | Insulated Body |
| Ip Rating | IP20 |
| Length | 2.26" |
| Market | Industrial |
| Material | Composite |
| Max. Hp | 2 hp |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Mounting | Cord Mounted |
| Nema Rating | NEMA L6-20R |
| Nema Receptacle Configuration | L6-20R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outside Dia. | 2.26" |
| Overall Length | 2.26" |
| Phase | 1 |
| Product Datasheet | hubbell-wiring-device-kellems-hbl2323.pdf |
| Resistance Properties | Chemical Resistant, Impact Resistant |
| Shrouded | No |
| Temp. Rating | Maximum Continuous: 75 Deg. C; Minimum Continuous:-40 Deg. C w/o impact,-25 Deg. with impact. |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V AC |
| Width | 2.26" |
| Wire Connection Type | Screw Terminal |
| Wire Size | 16 AWG to 8 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 9.8 |
| Ship length (cm) | 5.74 |
| Ship width (cm) | 5.74 |
| HS code | 8536698000 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Housing Color | Cap Type | Ip Rating | Wire Size | Material | Height | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4729CBK | 1 | - | - | - | 18 AWG to 10 AWG | Nylon | 2.78" | 15A | €67.75 | |
 |
HBL2313BK | 1 | Black | No Cap, Cover | IP20 | 16 AWG to 8 AWG | Nylon | 3.86" | 20A | €74.78 | |
 |
HBL2613BK | 1 | Black | No Cap, Cover | IP20 | 16 AWG to 8 AWG | Nylon | 3.86" | 30A | €152.76 | |
 |
HBL2323BK | 1 | Black | No Cap, Cover | IP20 | 16 AWG to 8 AWG | Nylon | 3.86" | 20A | €75.77 | |
 |
HBL2623BK | 1 | Black | No Cap, Cover | IP20 | 16 AWG to 8 AWG | Nylon | 2.26" | 30A | €155.93 | |
 |
HBL2513BK | 3 | Black | No Cap, Cover | IP20 | 16 AWG to 8 AWG | Nylon | 2.33" | 20A | €168.30 | |
 |
HBL2813BK | 3 | Black | No Cap, Cover | IP20 | 16 AWG to 8 AWG | Nylon | 3.86" | 30A | €210.83 |
