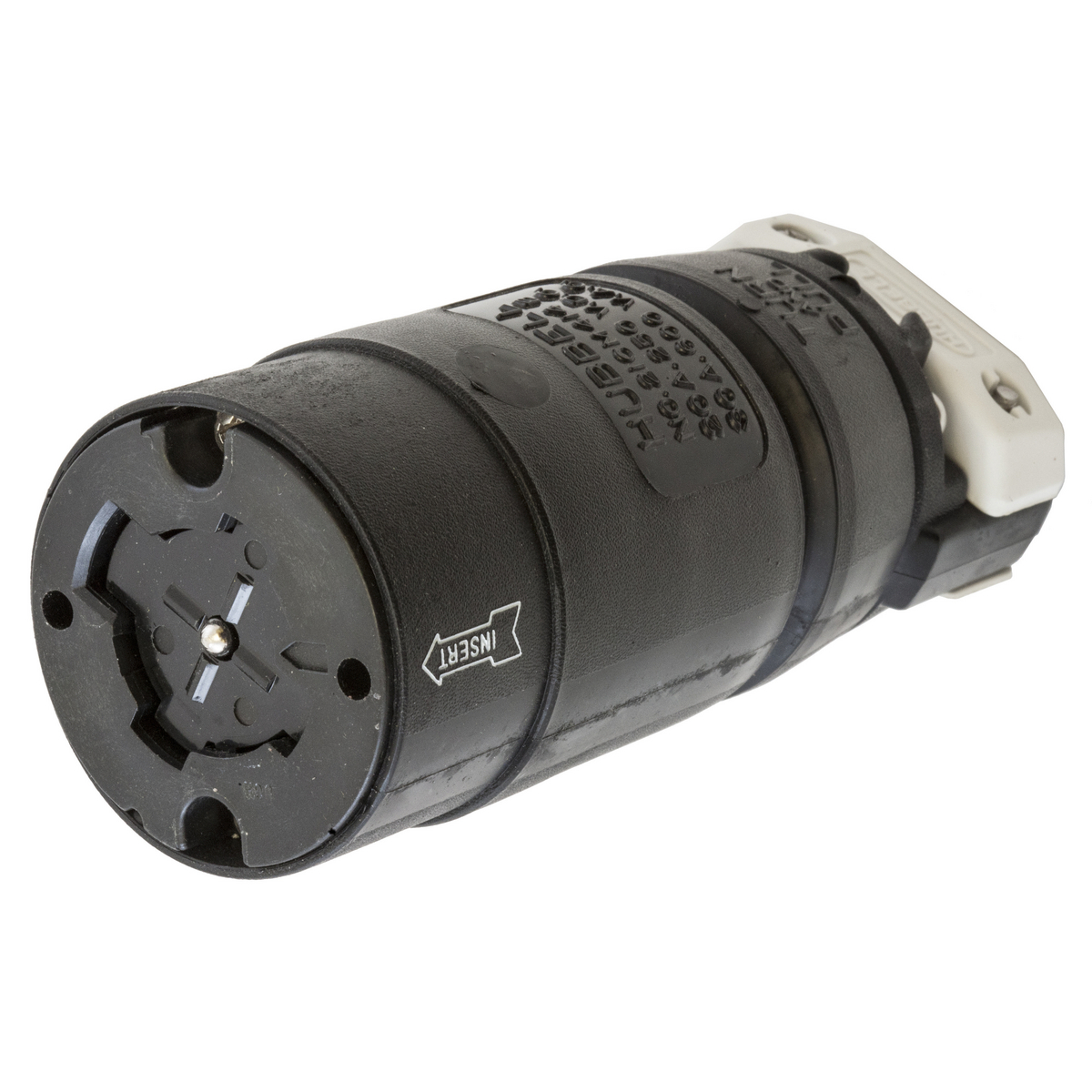

HUBBELL WIRING DEVICE-KELLEMS HBL21CM414B Female Connector, 30A, 600VAC, 20A, 250VDC, 3-Pole, 4-Wire Grounding
Item: AC8QJUModel: HBL21CM414BCross Ref: 3D538
7 In Stock
Ships within 2 days via
10.00% off
€570.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30 @ 600V/20 @ 250V |
| Antimicrobial | No |
| Cable Range | 0.7" to 1.2" |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Connection Orientation | Straight |
| Connectivity | Pressure Terminal Screws |
| Contact Material | Nickel Plated Bronze |
| Cord Dia. Range | 0.70"-1.20" |
| Cord Size | 0.63" to 1.2" |
| Current Rating | 20/30A |
| Dielectric Strength | Withstands 2,000V minimum |
| For Maximum Cable Diameter | 1.2" |
| For Minimum Cable Diameter | 0.7" |
| Grade | Marine |
| Grounding | Grounded |
| Height | 2 11/25" |
| Housing Color | Yellow |
| Housing Material | Nylon |
| Insulation | Insulated Body |
| Ip Rating | IP30 |
| Length | 6" |
| Market | Industrial |
| Material | Nylon |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 6 AWG |
| Midget Locking | No |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 10 AWG |
| Mounting | Cord Mounted |
| Nema Configuration | Non-NEMA |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Outside Diameter | 2.438" |
| Overall Length | 6" |
| Phase | 3 |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl21cm414b.pdf |
| Resistance Properties | Corrosion Resistant, Moisture Resistant |
| Shrouded | No |
| Type | Non Shrouded |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 250/600V |
| Voltage Rating | 250V DC/600V AC |
| Width | 2 11/25" |
| Wire Connection Type | Screw Terminals |
| Wire Size | #10 AWG to #6 AWG |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 6.2 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 6.2 |
| HS code | 8536694050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Number Of Poles | Number Of Wires | Voltage Rating | Housing Color | Cap Type | Ip Rating | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL4729CBK | 1 | 2 | 3 | - | - | - | - | - | €67.75 | |
 |
HBL2313BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 20A | €74.78 | |
 |
HBL2613BK | 1 | 2 | 3 | 125V AC | Black | No Cap, Cover | IP20 | 30A | €152.76 | |
 |
HBL2323BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 20A | €75.77 | |
 |
HBL2623BK | 1 | 2 | 3 | 250V AC | Black | No Cap, Cover | IP20 | 30A | €155.93 | |
 |
HBL2513BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 20A | €168.30 | |
 |
HBL2813BK | 3 | 4 | 5 | 120/208V AC | Black | No Cap, Cover | IP20 | 30A | €210.83 |
