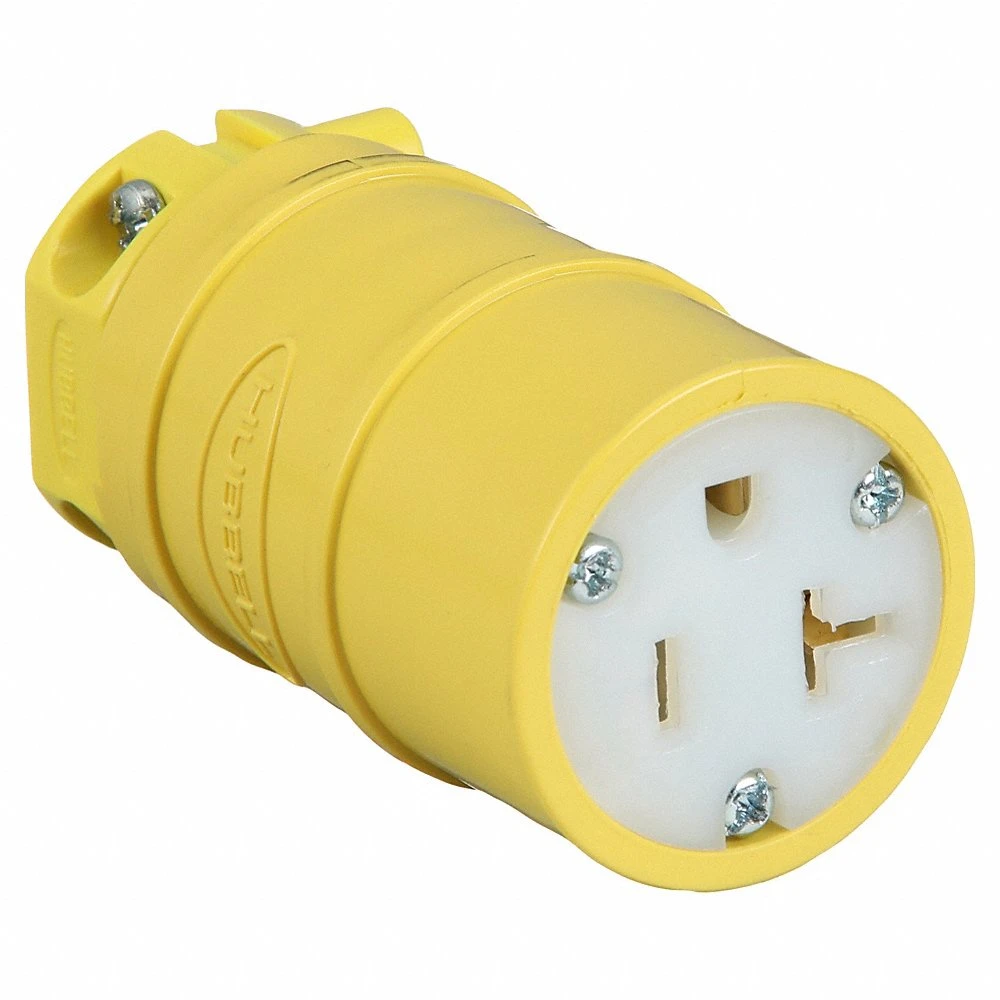

HUBBELL WIRING DEVICE-KELLEMS HBL1533 Dust Tight Connector, Industrial Grade, Straight, 20A 125V, 5-20R, Yellow
Item: AC8PVBModel: HBL1533Cross Ref: 3D010
7 In Stock
Ships within 2 days via
10.00% off
€55.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dust Tight Connector |
| Amps | 20A |
| Antimicrobial | No |
| Cap Type | No Cap, Cover |
| Color | Yellow |
| Conductor | #18 AWG to #12 AWG |
| Conductor Range | #18 AWG to #12 AWG |
| Connection Orientation | Straight |
| Connectivity | Screw Terminals |
| Contact Material | Brass |
| Cord Dia. Range | 0.250"-0.655" |
| Cord Size | 0.3" to 0.655" , 18 AWG to 12 AWG |
| Current Rating | 20A |
| Diameter | #18 AWG to #12 AWG |
| Dielectric Strength | Withstands 2,000V minimum |
| For Environment | Dry |
| For Location | Indoor |
| Grade | General Use |
| Grounding | Grounded |
| Height | 3" |
| Horsepower Rating | 1 hp |
| Housing Color | Yellow |
| Housing Material | Thermoplastic Elastomer |
| Insulation | Insulated Body |
| Insulation Material | Nylon |
| Ip Rating | IP20 |
| Length | 3" |
| Material | PVC |
| Max. Hp | 1 hp |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Length | 3" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicating Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl1533.pdf |
| Resistance Properties | Dust Ignition Proof, Moisture Resistant, Weather Resistant |
| Standards | Csa Certified, Nema Wd-6, Ul Listed |
| Temp. Rating | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Width | 1.61" |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Wiring Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 4.09 |
| HS code | 8536698000 |
| Country of Origin | US |
Product Details:
- Special Features: Moisture, Dust, and Weather Resistant
Documentation:
Product Variants
| Product | Model | Current Rating | Cord Size | Nema Rating | Nema Receptacle Configuration | Voltage Rating | Wire Connection Type | Wiring Style | Connection Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

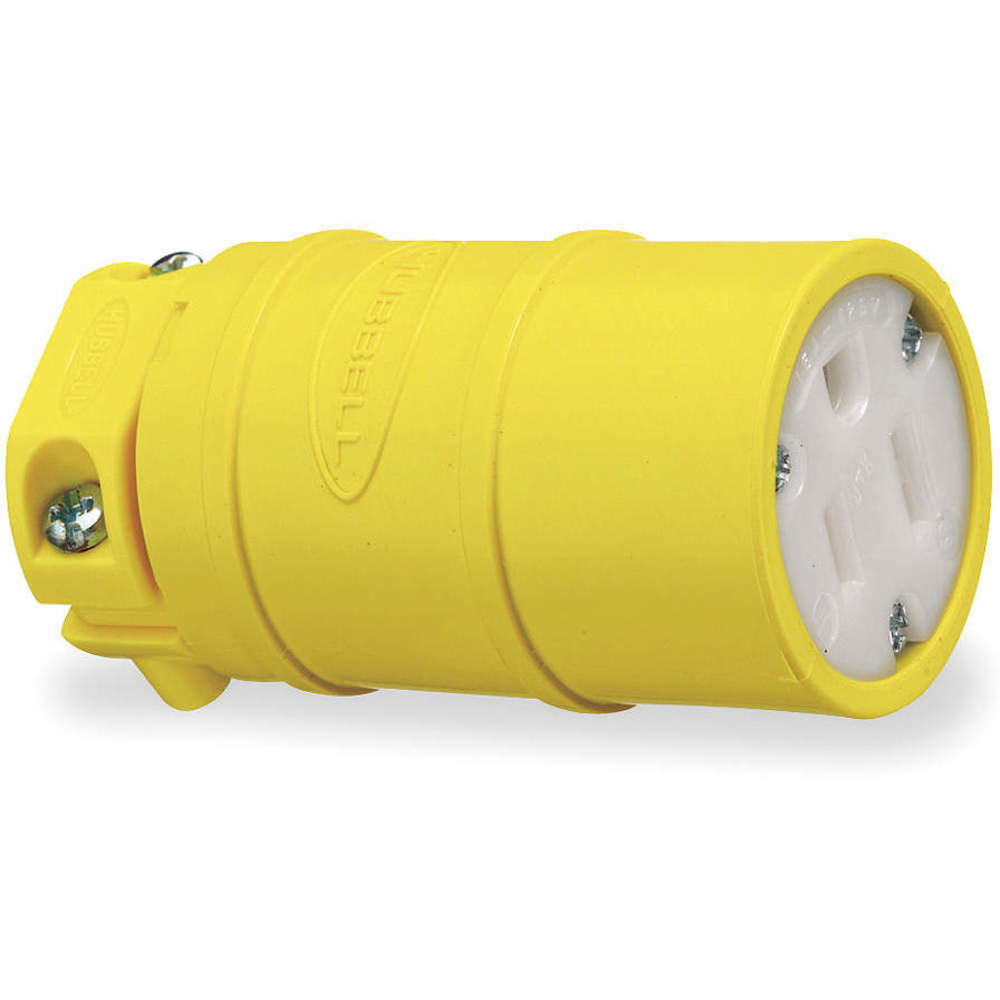

HBL1547 | 15A | 0.3" to 0.655" | NEMA 5-15R | NEMA 5-15R | 125V AC | Screw Terminals | Standard | Straight | €54.01 |
