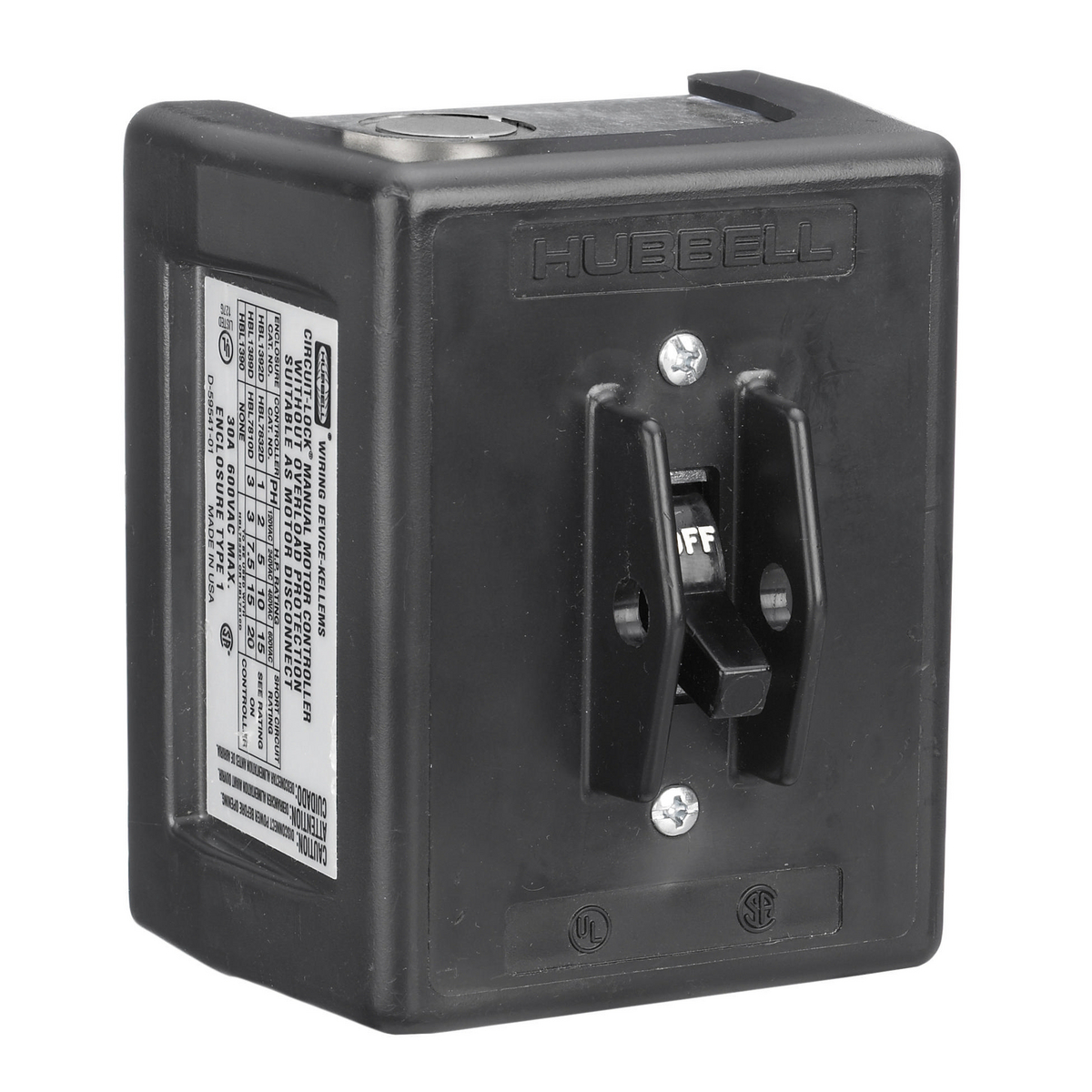

HUBBELL WIRING DEVICE-KELLEMS HBL1392 Manual Motor Switch, With Enclosure, 2 Pole, 30 A, 600 VAC, Black
Item: AB2LVAModel: HBL1392Cross Ref: 1MTD5
7 In Stock
Ships within 2 days via
10.00% off
€137.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Switch |
| Amps Rating | 30A |
| Construction | Fabricated |
| Depth | 3 2/5" |
| Dielectric Strength | Minimum 2200 VAC |
| Dimension | 4.52" x 3.97" x 3.43" |
| Dimension | 4.52 x 3.97 x 3.43" |
| Enclosure Material | Non Metallic |
| Height | 3.43" |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 208v Ac | Not Rated |
| Horsepower @ Three Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 480v Ac | Not Rated |
| Horsepower @ Three Phase - 600v Ac | Not Rated |
| Hp @ 1 Phase - 120v | 2 hp |
| Hub Diameter | 1/2" |
| Hub Type | Feed Through |
| Length | 4 13/25" |
| Max Current (ac) | 30A |
| Max. Hp | 15 hp |
| Max. Voltage | 600V AC |
| Maximum Operating Temperature | 167°F |
| Min. Number Of Cycles | 10000 |
| Minimum Operating Temperature | -40°F |
| Mounting Hole Diameter | 0.26" |
| Mounting Hole Distance - Height | 2.38" |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Operating Temp. | -75°C to -40°C |
| Operator | Toggle Switch |
| Operator | Toggle |
| Overall Depth | 3.43" |
| Overall Height | 3.43" |
| Overall Width | 3.97" |
| Phase | 1 |
| Phase Loss Sensitivity | No |
| Pilot Light | No |
| Product Datasheet | hubbell-wiring-device-kellems-hbl1392.pdf |
| Sensitivity | No |
| Series | Circuit-Lock |
| Starter Style | NEMA |
| Starter Type | NEMA |
| Wattage | 18000 W |
| Wattage | 18000 |
| Width | 3.97" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8.71 |
| Ship length (cm) | 11.48 |
| Ship width (cm) | 10.08 |
| HS code | 8536509040 |
| Country of Origin | US |
Product Details:
- Special Features: Plastic Housing
Documentation:
Product Variants
| Product | Model | Number Of Poles | Phase | Amps Rating | Enclosure Material | Height | Max. Hp | Wattage | Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBL1372 | 2 | 1 | 30A | Painted Steel | 3.15" | 20 hp | 18000 W | -75°C to -40°C | €175.86 | |
 |
HBL1379D | 3 | 3 | 30A | - | 3.15" | 15 hp | 18000 W | -75°C to -40°C | €354.83 | |
 |
HBL1389 | 3 | 3 | 30A | Non Metallic | 3 2/5" | 20 hp | 18000 W | -40°C to +60°C | €300.37 | |
 |
HBL13R22 | 2 | 1 | - | Non Metallic | 4.55" | 15 hp | 18000 W | -75°C to -40°C | €237.77 | |
 |
HBL13R23 | 3 | 3 | 30A | Non Metallic | 4.55" | 20 hp | 18000 W | -75°C to -40°C | €284.40 | |
 |
HBL7843D | 3 | 3 | 40A | - | 3.7" | 20 hp | 24000 W | -75°C to -40°C | €322.30 | |
 |
HBL7852D | 2 | 1 | 50A | - | 3.78" | 15 hp | 30000 W | -75°C to -40°C | €257.44 |
