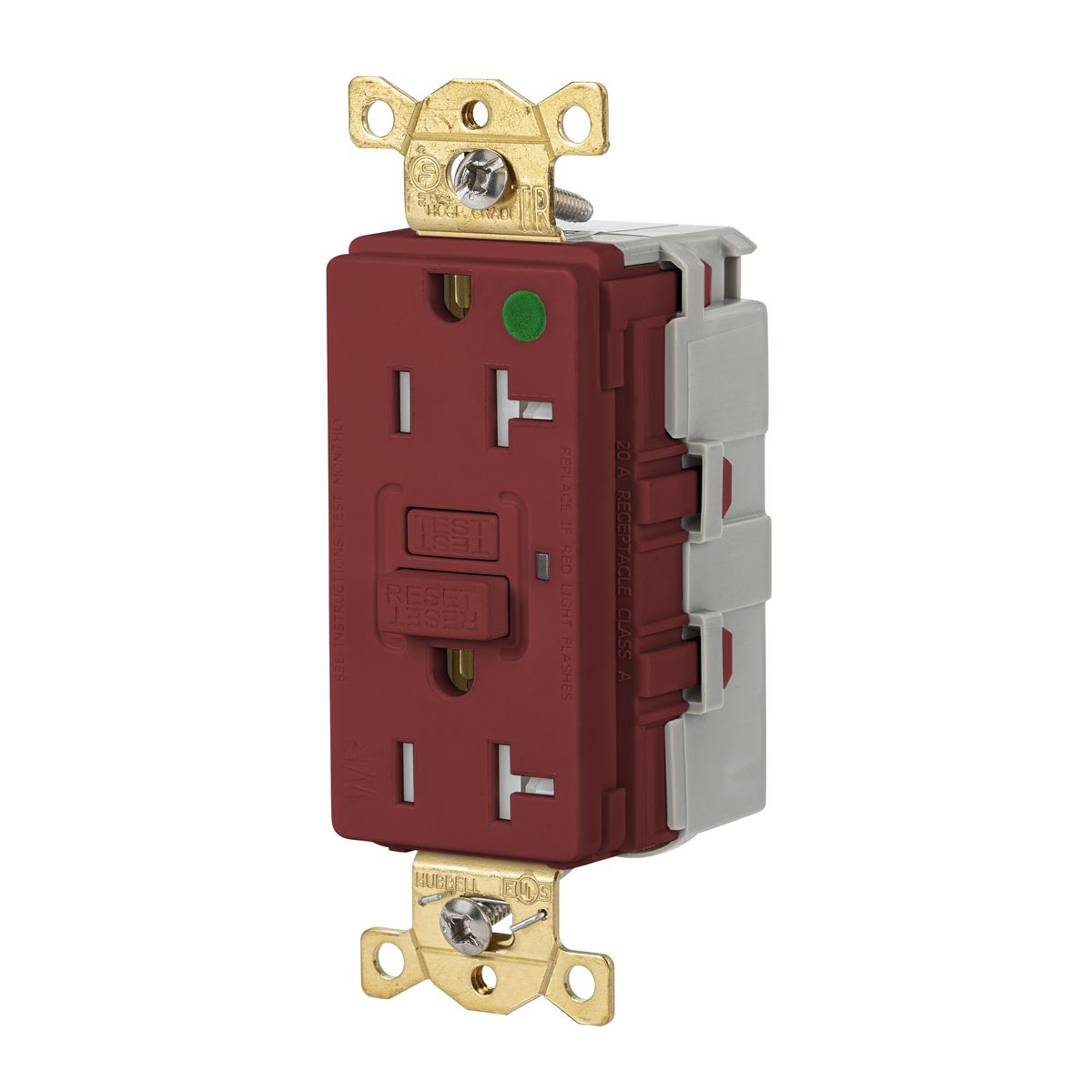

HUBBELL WIRING DEVICE-KELLEMS SNAPGFTW83R GFCI Receptacle, Heavy Use Hospital Grade, Decorator Duplex, 20A, Red
Item: BD3UKAModel: SNAPGFTW83RCross Ref: 45UE58
7 In Stock
Ships within 2 days via
10.00% off
€157.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | GFCI Receptacle |
| Afci | No |
| Amps | 20A |
| Color | Red |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2.8" |
| Gfci | Yes |
| Grade | Hospital Grade |
| Grounding | Grounded |
| Housing Color | Red |
| Includes | Mounting Hardware, Wall Plate |
| Includes Mounting Hardware | Yes |
| Material | Nylon |
| Max. Hp | 1 hp |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-snapgftw83r.pdf |
| Receptacle Type | Decorator Duplex |
| Reset Type | Manual |
| Resistance Property | General Purpose |
| Self Testing | Yes |
| Special Resistance Properties | Tamper Resistant, Weather Resistant |
| Standards | Nec |
| Surge Protection | No |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Width | 1.77" |
| Wire Connection Location | Back |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 3.73 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.5 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Amps | Nema Rating | Color | Phase | Current Rating | Reset Type | Grade | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAPGF83R | 20A | NEMA 5-20R | Red | 1 | 20A | Automatic | Hospital Grade Fed. Spec. | Red | €158.14 | |
 |
SNAPGF83BLK | 20A | NEMA 5-20R | Black | 1 | 20A | Automatic | Hospital Grade Fed. Spec. | Black | €195.47 | |
 |
SNAPGF83 | 20A | NEMA 5-20R | Brown | 1 | 20A | Automatic | Hospital Grade Fed. Spec. | Brown | €187.67 | |
 |
GFTRST83GYNL | 20A | NEMA 5-20R | Gray | Single | 20A | Automatic | Hospital Grade | Gray | €269.29 | |
 |
SNAPGF82W | 15A | NEMA 5-15R | White | 1 | 15A | Automatic | Hospital Grade Fed. Spec. | White | €187.51 | |
 |
GFTR83NL | 20A | NEMA 5-20R | Brown | Single | 20A | Automatic | Hospital Grade | Brown | €233.20 | |
 |
GFTRST83RNL | 20A | NEMA 5-20R | Red | Single | 20A | Automatic | Hospital Grade | Red | €204.74 |
