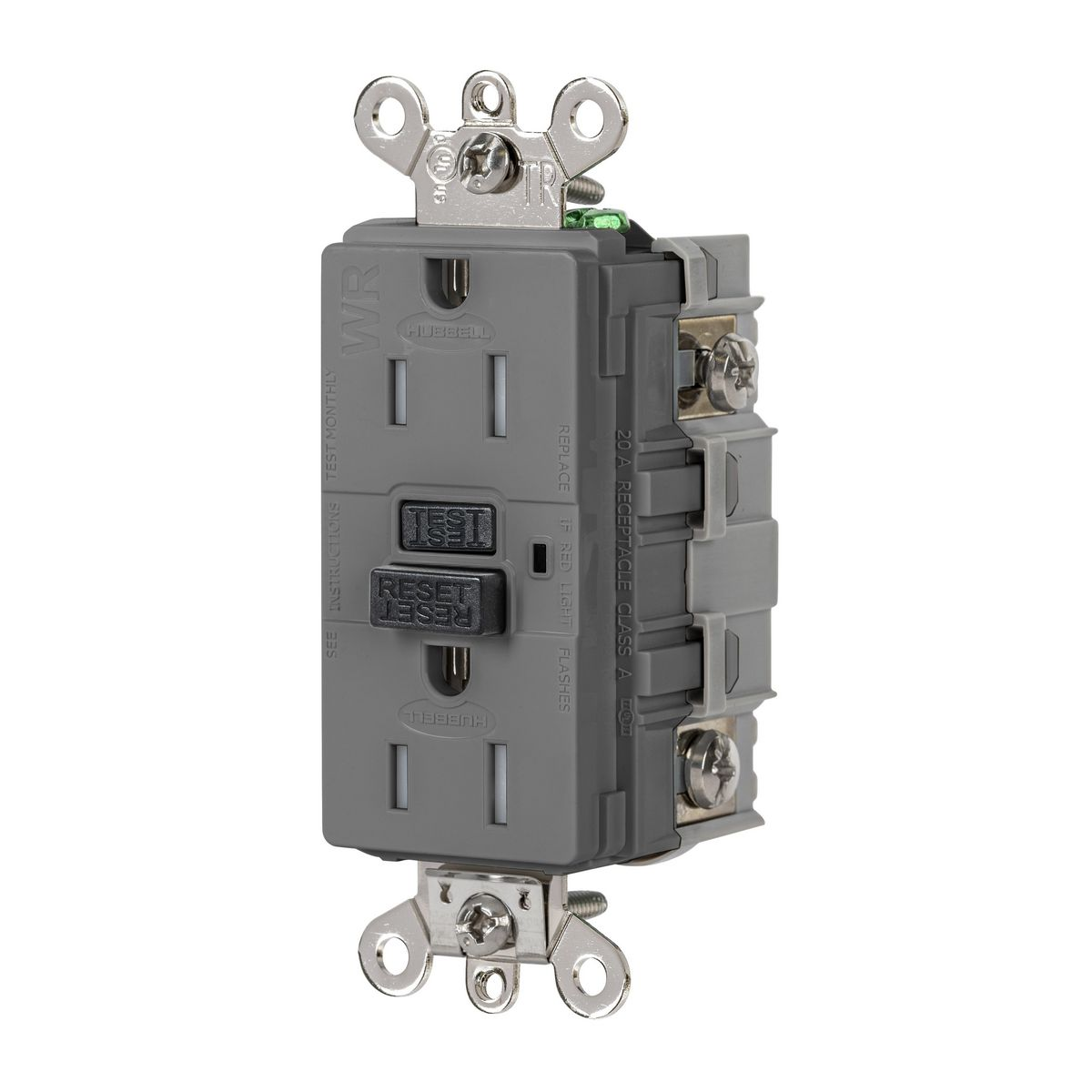

HUBBELL WIRING DEVICE-KELLEMS GFSG5262GRY Gfci Receptacle, 15A 125V Ground Fault Receptacle, Gray
Item: BD4CRKModel: GFSG5262GRYCross Ref: 21VK83
7 In Stock
Ships within 2 days via
5.00% off
€306.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | GFCI Receptacle |
| Afci | No |
| Amps | 15A |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Nickel-Plated Brass |
| Cover Type | No Cover |
| Face Plate Height | 2.8" |
| Face Plate Width | 1 4/5" |
| Gfci | Yes |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Gray |
| Housing Material | Nylon |
| Hp | 1/2 hp |
| Included | Matching Nylon, Stainless Wall Plate, Mounting Hardware |
| Included Mounting Hardware | Yes |
| Max. Operating Temp. | 150.8°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -31°F |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wall Plates Included | 1 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-gfsg5262gry.pdf |
| Receptacle Type | Duplex |
| Reset Type | Automatic |
| Self Testing | Yes |
| Signal & Power Protection | GFCI |
| Special Resistance Properties | Impact Resistant, Tamper Resistant, Weather Resistant |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-0 |
| Voltage | 125V AC |
| Wall Plate Material | Stainless Steel |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.2 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 5.59 |
| Country of Origin | CN |
Product Details:
- Industrial Grade,Tamper-Resistant, Weather-Resistant
Documentation:
Product Variants
| Product | Model | Amps | Voltage | Nema Rating | Outlet Type | Color | Hp | Housing Color | Wire Connection Location | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFSG5262BLK | 15A | 125V AC | - | Duplex | Black | 1/2 hp | Black | Back, Side | 1 | €330.85 | |
 |
GFSG5262I | 15A | 125V AC | - | Duplex | Ivory | 1/2 hp | Ivory | Back, Side | 1 | €355.81 | |
 |
GFSG5262W | 15A | 125V AC | - | Duplex | White | 1/2 hp | White | Back, Side | 1 | €342.31 | |
 |
GFSG5362 | 20A | 125V AC | - | Duplex | Brown | 1 hp | Brown | Back, Side | 1 | €380.09 | |
 |
GFSG5362GRY | 20A | 125V AC | - | Duplex | Gray | 1 hp | Gray | Back, Side | 1 | €359.97 | |
 |
GFSG5362I | 20A | 125V AC | - | Duplex | Ivory | 1 hp | Ivory | Back, Side | 1 | €372.54 | |
 |
GFSG5362W | 20A | 125V AC | - | Duplex | White | 1 hp | White | Back, Side | 1 | €379.61 |
