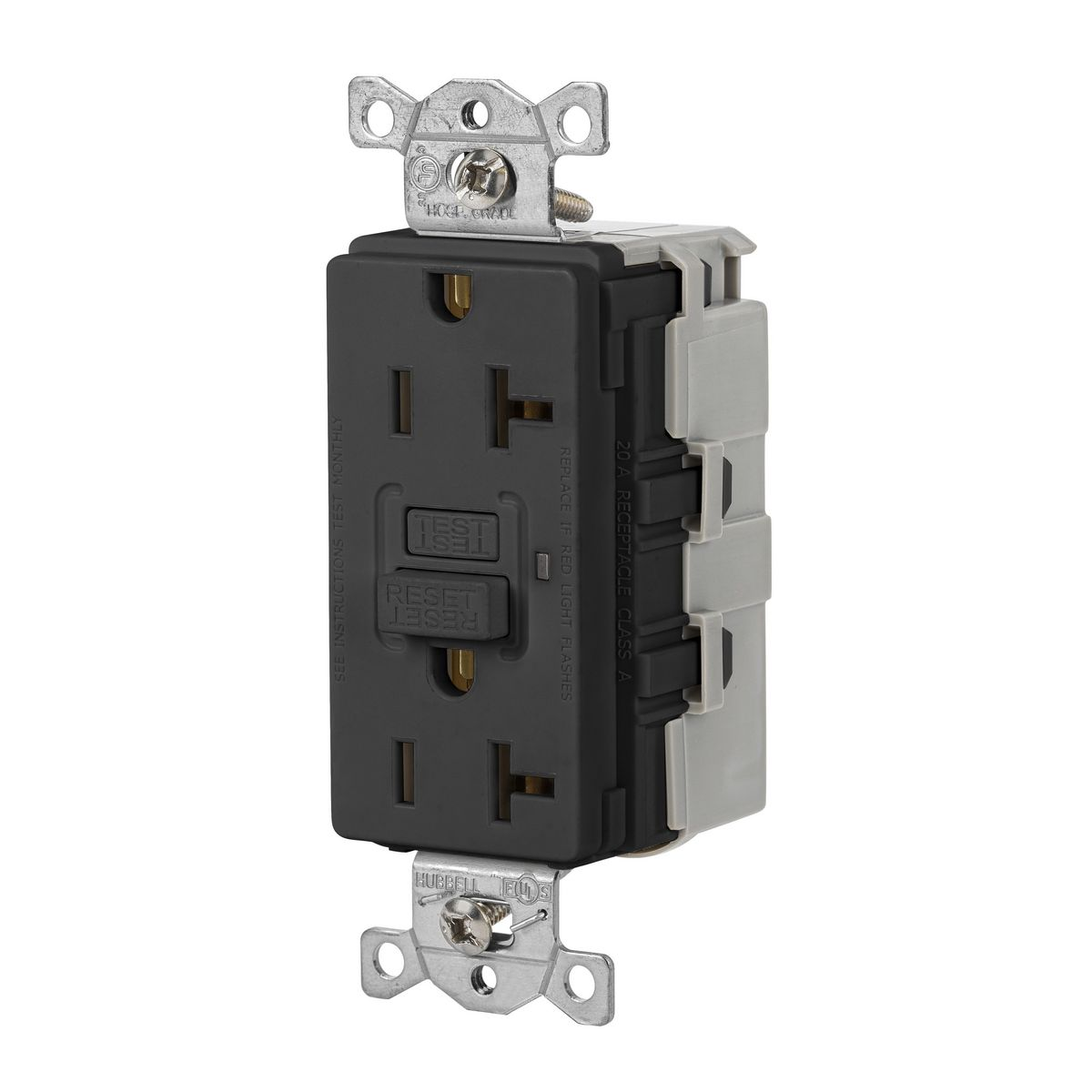

HUBBELL WIRING DEVICE-KELLEMS SNAPGF20BLK GFCI Receptacle, Industrial, Decorator Duplex, Flush Mount, 20A
Item: BD3VADModel: SNAPGF20BLKCross Ref: 45UD72
7 In Stock
Ships within 2 days via
10.00% off
€108.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | GFCI Receptacle |
| Afci | No |
| Amps | 20A |
| Color | Black |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2.8" |
| Face Plate Width | 1 4/5" |
| Gfci | Yes |
| Grade | General Use |
| Grounding | Grounded |
| Horsepower Rating | 1 hp |
| Housing Color | Black |
| Housing Material | Nylon |
| Includes | Mounting Hardware, Wall Plate |
| Includes Mounting Hardware | Yes |
| Material | Nylon |
| Maximum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1.5" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-snapgf20blk.pdf |
| Receptacle Type | Decorator Duplex |
| Reset Type | Automatic |
| Self Testing | Yes |
| Standards | Nec |
| Surge Protection | No |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Width | 1.77" |
| Wire Connection Location | Back |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
| Wire Size | 12 AWG |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.73 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 4.5 |
| Country of Origin | CN |
Product Details:
- Straght Blade Device, Snap-Connect, Weather And Tamper-Resistant, Autoguard, Self Test
Documentation:
Product Variants
| Product | Model | Amps | Voltage | Nema Rating | Outlet Type | Color | Phase | Reset Type | Current Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFSG5262BLK | - | 125V AC | - | Duplex | Black | Single | Automatic | 15A | 1 | €330.85 | |
 |
GFR5262SGGY | 15A | 125V AC | NEMA 5-15R | Duplex | Gray | 1 | Reset After Trip | - | 1 | €326.29 | |
 |
GFSG5262I | - | 125V AC | - | Duplex | Ivory | Single | Automatic | 15A | 1 | €355.81 | |
 |
GFSG5262W | - | 125V AC | - | Duplex | White | Single | Automatic | 15A | 1 | €342.31 | |
 |
GFSG5362 | - | 125V AC | - | Duplex | Brown | Single | Automatic | 20A | 1 | €380.09 | |
 |
GFSG5362GRY | - | 125V AC | - | Duplex | Gray | Single | Automatic | 20A | 1 | €359.97 | |
 |
GFSG5362I | - | 125V AC | - | Duplex | Ivory | Single | Automatic | 20A | 1 | €372.54 |
