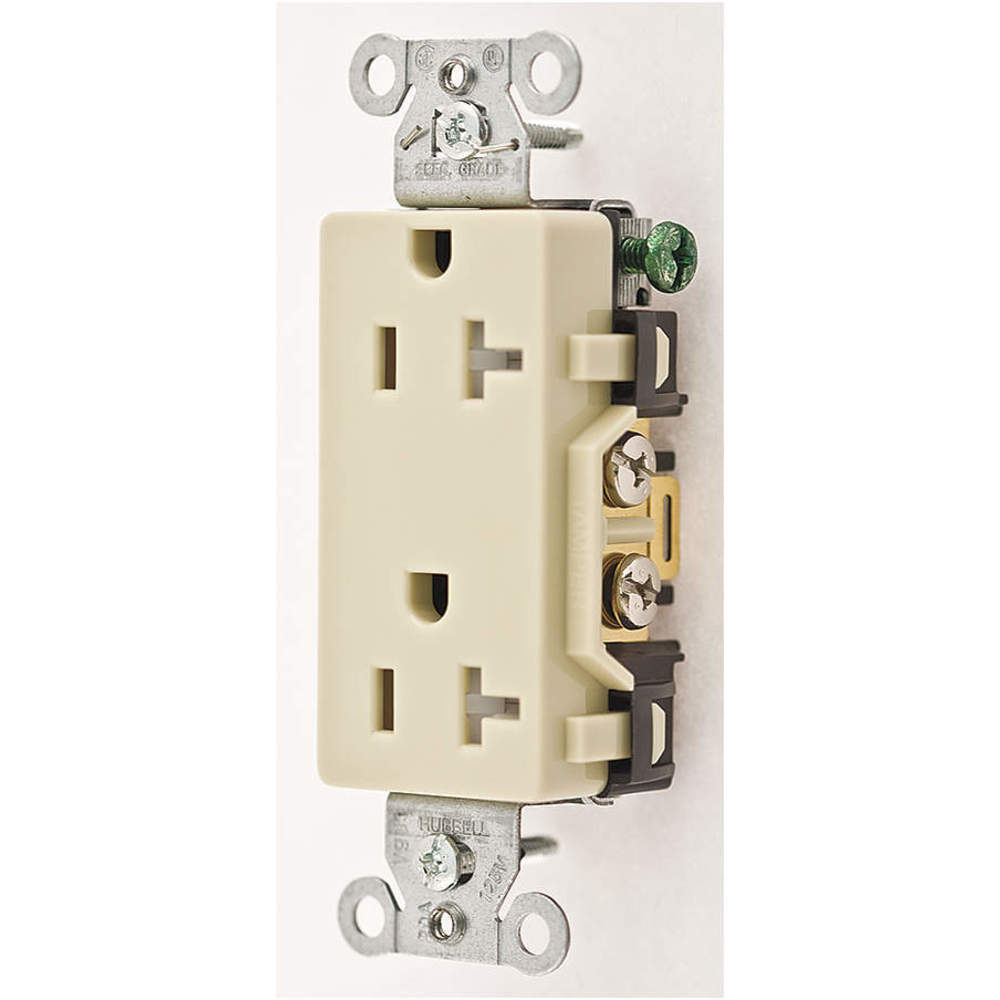

HUBBELL WIRING DEVICE-KELLEMS DR20ITR Straight Receptacle, Duplex, 20A 125V, Ivory
Item: AD7PKGModel: DR20ITRCross Ref: 4FTZ7
7 In Stock
Ships within 2 days via
10.00% off
€23.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Application Environment | Commercial Environments |
| Color | Ivory |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1.29" |
| Horsepower Rating | 1 hp |
| Housing Color | Ivory |
| Housing Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Material | Nylon |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-center Height | 2.7" |
| Mount Hole Center-to-center Width | 1.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Decorator Duplex |
| Overall Depth | 1.3" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Prod. Description | Tamper Resistant And Smooth Face |
| Product Datasheet | hubbell-wiring-device-kellems-dr20itr.pdf |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Tamper Resistant |
| Standards | Csa Certified C22.2, Nema Wd-6, Ul 498 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 2500 W |
| Weather Resistant | No |
| Width | 1.14" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 12 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 2.9 |
| HS code | 8536698000 |
| Country of Origin | CN |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Grade | Housing Color | Wire Size | Color | Height | Phase | Number Of Poles | Number Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DR20 | Federal Specification | Brown | 12 AWG to 10 AWG | Brown | 1.29" | 1 | 2 | 3 | €17.53 | |
 |
DR20BLK | Federal Specification | Black | 12 AWG to 10 AWG | Black | 1.29" | 1 | 2 | 3 | €17.38 | |
 |
DR20GRY | Federal Specification | Gray | 12 AWG to 10 AWG | Gray | 1.29" | 1 | 2 | 3 | €18.37 | |
 |
DR20I | Federal Specification | Ivory | 12 AWG to 10 AWG | Ivory | 1.29" | 1 | 2 | 3 | €23.06 | |
 |
DR20LA | Federal Specification | Light Almond | 12 AWG to 10 AWG | Almond | 1.29" | 1 | 2 | 3 | €17.75 | |
 |
DR20WHI | Federal Specification | White | 12 AWG to 10 AWG | White | 1.29" | 1 | 2 | 3 | €19.24 | |
 |
DR20BLKTR | Federal Specification | Black | 12 AWG to 10 AWG | Black | 1.29" | 1 | 2 | 3 | €25.81 |
