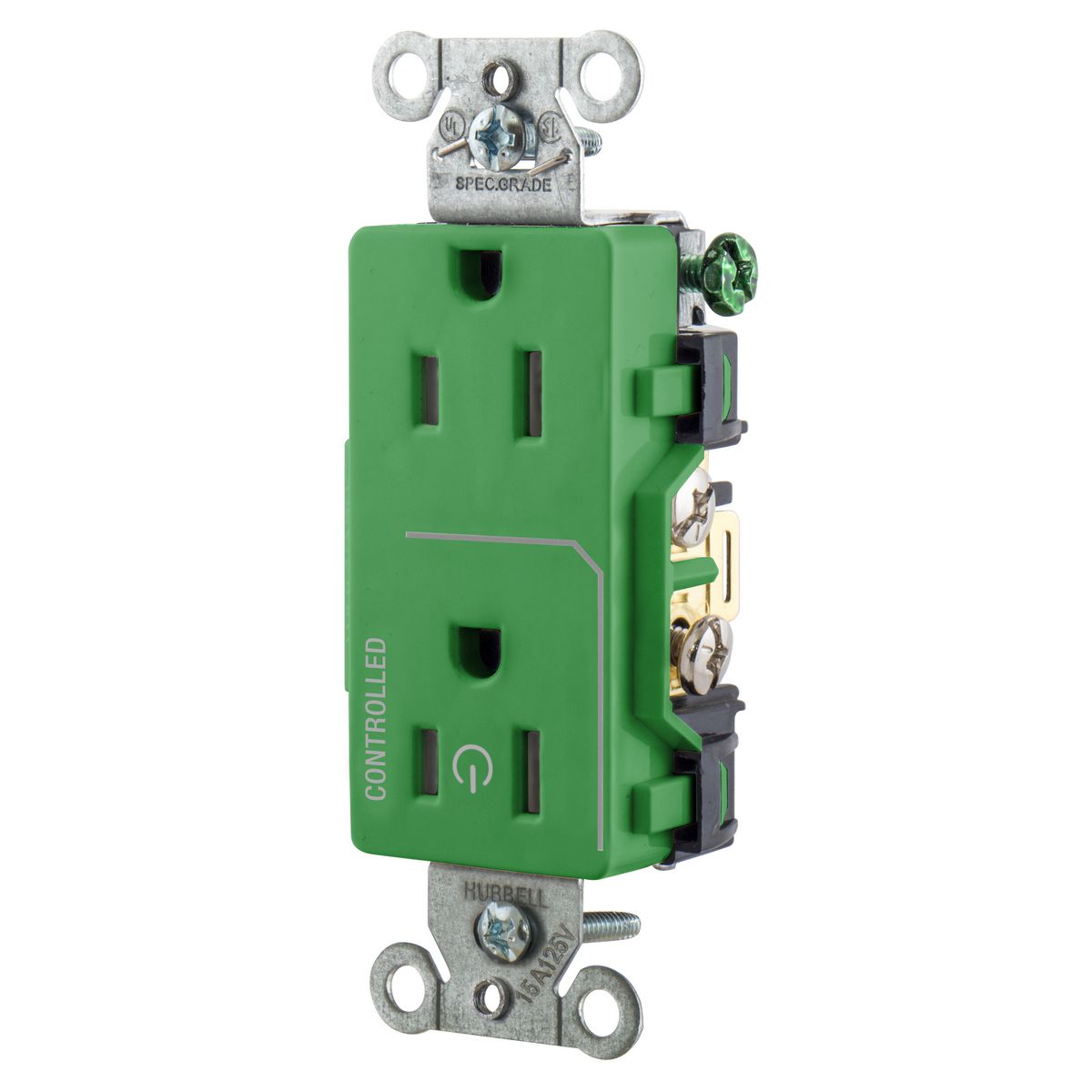

HUBBELL WIRING DEVICE-KELLEMS DR15C1GN Straight Receptacle, 15A 125V, 2P - 3W Grounding, 5-15R, Green
Item: BD4MQJModel: DR15C1GN
7 In Stock
Ships within 2 days via
€19.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Color | Green |
| Connectivity | Back And Side Wired |
| Dielectric Strength | Withstands 2,000V minimum |
| Height | 3 7/25" |
| Length | 1 8/25" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Nema Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Product Datasheet | hubbell-wiring-device-kellems-dr15c1gn.pdf |
| Voltage | 125V |
| Width | 0.83" |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 3.35 |
| Ship width (cm) | 2.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color | Wire Size | Number Of Poles | Number Of Wires | Nema Rating | Amps | Material | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DR15C1 | Brown | 14 AWG to 10 AWG | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | €19.74 | |
 |
DR15C1BL | Blue | 14 AWG to 10 AWG | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | - | RFQ
|
 |
DR15C1BLK | Black | 14 AWG to 10 AWG | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | €19.74 | |
 |
DR15C1BLKTR | Black | 12 AWG to 10 AWG | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | €22.96 | |
 |
DR15C1BLTR | Blue | 12 AWG to 10 AWG | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | €22.96 | |
 |
DR15C1GNTR | Green | - | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | €22.96 | |
 |
DR15C1GRY | Gray | 14 AWG to 10 AWG | 2 | 3 | NEMA 5-15R | 15A | Nylon | 125V | €19.74 |
