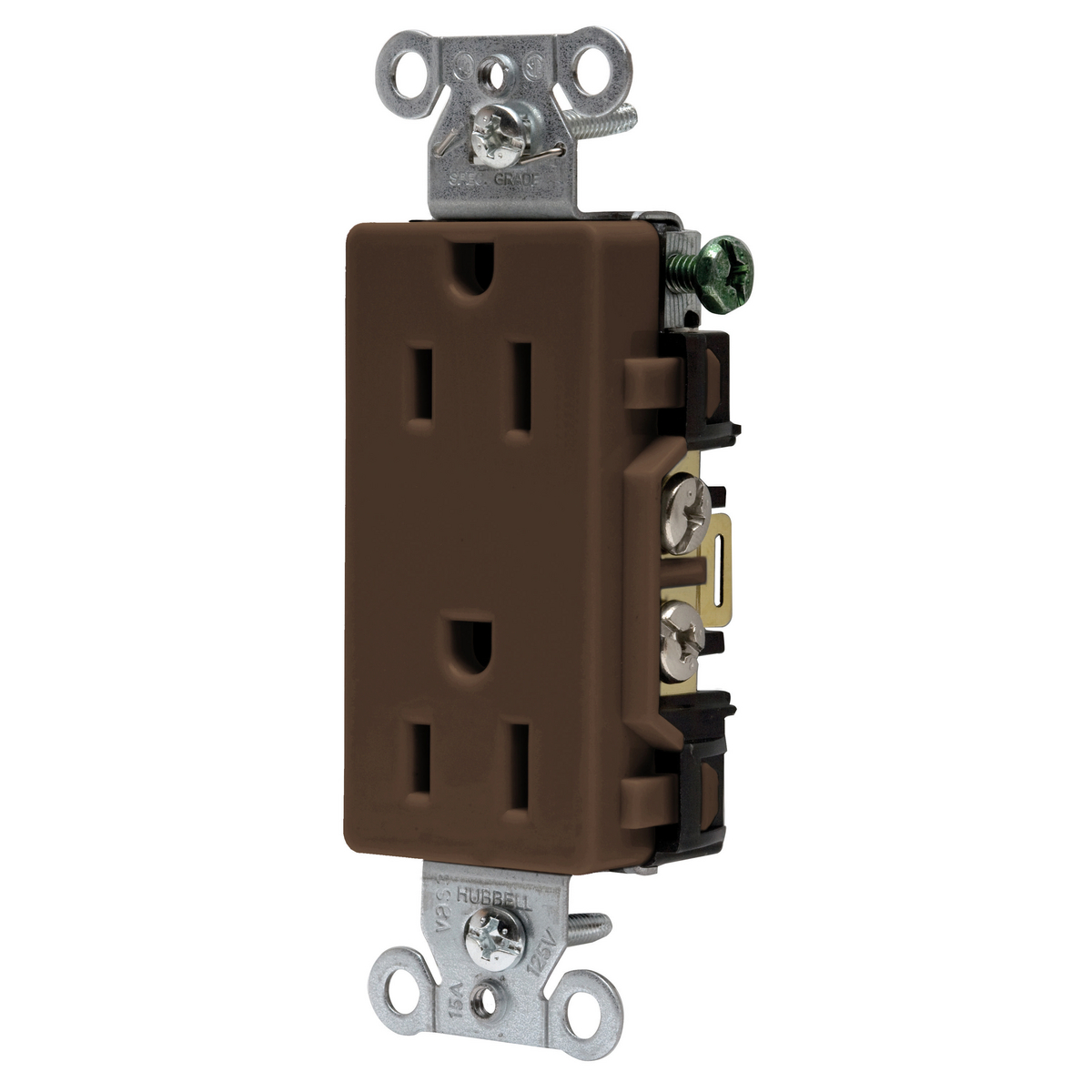

HUBBELL WIRING DEVICE-KELLEMS DR15 Straight Receptacle, Duplex, 15A 125V, Brown
Item: AC8UKPModel: DR15Cross Ref: 3DVU1
7 In Stock
Ships within 2 days via
10.00% off
€12.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Commercial Environments |
| Color | Brown |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 3 7/25" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Brown |
| Housing Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 1.29" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 2.7" |
| Mount Hole Center-to-center Width | 1.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Decorator Duplex |
| Overall Depth | 3.3" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-dr15.pdf |
| Receptacle Type | Decorator Duplex |
| Standards | Csa Certified C22.2, Federal Specification W-C-596, Nema Wd-6, Ul 498 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.06" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 3.28 |
| Ship width (cm) | 2.69 |
| HS code | 8536490080 |
| Country of Origin | CN |
Product Details:
- 2-Pole 3-Wire Grounding
Documentation:
Product Variants
| Product | Model | Housing Color | Wire Size | Color | Height | Number Of Poles | Number Of Wires | Phase | Receptacle Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DR15BLK | Black | 14 AWG to 10 AWG | Black | 3 7/25" | 2 | 3 | 1 | Decorator Duplex | €13.31 | |
 |
DR15GRY | Gray | 14 AWG to 10 AWG | Gray | 3 7/25" | 2 | 3 | 1 | Decorator Duplex | €13.66 | |
 |
DR15I | Ivory | 14 AWG to 10 AWG | Ivory | 3 7/25" | 2 | 3 | 1 | Decorator Duplex | €13.59 | |
 |
DR15WHI | White | 14 AWG to 10 AWG | White | 3 7/25" | 2 | 3 | 1 | Decorator Duplex | €13.69 | |
 |
DR15WHITR | White | 14 AWG to 10 AWG | White | 3 7/25" | 2 | 3 | 1 | Decorator Duplex | €24.15 | |
 |
DR15WRTR | - | 14 AWG to 10 AWG | Brown | 3 7/25" | 2 | 3 | 1 | - | €28.15 | |
 |
DR15GRYTRP2 | - | 12 AWG | Gray | 3 7/25" | 2 | 3 | 1 | - | €25.22 |
