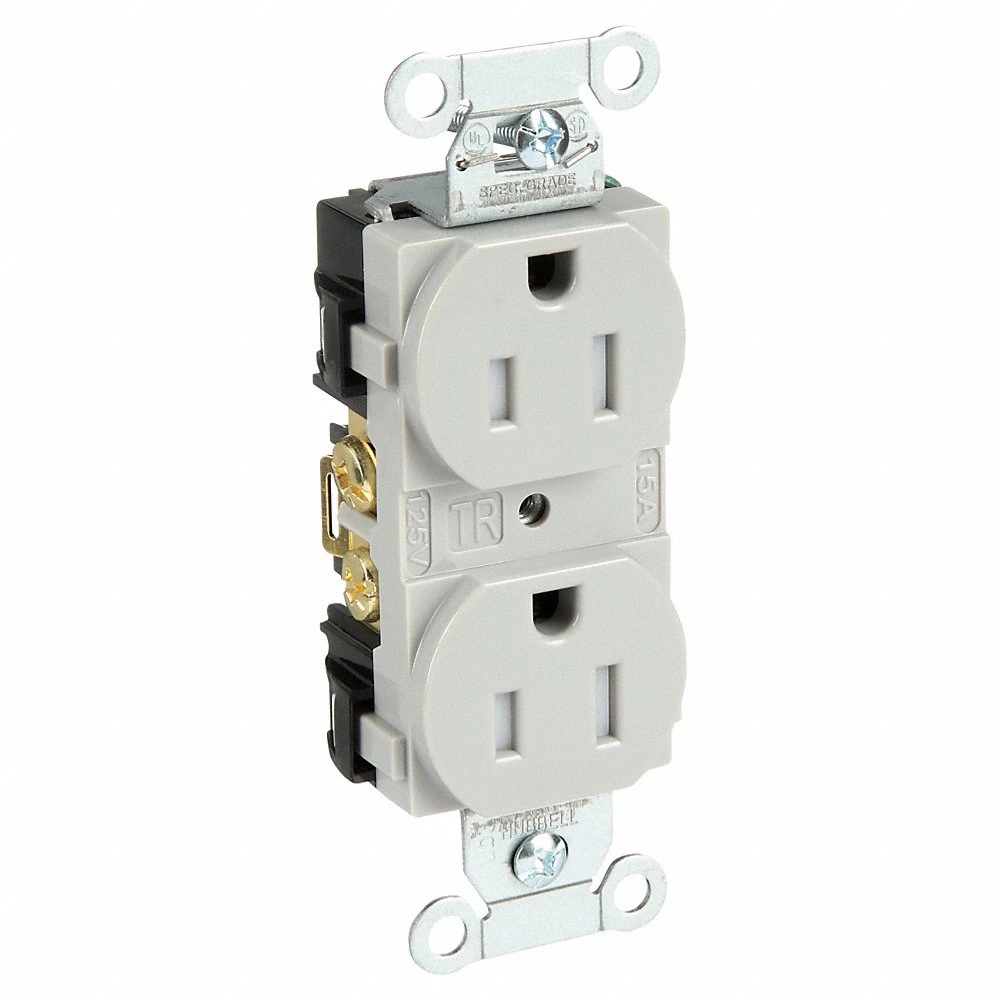

HUBBELL WIRING DEVICE-KELLEMS BR15GRYTR Straight Receptacle, Duplex, 2-Pole 3- Wire Grounding, 15A 125V, Gray
Item: AC2AJWModel: BR15GRYTRCross Ref: 2HDZ3
7 In Stock
Ships within 2 days via
10.00% off
€15.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Application Environment | Commercial Environments |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Height | 1 4/25" |
| Horsepower Rating | 1/2 hp |
| Housing Color | Gray |
| Housing Material | Nylon |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Length | 3.3" |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Maximum Operating Temperature | 167°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | 1 |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Outlet Type | Duplex |
| Overall Depth | 1.2" |
| Phase | 1 |
| Polarized | Yes |
| Power Indicator | No |
| Product Datasheet | hubbell-wiring-device-kellems-br15grytr.pdf |
| Receptacle Type | Duplex |
| Special Resistance | Tamper Resistant |
| Standards | Csa Certified C22.2, Nema Wd-6, Ul 498 File E2186 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Weather Resistant | No |
| Width | 1.58" |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
| Wiring Method | Back And Side |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.95 |
| Ship length (cm) | 8.38 |
| Ship width (cm) | 4.01 |
| HS code | 8536698000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Grade | Receptacle Type | Wire Connection Location | Housing Color | Wire Size | Color | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CR15 | Federal Specification | Duplex | Side | Brown | 14 AWG to 10 AWG | Brown | 3 7/25" | Flush | €4.69 | |
 |
BR15 | Federal Specification | Duplex | Back, Side | Brown | 14 AWG to 10 AWG | Brown | 1.07" | Flush | €8.70 | |
 |
BR15BLK | Federal Specification | Duplex | Back, Side | Black | 14 AWG to 10 AWG | Black | 1.07" | Flush | €9.04 | |
 |
BR15GRY | Federal Specification | Duplex | Back, Side | Gray | 14 AWG to 10 AWG | Gray | 1.1" | Flush | €7.98 | |
 |
BR15I | Federal Specification | Duplex | Back, Side | Ivory | 14 AWG to 10 AWG | Ivory | 1.1" | Flush | €9.97 | |
 |
BR15WHI | Federal Specification | Duplex | Back, Side | White | 14 AWG to 10 AWG | White | 1.1" | Flush | €10.46 | |
 |
CR15TR | Federal Specification | Duplex | Side | Brown | 14 AWG to 10 AWG | Brown | 3 7/25" | Flush | €14.13 |
