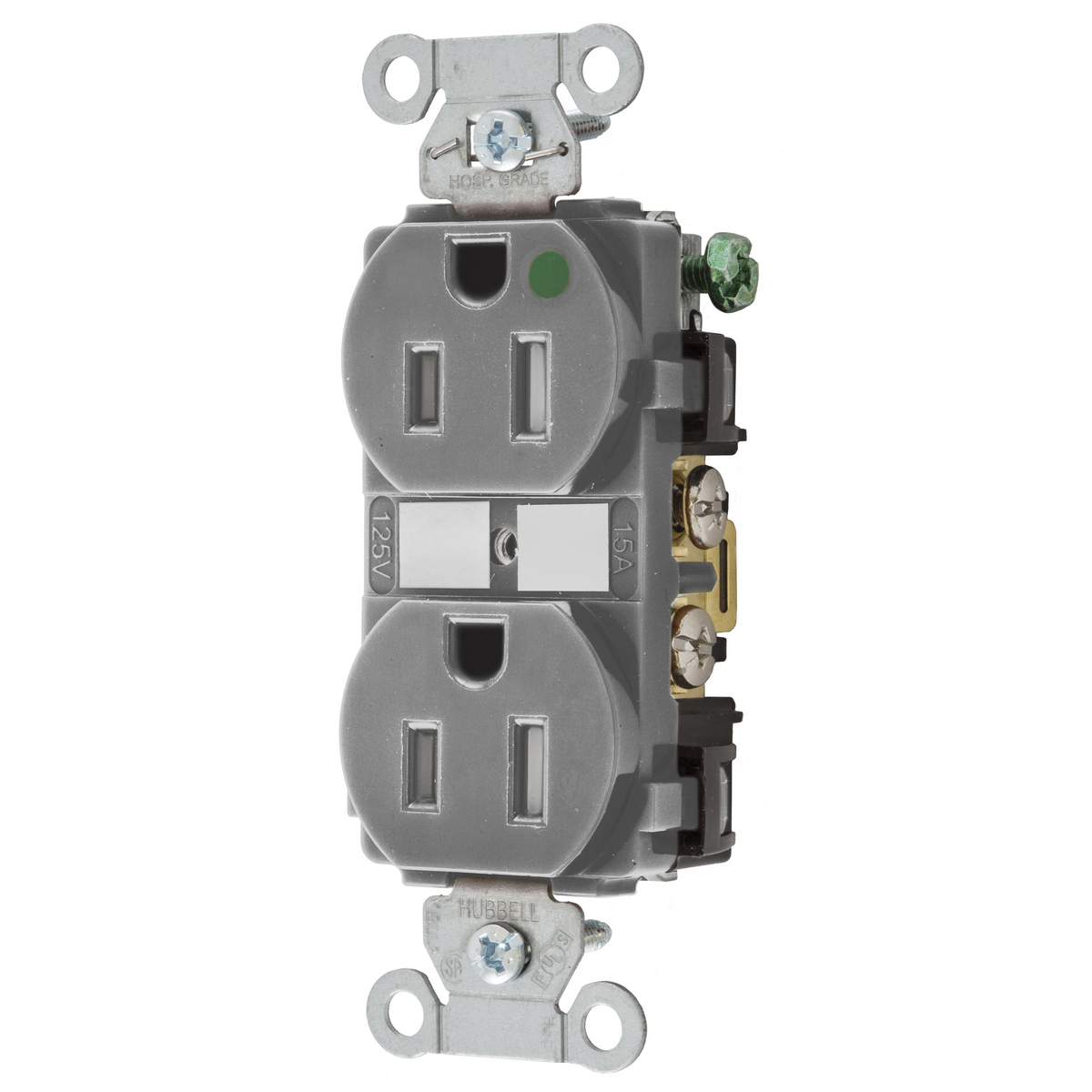

HUBBELL WIRING DEVICE-KELLEMS 8200GYTRA Receptacle, Commercial, Standard Duplex, Flush Mount, 15A, 125V AC, Gray
Item: BD4MPPModel: 8200GYTRACross Ref: 49YL27
7 In Stock
Ships within 2 days via
10.00% off
€44.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Amps Rating | 15A |
| Color | Gray |
| Connection Orientation | Straight |
| Connectivity | Back And Side Wired |
| Cover Type | No Cover |
| Current Rating | 15A |
| Dielectric Strength | Withstands 2,000V minimum |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec. |
| Grounding | Grounded |
| Housing Color | Gray |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate Or Weatherproof Cover |
| Includes Mounting Hardware | Yes |
| Ip Rating | IP20 |
| Material | Nylon |
| Max. Hp | 1/2 hp |
| Mount Hole Center-to-center Height | 3.3" |
| Mount Type | Flush |
| Mounting Type | Screws |
| Nema Rating | 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Number Of Gangs | 1 |
| Overall Height | 1.15" |
| Overall Length | 3 7/25" |
| Overall Width | 1.57" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-wiring-device-kellems-8200gytra.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Standards | Csa Certified C22.2, Federal Specification W-C-596, Nema Wd-6, Ul 498 |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wattage | 1875 W |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Wire Connection Types | Screw Terminals |
| Wire Size | 14 AWG to 10 AWG |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.92 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.99 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage Rating | Color | Nema Rating | Phase | Amps Rating | Housing Material | Wire Size | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNAP5362LAA | 125V AC | Almond | 5-20R | 1 | 20A | Nylon | 12 AWG | 125V AC | €33.86 | |
 |
SNAP8200RA | - | Red | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €41.22 | |
 |
SNAP8200WA | 125V AC | White | 5-15R | 1 | 15A | - | 12 AWG | 125V AC | €44.25 | |
 |
HBL53CM62 | 125V AC | Yellow | - | 1 | - | Nylon (Face) | - | - | €112.28 | |
 |
IG5262I | 125V AC | Ivory | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €72.90 | |
 |
SR50 | 125/250V AC | Yellow | - | 1 | - | - | 6 AWG | - | €609.19 | |
 |
IG15DR | 125V AC | Orange | 5-15R | 1 | 15A | Nylon | 14 AWG to 10 AWG | 125V AC | €26.52 |
