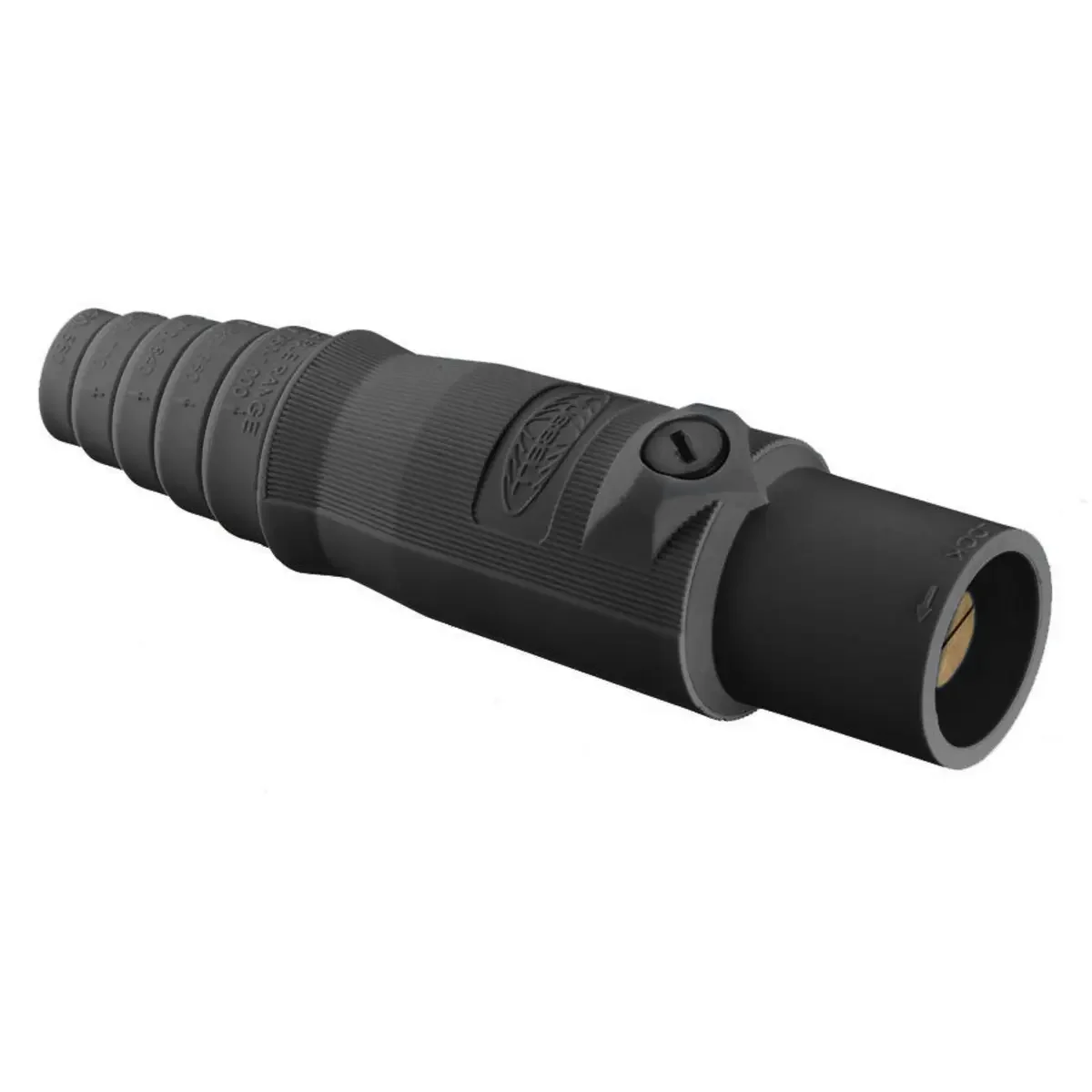

HUBBELL - BRYANT HBL300MBK Male Plug, Single Conductor, 300 A, Black
Item: AC3WZHModel: HBL300MBKCross Ref: 2XB30
7 In Stock
Ships within 2 days via
5.00% off
€92.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Plug |
| Amps | 300A |
| Cable Range | 6 AWG to 2/0 AWG |
| Cable Size | 0.46" to 1.02" |
| Cable Size Range (in.) | 0.46 to 1.02 |
| Color | Black |
| Compatible With Series | 15, 16, Insulgrip |
| Conductor Material | Brass |
| Contact Material | Brass |
| Contact Type | Single Cam |
| End Type | Taper Nose |
| Housing Color | Black |
| Housing Material | Thermoplastic Elastomer |
| Male/female | Male |
| Material | TPE |
| Nema Enclosure Rating | Nema 3R, Nema 4X, Nema 12 |
| Nema Rating | NEMA 3R, NEMA 4X, NEMA 12K |
| Overall Length | 7.01" |
| Overall Width | 1.95" |
| Product Datasheet | hubbell-wiring-device-kellems-hbl300mbk.pdf |
| Single Pole Device Style | Taper Nose |
| Terminal Connection | Double Set Screw |
| Terminal Connection Type | Double Set Screw |
| Type | Single Pole Device |
| Ul 94 Flammability Rating | HB |
| Voltage | 250V DC/600V AC |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 17.81 |
| Ship width (cm) | 4.95 |
| HS code | 8536904000 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Color | Conductor Material | Dia. | Amps | Voltage | No. Of Conductors | Jacket Type | Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H320P | Black, Gray | - | - | - | - | - | - | - | 1 | €22.97 | |
 |
HBLRF400MW | - | - | - | 400A | 600V | - | - | Plugs | 1 | €116.60 | |
 |
HBLRF400MY | - | - | - | 400A | 600V | - | - | Plugs | 1 | €116.60 | |
 |
HBLRF400MGN | - | - | - | 400A | 600V | - | - | Plugs | 1 | €116.60 | |
 |
HBLRF300MR | - | - | - | 300A | 600V | - | - | Plugs | 1 | €116.60 | |
|
HBLRF300MY | - | - | - | 300A | 600V | - | - | Plugs | 1 | €116.60 | |
 |
HBLRFMBBN | - | - | - | 300/400A | 600V | - | - | Plugs | 1 | €66.15 |
