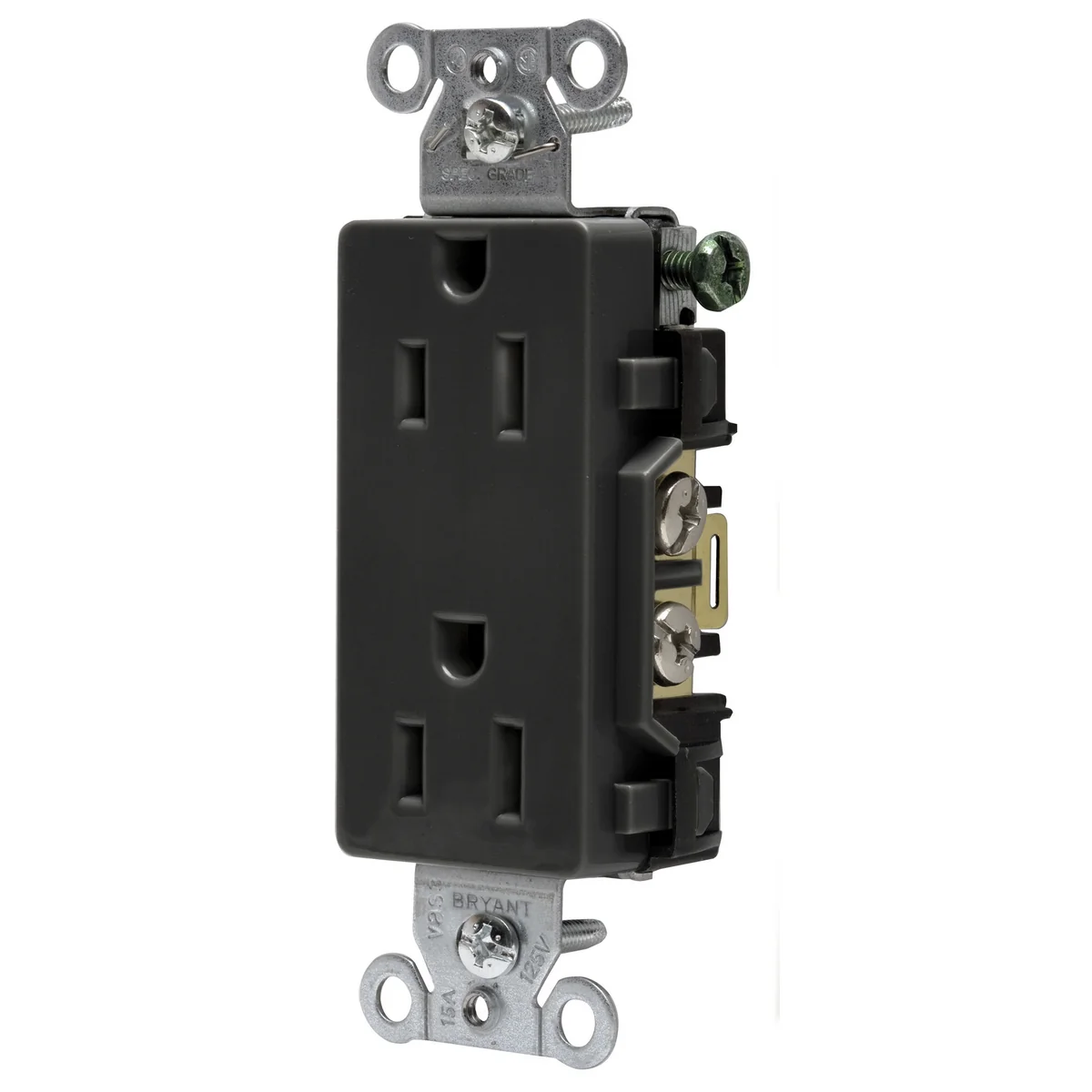

HUBBELL - BRYANT DRS15BLK Receptacle, Decorator Duplex, 5-15R, 15 A, 125V AC, Black, 2 Poles, Screw Terminals
Item: CP8XTUModel: DRS15BLKCross Ref: 52HD97
7 In Stock
Ships within 2 days via
13.00% off
€5.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Body Material | Composite |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Depth | 1.07" |
| Face Plate Height | 2.7" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Black |
| Hp | 1/2 hp |
| Included | Mounting Hardware |
| Included Mounting Hardware | Yes |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Mount Hole Center To Center Height | 4.1" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 1.1" |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-bryant-drs15blk.pdf |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Impact Resistant |
| Surge Protection | No |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.72 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.51 |
