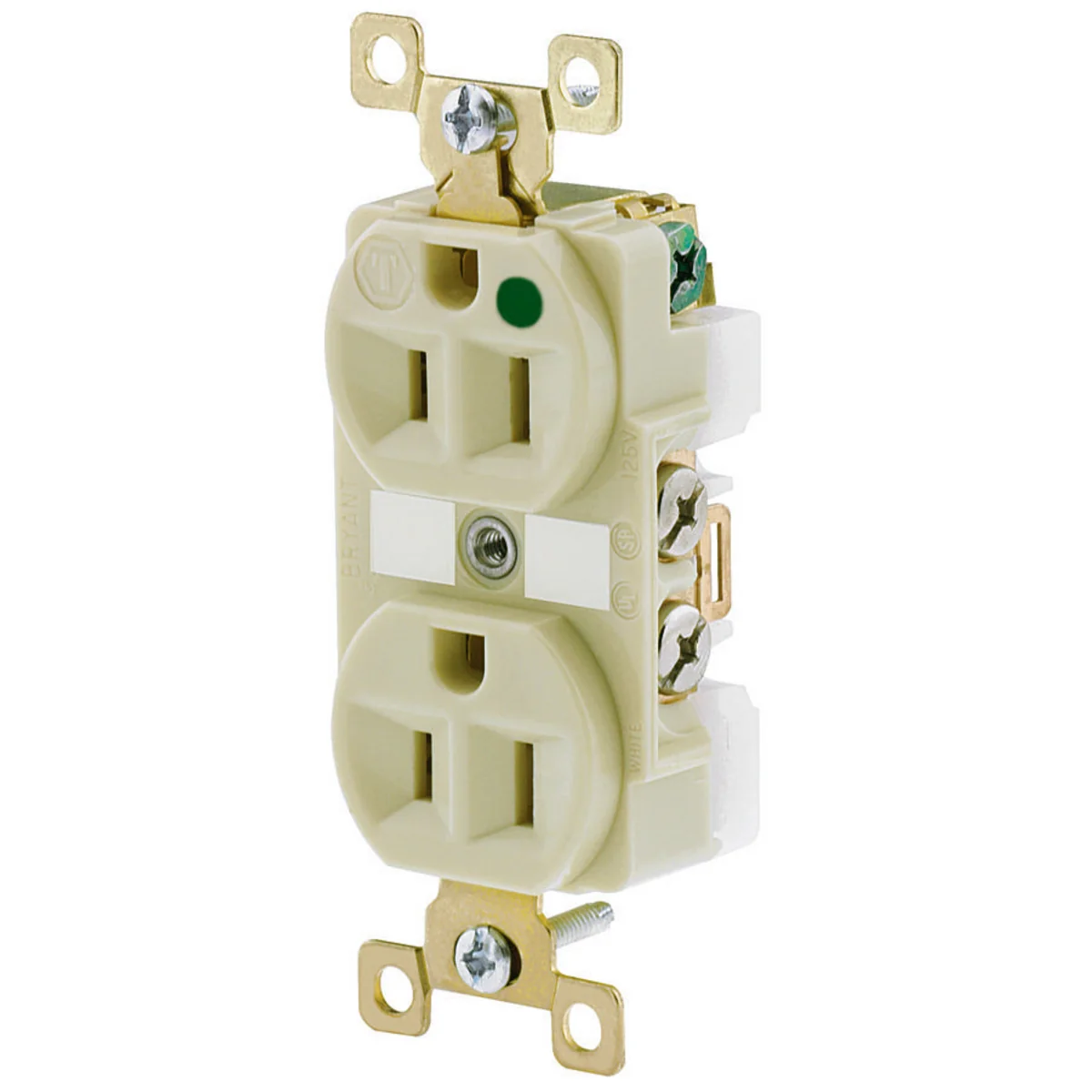

HUBBELL - BRYANT BRY8200I Receptacle, Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Screw Terminals
Item: CQ2EWXModel: BRY8200ICross Ref: 52HD41
7 In Stock
Ships within 2 days via
13.00% off
€22.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 15A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Plate Height | 1.3" |
| Gfci | No |
| Grade | Hospital Grade Fed. Spec |
| Grounding | Grounded |
| Housing Color | Ivory |
| Included | Grounding Screw/Clip, Mounting Hardware |
| Included Mounting Hardware | Yes |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-bryant-bry8200i.pdf |
| Receptacle Type | Duplex |
| Resistance Property | Corrosion Resistant, General Purpose |
| Special Resistance Properties | Corrosion Resistant, Heat Resistant |
| Surge Protection | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.95 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 3.91 |
