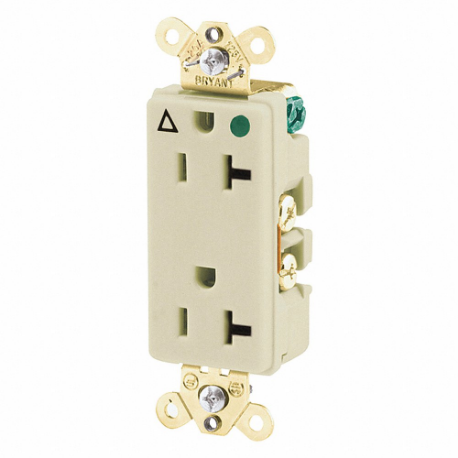

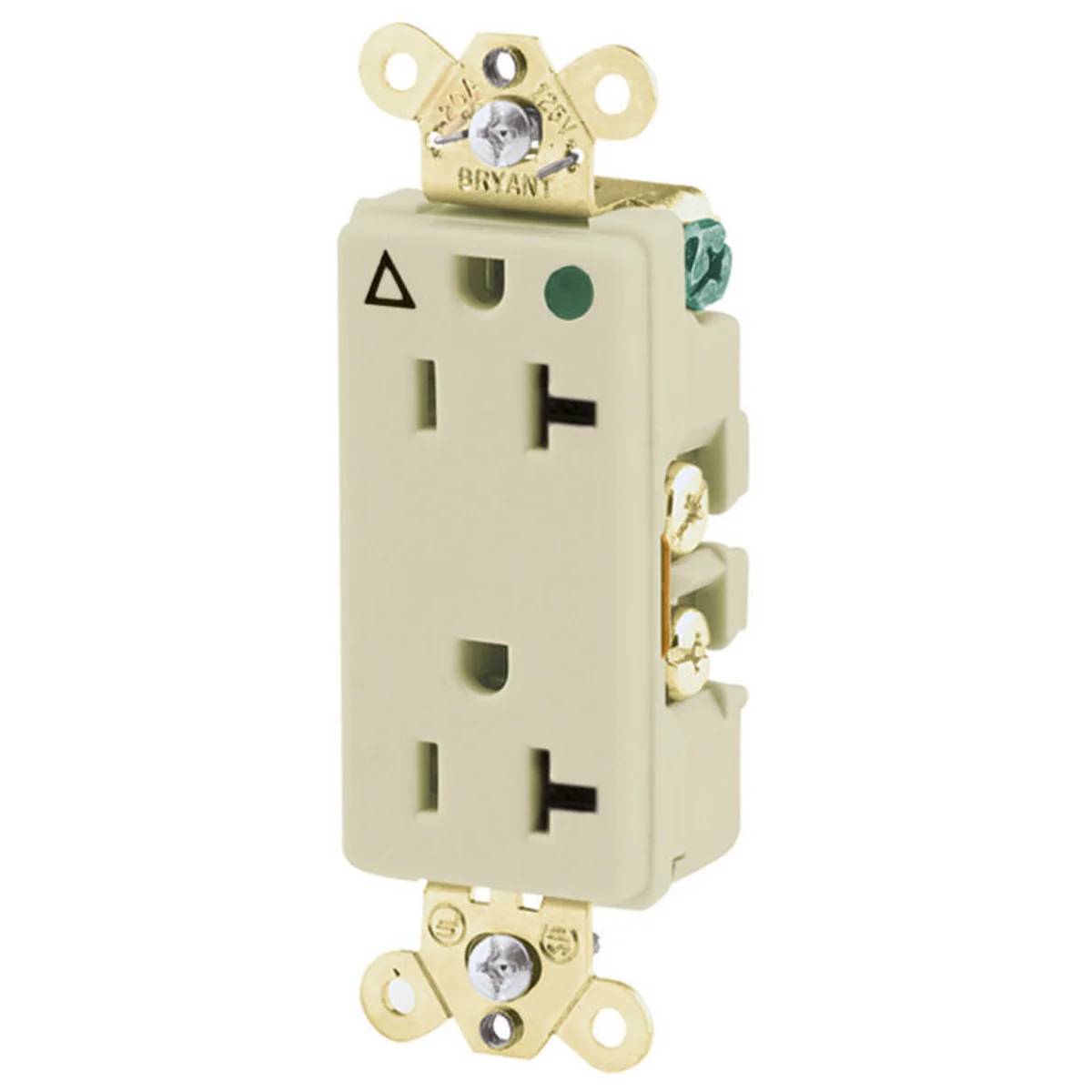

HUBBELL - BRYANT 9300IGI Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals
Item: CQ2EWJModel: 9300IGICross Ref: 52HC96
7 In Stock
Ships within 2 days via
13.00% off
€29.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Afci | No |
| Amps | 20A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Plate Height | 2 4/5" |
| Gfci | No |
| Grade | Hospital |
| Grounding | Grounded, Isolated Ground |
| Housing Color | Ivory |
| Included | Mounting Hardware |
| Included Mounting Hardware | Yes |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | hubbell-bryant-9300igi.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Special Resistance Properties | Tamper Resistant |
| Surge Protection | No |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
