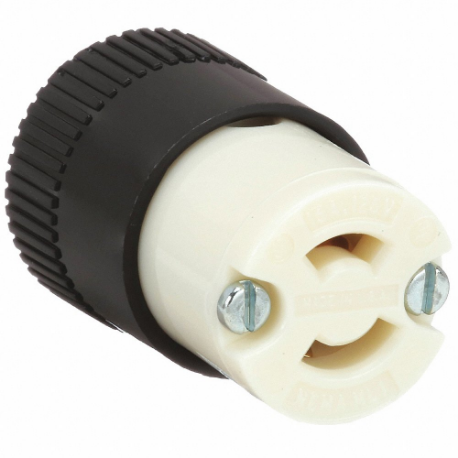

HUBBELL - BRYANT 7464N Midget Locking Connector, ML1-15R, 15 A, 125V AC, 2 Poles, Black/White, Screw Terminals
Item: CQ2FXPModel: 7464NCross Ref: 49YX68
7 In Stock
Ships within 2 days via
5.00% off
€30.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 15A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| Current Rating | 15A |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.425" |
| For Minimum Cable Diameter | 0.22" |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Ip Rating | IP20 |
| Length | 1 1/4" |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 12 AWG |
| Maximum Operating Temperature | 75°C |
| Maximum Wire Size | 12 AWG |
| Midget Locking | Yes |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Number Of Poles | 2 |
| Number Of Wires | 2 |
| Overall Length | 1.25" |
| Phase | Single |
| Resistance Properties | Shatter And Crack Resistant |
| Shrouded | No |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
