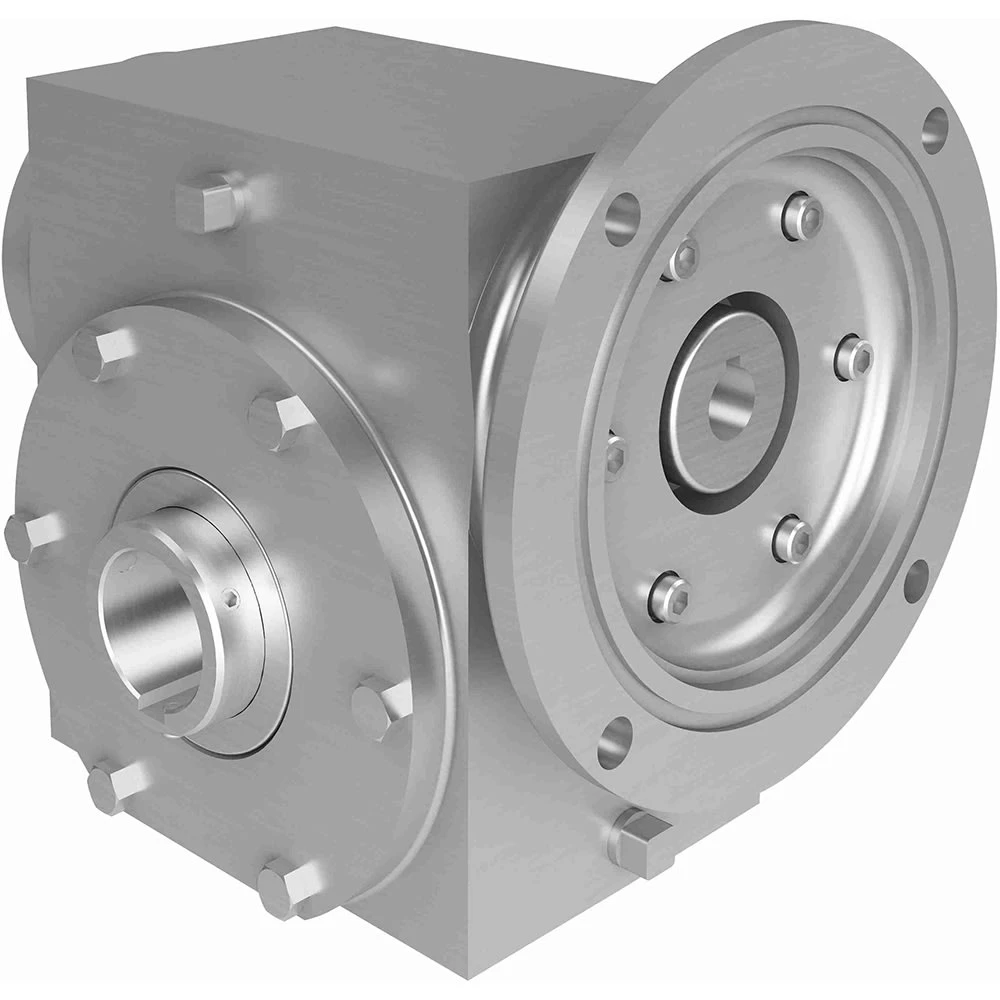

HUB CITY 0270-08740 Worm Reducer, 1.137 Hp, 1.188 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Dec 23
€3,074.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.38" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 1.137 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.188" |
| Output Rpm | 35 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 50:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 1432 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|
 |
0270-08749 | - | - | Worm Right Angle | Stainless Steel | - | RFQ
|
 |
0270-08751 | 1.342 hp | 56C | Worm Right Angle | Stainless Steel | €3,074.36 | |
 |
0270-08967 | - | - | Worm Right Angle | Stainless Steel | - | RFQ
|
 |
0270-09029 | - | - | Worm Right Angle | Stainless Steel | - | RFQ
|
|
0270-08799 | - | - | Worm Right Angle | Stainless Steel | - | RFQ
|
 |
0270-08921 | - | - | Worm Right Angle | Stainless Steel | - | RFQ
|
|
0270-08775 | - | - | Worm Right Angle | Stainless Steel | - | RFQ
|
