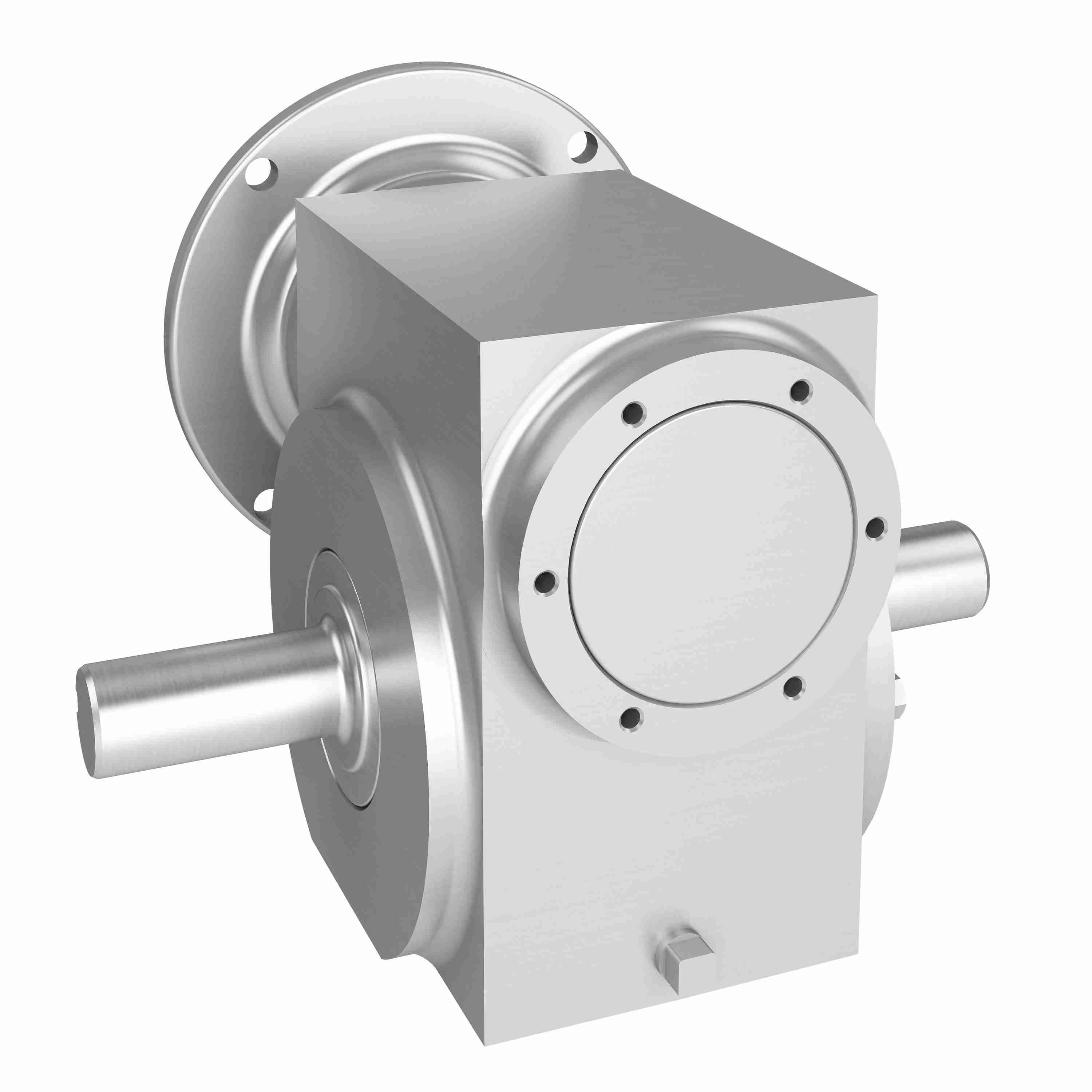

HUB CITY 0270-08607 Worm Reducer, 1.342 Hp, 1.125 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.38" |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Dia. | 5/8" |
| Input Hp | 1 171/500 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | A |
| Output | 43.75 RPM |
| Output Dia. | 1 1/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 1433 lbs.-in. |
| Overhung Load | 1400 lbs.-in. |
| Ratio | 40:1 |
| Reduction | Single |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Input Dia. | Output Speed | Max. Input Hp | Output Shaft Direction | Style | Ratio | Overhung Load | Motor Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-08619 | 5/8" | 43.75 RPM | 1.342 hp | Left | B | 40:1 | 1400 | - | €2,263.61 | |
 |
0270-08630 | 5/8" | 58.3 RPM | 1.653 hp | Right | C | 30:1 | 1400 | - | €2,263.61 | |
 |
0270-08631 | 5/8" | 43.75 RPM | 1.342 hp | Right | C | 40:1 | 1400 | - | €2,263.61 | |
 |
0270-08633 | 5/8" | 29.2 RPM | 0.967 hp | Right | C | 60:1 | 1400 | - | €2,263.61 | |
 |
0270-08689 | 1 1/8" | - | - | Left | B | 25:1 | 1400 lbs.-in. | 180TC | - | RFQ
|
 |
0270-08650 | 7/8" | - | - | Left | B | 10:1 | 1400 lbs.-in. | 140TC | - | RFQ
|
 |
0270-08674 | 1 1/8" | - | - | Left, Right | A | 10:1 | 1400 lbs.-in. | 180TC | - | RFQ
|
