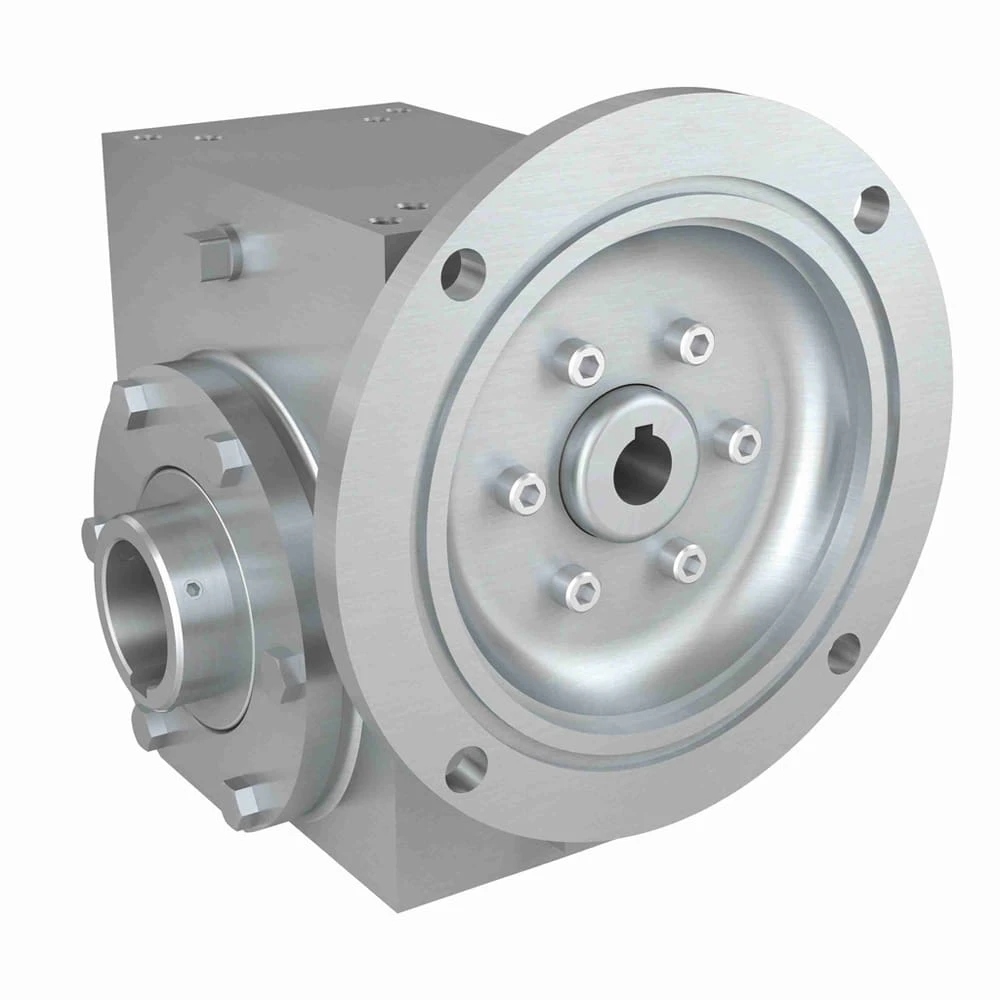

HUB CITY 0270-08280 Worm Reducer, 2.464 Hp, 1.438 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Sep 1
€2,550.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.06" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 2 hp to 3 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 2.464 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.438" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Speed | 175 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 805 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Torque | Max. Input Hp | Output Speed | Output Shaft Direction | Style | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-08232 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 2.464 hp | 175 RPM | Left Or Right | A | 10:1 | €2,429.18 | |
 |
0270-08233 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 1.887 hp | 116.7 RPM | Left Or Right | A | 15:1 | €2,550.64 | |
 |
0270-08234 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 1.584 hp | 87.5 RPM | Left Or Right | A | 20:1 | €2,550.64 | |
 |
0270-08236 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 1.129 hp | 58.3 RPM | Left Or Right | A | 30:1 | €2,429.18 | |
 |
0270-08237 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 0.916 hp | - | Left Or Right | A | 40:1 | €2,550.64 | |
 |
0270-08238 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 0.769 hp | 35 RPM | Left Or Right | A | 50:1 | €2,550.64 | |
 |
0270-08239 | 1" | 5/8" | 500 lbs.-in. to 1000 lbs.-in. | 0.674 hp | 29.2 RPM | Left Or Right | A | 60:1 | €2,550.64 |
