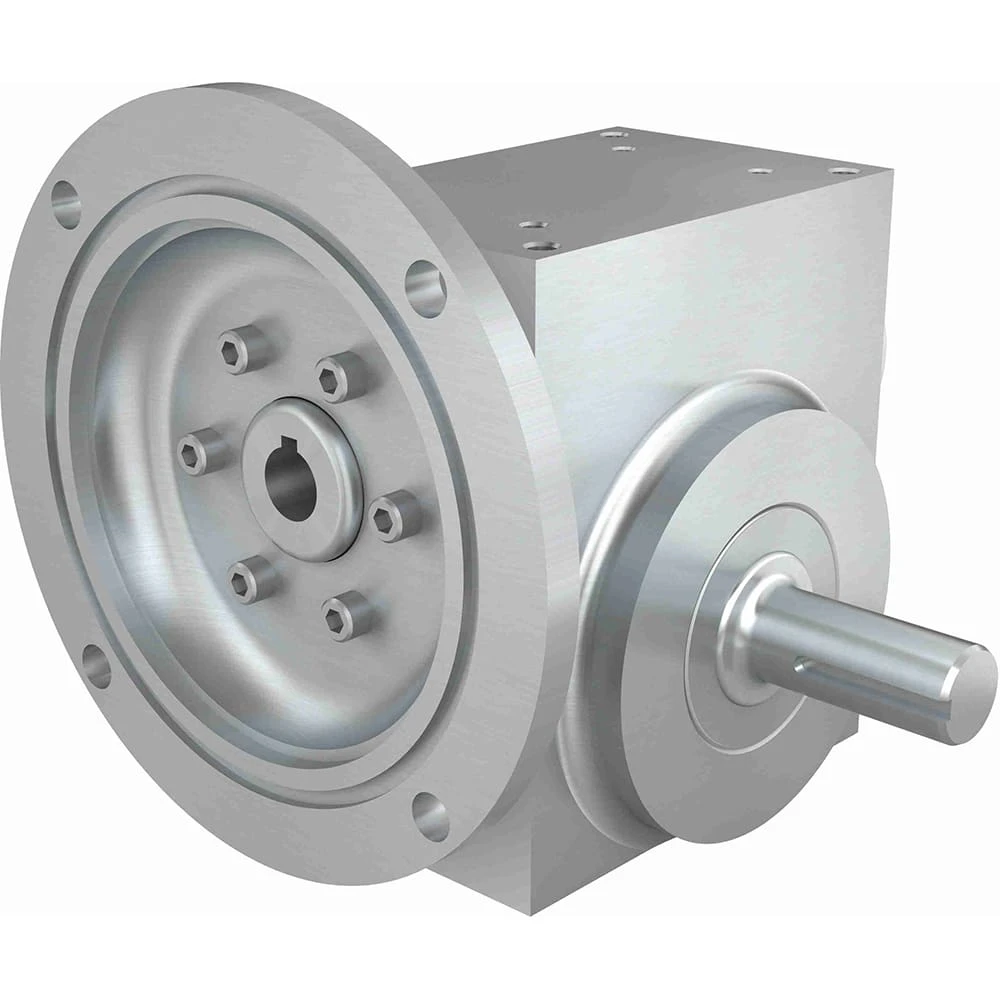

HUB CITY 0270-07617 Worm Reducer, 0.609 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Monday, Dec 22
€1,590.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1/2 hp to 1 hp |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 0.609 hp |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Rpm | 43.75 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 40:1 |
| Service Factor | 1 |
| Style | C |
| Torque Rating | 634 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Overhung Load | Frame Size | Gear Type | Housing Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|
 |
0270-07610 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 | |
 |
0270-07599 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 | |
 |
0270-07605 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 | |
 |
0270-07590 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 | |
 |
0270-07592 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 | |
 |
0270-07607 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 | |
 |
0270-07609 | 550 | 56C | Worm Right Angle | Stainless Steel | - | €1,590.62 |
