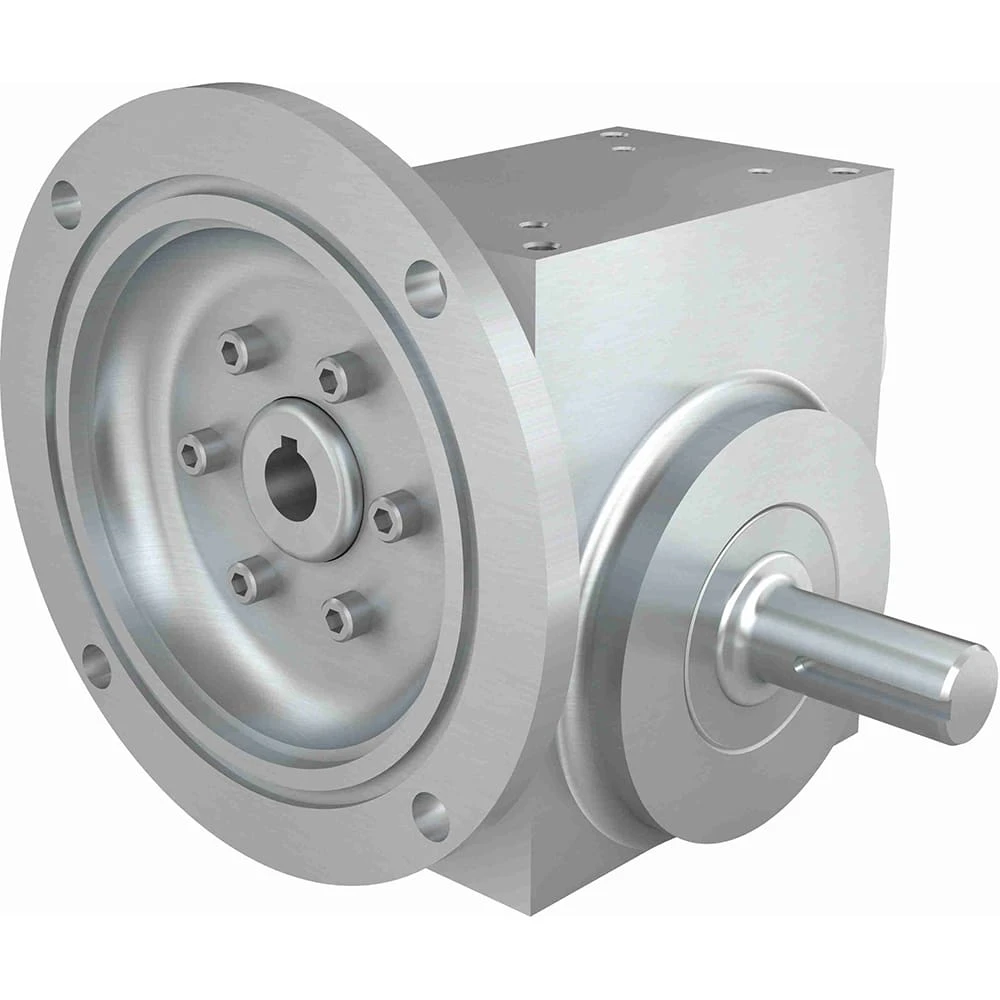

HUB CITY 0270-07614 Worm Reducer, 1.046 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Wednesday, Apr 15
€1,590.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 1.046 hp |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Rpm | 87.5 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | C |
| Torque Rating | 630 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | ratio | motor frame size | output | output rpm | frame size | gear type | mounting type | center distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-07610 | 5:1 | - | - | 350 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 | |
 |
0270-07599 | 7.5:1 | - | - | 233.3 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 | |
 |
0270-07605 | 40:1 | - | - | 43.75 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 | |
 |
0270-07590 | 20:1 | - | - | 87.5 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 | |
 |
0270-07592 | 30:1 | - | - | 58.3 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 | |
 |
0270-07607 | 60:1 | - | - | 29.2 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 | |
 |
0270-07609 | 100:1 | - | - | 17.5 RPM | 56C | Worm Right Angle | - | 1 3/4" | €1,590.62 |
