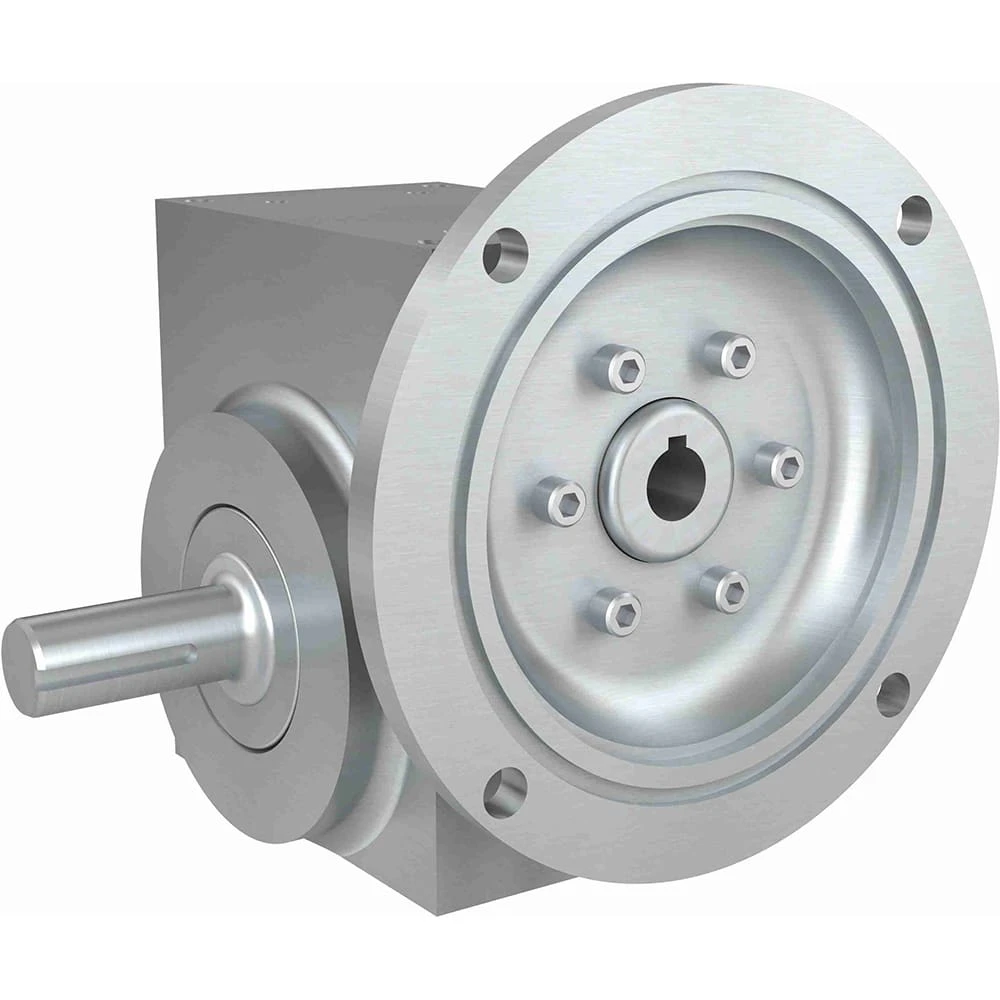

HUB CITY 0270-07606 Worm Reducer, 0.515 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Sep 1
€1,590.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" , 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 1/2 hp to 1 hp |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 0.515 hp |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Speed | 35 RPM |
| Output Torque | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 50:1 |
| Service Factor | 1 |
| Style | B |
| Torque | 634 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Input Dia. | Output Speed | Output Torque | Output Shaft Direction | Style | Ratio | Overhung Load | Motor Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-07610 | 5/8" | 350 RPM | 250 lbs.-in. to 500 lbs.-in. | Right | C | 5:1 | 550 | - | €1,590.62 | |
 |
0270-07599 | 5/8" | 233.3 RPM | 250 lbs.-in. to 500 lbs.-in. | Left | B | 7.5:1 | 550 | - | €1,590.62 | |
 |
0270-07605 | 5/8" | 43.75 RPM | 500 lbs.-in. to 1000 lbs.-in. | Left | B | 40:1 | 550 | - | €1,590.62 | |
 |
0270-07590 | 5/8" | 87.5 RPM | 500 lbs.-in. to 1000 lbs.-in. | Double | A | 20:1 | 550 | - | €1,590.62 | |
 |
0270-07592 | 5/8" | 58.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | Double | A | 30:1 | 550 | - | €1,590.62 | |
 |
0270-07607 | 5/8" | 29.2 RPM | 500 lbs.-in. to 1000 lbs.-in. | Left | B | 60:1 | 550 | - | €1,590.62 | |
 |
0270-07609 | 5/8" | 17.5 RPM | 250 lbs.-in. to 500 lbs.-in. | Left | B | 100:1 | 550 | - | €1,590.62 |
