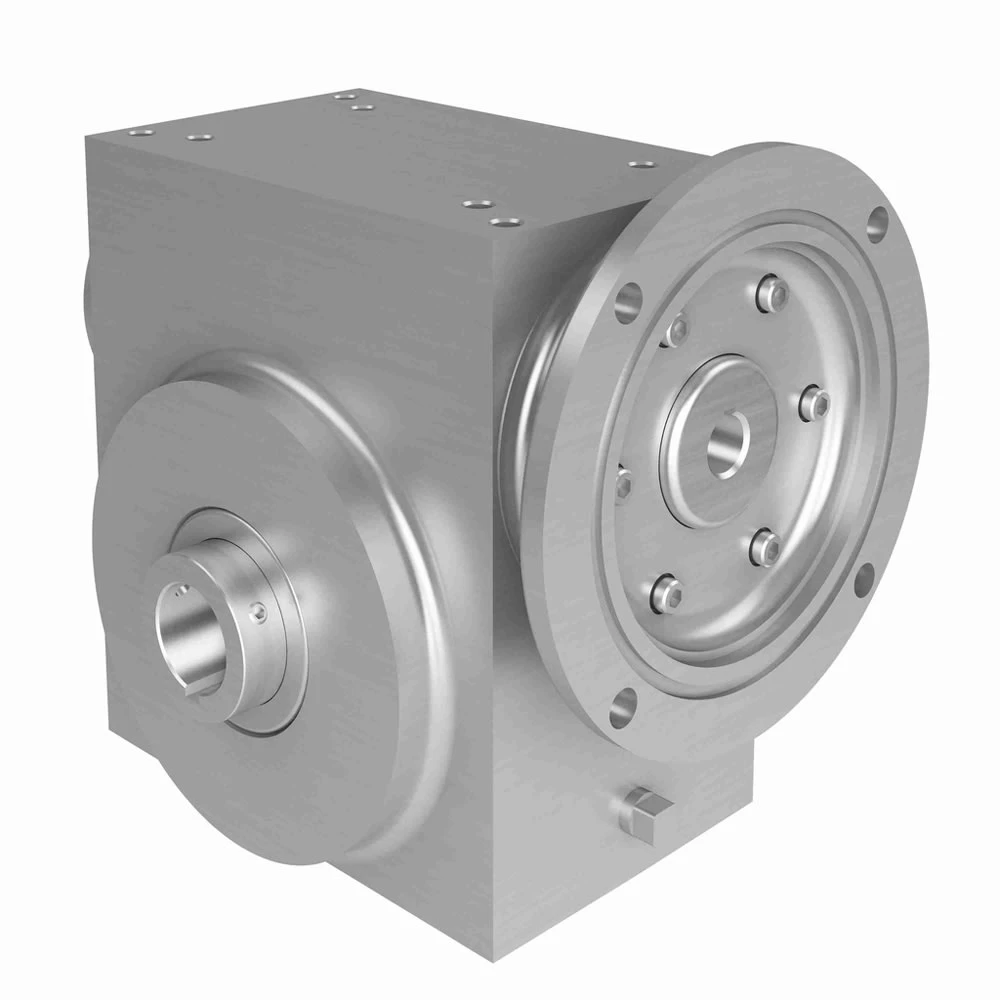

HUB CITY 0270-07001 Worm Reducer, 2.965 Hp, 0.875 Inch I.D, 1.000 Inch O.D, Stainless Steel
Get it by Monday, Aug 17
€3,546.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 2.965 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Speed | 87.5 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | B |
| Torque | 1836 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Output Torque | Max. Input Hp | Style | Ratio | Output Shaft Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-06763 | 1.438" | 5/8" | 58.3 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.145 hp | A | 30:1 | Left Or Right | €3,070.12 | |
 |
0270-06752 | 1 1/4" | 5/8" | 43.75 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 1.695 hp | A | 40:1 | Left Or Right | €3,546.01 | |
 |
0270-06760 | 1.438" | 5/8" | 116.7 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 3.614 hp | A | 15:1 | Left Or Right | €3,546.01 | |
 |
0270-06761 | 1.438" | 5/8" | 87.5 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.965 hp | A | 20:1 | Left Or Right | €3,546.01 | |
 |
0270-06753 | 1 1/4" | 5/8" | 35 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 1 21/50 hp | A | 50:1 | Left Or Right | €3,070.12 | |
 |
0270-06751 | 1 1/4" | 5/8" | 58.3 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.145 hp | A | 30:1 | Left Or Right | €3,070.12 | |
 |
0270-06714 | 1" | 5/8" | 70 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 2.487 hp | A | 25:1 | Left Or Right | €3,546.01 |
