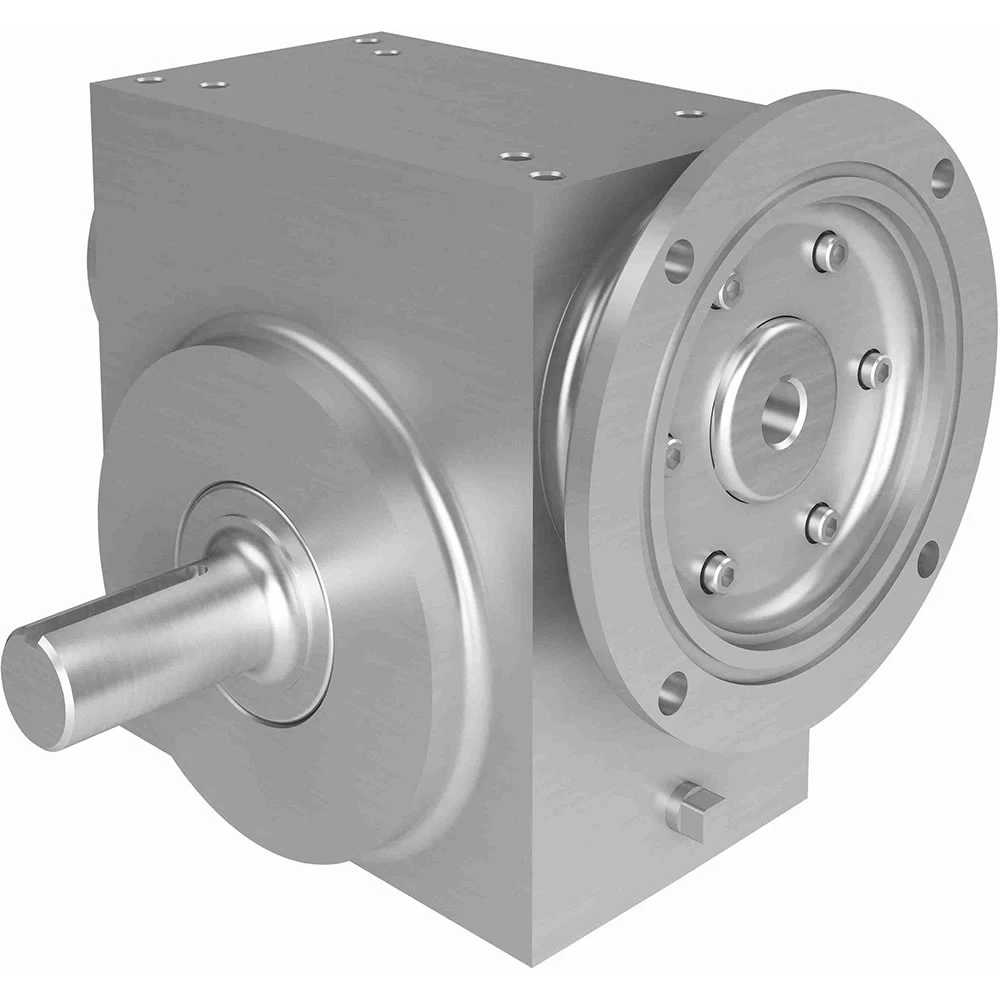

HUB CITY 0270-06657 Worm Reducer, 1.42 Hp, 0.875 Inch I.D, 1.250 Inch O.D, Stainless Steel
Get it by Thursday, Jul 16
€2,616.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" to 3 1/4" , 2.63" |
| Frame Size | 140TC |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp | 1 hp to 2 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 1 21/50 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left |
| Output Speed | 35 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Overhung Load | 1150 |
| Product Datasheet | hub-city-0270-07217.pdf |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 50:1 |
| Service Factor | 1 |
| Style | B |
| Torque | 1843 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 24.75 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 30.48 |
Documentation:
Product Variants
| Product | Model | output torque | max. input hp | center distance | input style | ratio | frame size | output shaft | output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0270-06613 | 1000 lbs.-in. to 2500 lbs.-in. | 6.693 hp | 2.63" | C Face Quill | 5:1 | 56C | Shaft | - | €2,616.88 | |
 |
0270-06619 | 1000 lbs.-in. to 2500 lbs.-in. | 2.145 hp | 2.63" | C Face Quill | 30:1 | 56C | Shaft | - | €2,616.88 | |
 |
0270-06620 | 1000 lbs.-in. to 2500 lbs.-in. | 1.695 hp | 2.63" | C Face Quill | 40:1 | 56C | Shaft | - | €2,616.88 | |
 |
0270-06621 | 1000 lbs.-in. to 2500 lbs.-in. | 1 21/50 hp | 2.63" | C Face Quill | 50:1 | 56C | Shaft | - | €2,616.88 | |
 |
0270-06622 | 1000 lbs.-in. to 2500 lbs.-in. | 1.216 hp | 2.63" | C Face Quill | 60:1 | 56C | Shaft | - | €2,616.88 | |
 |
0270-06817 | 1000 lbs.-in. to 2500 lbs.-in. | 6.693 hp | 2.63" | C Face Quill | 5:1 | 140TC | Hollow Bore | - | €3,546.01 | |
 |
0270-06629 | 1000 lbs.-in. to 2500 lbs.-in. | 2.965 hp | 2.63" | C Face Quill | 20:1 | 56C | Shaft | - | - | RFQ
|
