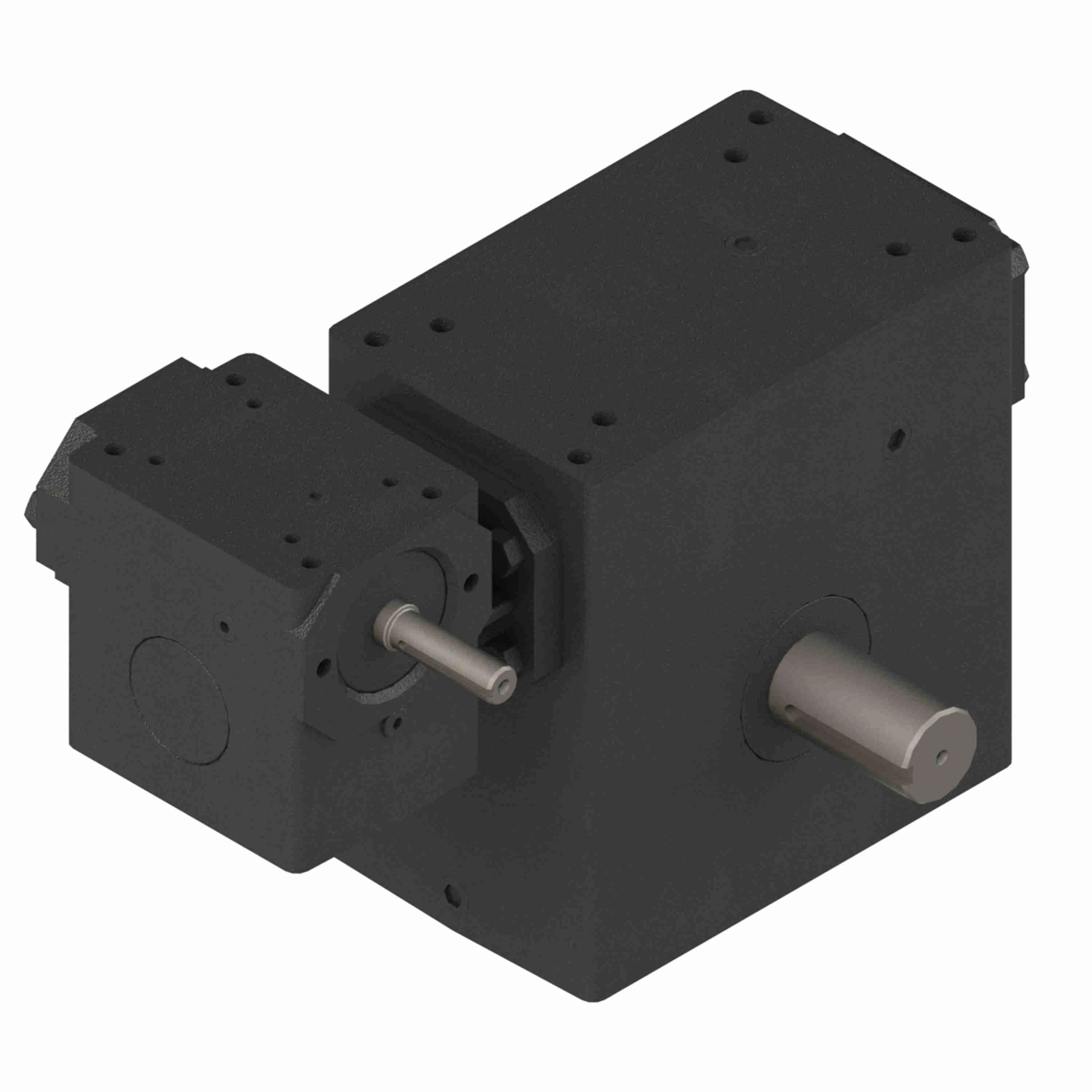

HUB CITY 0270-02529 Worm Reducer, 7.25 Hp, 0.875 Inch I.D, 2.750 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
€10,514.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 7" |
| Center Distance Range | Above 3.25" |
| Gear Type | Double Worm |
| Height | 30 |
| Input Diameter | 7/8" |
| Input Style | Shaft |
| Length | 48 |
| Material | Cast Iron |
| Max. Input Hp | 7.25 hp |
| Output Diameter | 2 3/4" |
| Output Rpm | 11.4 RPM |
| Output Torque | 30.621 lbs.-in. |
| Output Torque Range | 30 lbs.-in. to 40 lbs.-in. |
| Output Type | Shaft |
| Ratio | 150:01:00 |
| Ratio Range | 100:1 to 250:1 |
| Series | GW7000 Series |
| Service Factor | 1 |
| Width | 24 |
Shipping Info:
| Ship weight (kg) | 215.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | max. input hp | output torque | input style | output rpm | ratio | motor frame size | series | gear type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0270-02501 | 7.25 hp | 30.621 lbs.-in. | C-Face Quill | 11.4 RPM | 150:01:00 | 180TC | GW7000 Series | Double Worm | - | RFQ
|

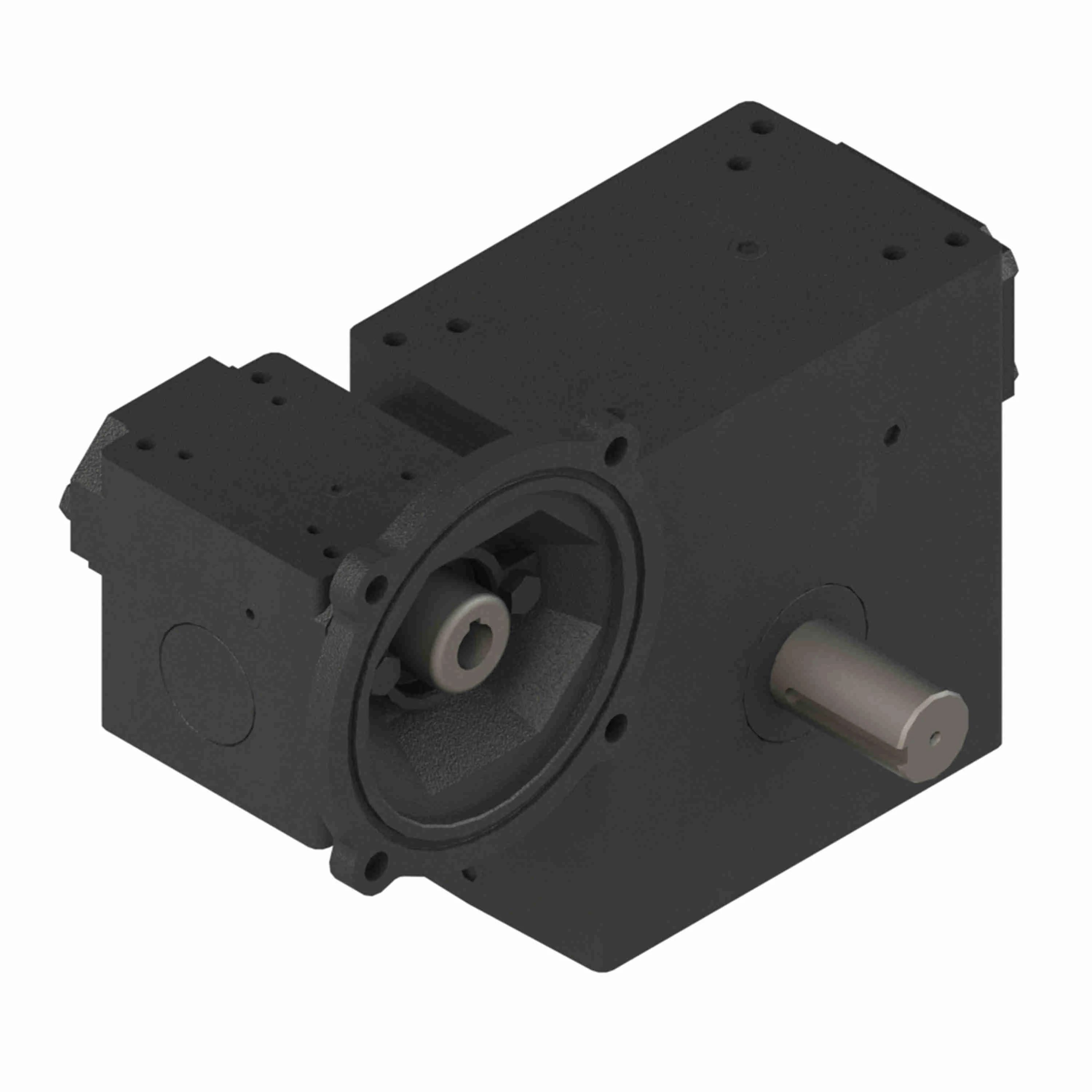

| 0270-02598 | 2.13 hp | 33.682 lbs.-in. | C-Face Quill | 2.4 RPM | 750:01:00 | 180TC | GW7000 Series | Double Worm | €10,747.24 | |
| 0270-02527 | 1.28 hp | 34.325 lbs.-in. | C-Face Quill | 1.2 RPM | 1500:01:00 | 56C | GW7000 Series | Double Worm | - | RFQ
|
