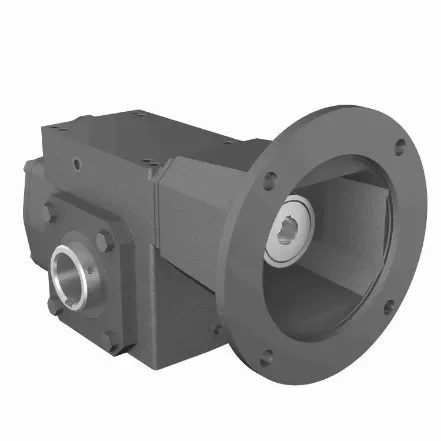

HUB CITY 0250-56561 Helical Hypoid Reducer, 4.23 HP, 0.626 Inch I.D, 1.438 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
€1,429.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.509" |
| Frame Size | 56C |
| Gear Drive Size | HERA35 |
| Housing Height | 5 3/4" |
| Housing Length | 7.19" |
| Housing Material | Cast Iron |
| Housing Width | 5 1/2" |
| Hp | 3 hp to 5 hp |
| Input Dia. | 0.626" |
| Input Hp | 4 23/100 hp |
| Input Hp @ 1750 Rpm | 4.23 hp |
| Input Style | C Face Coupled |
| Length Through Bore | 5 1/2" |
| Max. Input Hp | 4.23 hp |
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 7.5:1 |
| Output Dia. | 1.438" |
| Output Shaft | Hollow Bore |
| Output Speed | 218.2 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 8.02:1 |
| Service Factor | 1 |
| Style | PS |
| Torque | 1100 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Input Dia. | Output Speed | Max. Input Hp | Output Dia. | Input Hp @ 1750 Rpm | Nominal Ratio | Frame Size | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0250-56617 | 0.876" | 218.2 RPM | 4.23 hp | 1.438" | 4.23 hp | 7.5:1 | 140TC | 3 hp to 5 hp | €1,429.71 | |
 |
0250-56535 | 0.626" | 33.3 RPM | 13/20 hp | 1" | 13/20 hp | 50:1 | 56C | 1/2 hp to 1 hp | €1,429.71 | |
 |
0250-56536 | 0.626" | 30 RPM | 29/50 hp | 1" | 29/50 hp | 60:1 | 56C | 1/2 hp to 1 hp | €1,429.71 | |
 |
0250-56563 | 0.626" | 112.2 RPM | 2 9/50 hp | 1.438" | 2 9/50 hp | 15:1 | 56C | 2 hp to 3 hp | €1,429.71 | |
 |
0250-56564 | 0.626" | 87.8 RPM | 1 7/10 hp | 1.438" | 1 7/10 hp | 20:1 | 56C | 2 hp to 3 hp | €1,429.71 | |
 |
0250-56519 | 0.626" | 33.3 RPM | 13/20 hp | 3/4" | 13/20 hp | 50:1 | 56C | 1/2 hp to 1 hp | €1,429.71 | |
 |
0250-56604 | 0.876" | 87.8 RPM | 1 7/10 hp | 1.188" | 1 7/10 hp | 20:1 | 140TC | 2 hp to 3 hp | €1,429.71 |
