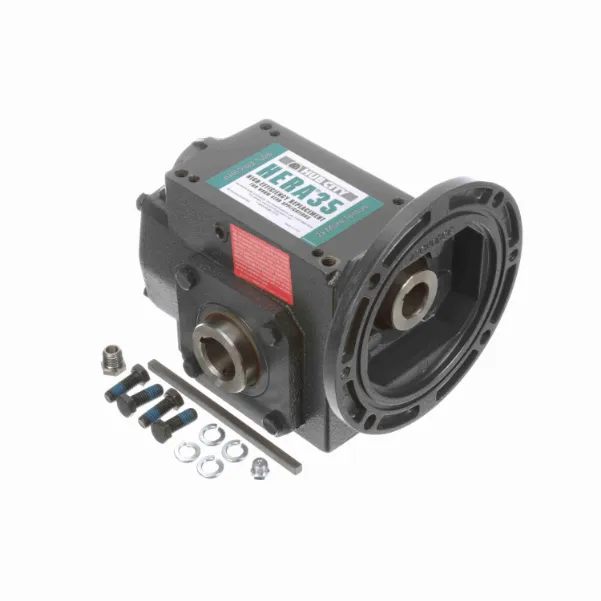

HUB CITY 0250-56483 Helical Hypoid Reducer, 2.18 HP, 0.876 Inch I.D, 1.125 Inch O.D, Cast Iron
Get it by Monday, Dec 22
€1,429.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.509" |
| Frame Size | 140TC |
| Gear Drive Size | HERA35 |
| Housing Height | 5 3/4" |
| Housing Length | 7.19" |
| Housing Material | Cast Iron |
| Housing Width | 5 1/2" |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 0.876" |
| Input Hp | 2 9/50 hp |
| Input Hp @ 1750 Rpm | 2 9/50 hp |
| Input Style | C Face Quill |
| Length Through Bore | 5 1/2" |
| Max. Input Hp | 2 9/50 hp |
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 15:1 |
| Output Dia. | 1 1/8" |
| Output Rpm | 112.2 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 15.6:1 |
| Service Factor | 1 |
| Style | ES |
| Torque Rating | 1100 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
Product Variants
| Product | Model | Max. Input Hp | Frame Size | Gear Ratio | Housing Material | Output Type | Material | Mounting Type | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0250-56474 | 2.97 hp | 140TC | - | Cast Iron | - | - | - | - | €1,429.71 | |
 |
0250-56475 | 2 9/50 hp | 140TC | - | Cast Iron | - | - | - | - | €1,429.71 | |
 |
0250-56478 | 39/50 hp | 140TC | - | Cast Iron | - | - | - | - | €1,429.71 | |
 |
0250-56500 | 1 7/10 hp | 140TC | - | Cast Iron | - | - | - | - | €1,429.71 | |
 |
0250-56504 | 29/50 hp | 140TC | - | Cast Iron | - | - | - | - | €1,429.71 | |
 |
0250-56506 | 2.97 hp | 140TC | 11.42:1 | Cast Iron | Hollow Bore | Cast Iron | - | 2 97/100 hp | €1,298.57 | |
 |
0250-56507 | 2 9/50 hp | 140TC | - | Cast Iron | - | - | - | - | €1,429.71 |
