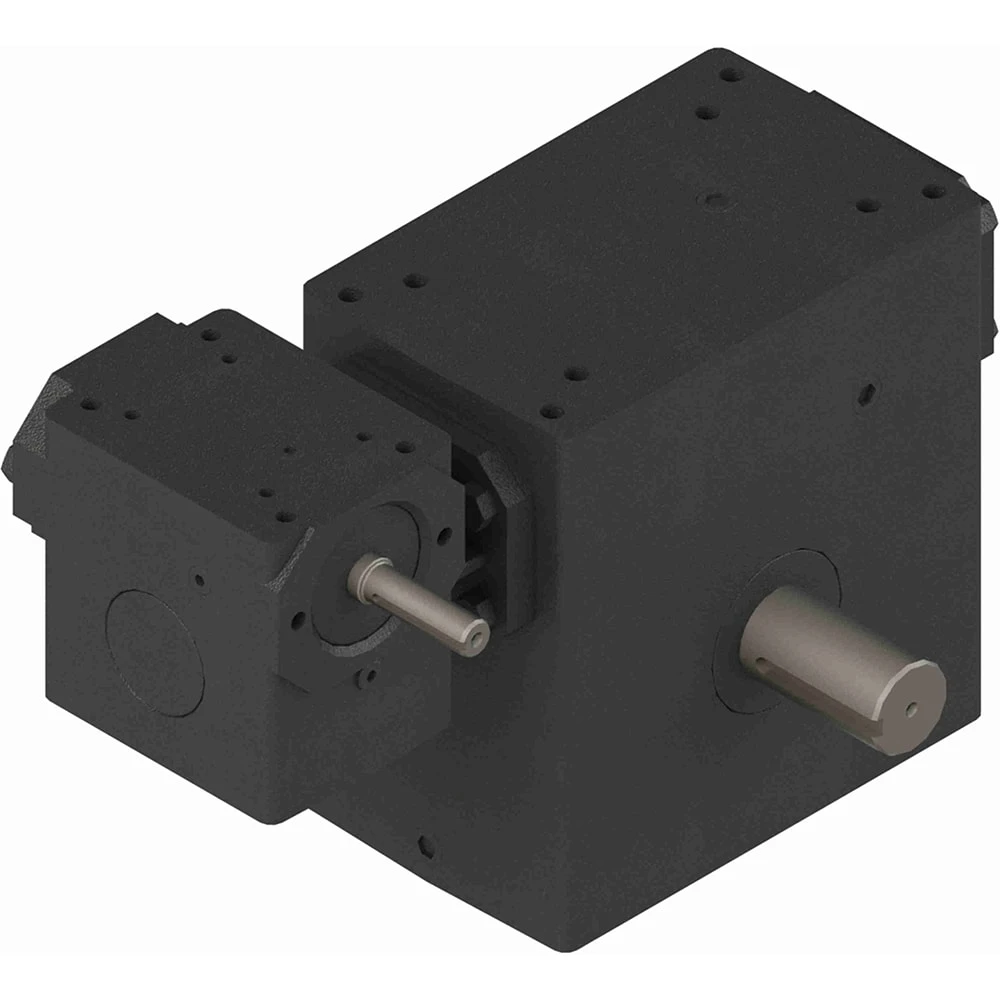

HUB CITY 0230-30129 Worm Reducer, 0.53 Hp, 1.375 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Thursday, Apr 16
€2,848.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Center Distance Range | Above 3.25" |
| Gear Type | Worm |
| Height | 13.5 |
| Input Diameter | 5/8" |
| Input Type | Shaft |
| Length | 14 |
| Material | Cast Iron |
| Max. Input Hp | 0.53 hp |
| Output Diameter | 1 3/8" |
| Output Rpm | 3.5 RPM |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Output Torque Rating | 4898 lbs.-in. |
| Output Type | Shaft |
| Ratio | 500:1 |
| Series | 3200 Series |
| Service Factor | 1 |
| Style | Single Output |
| Width | 12.25 |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | gear type | max. input hp | gear ratio | output rpm | ratio | frame size | output diameter | motor frame size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-30415 | Worm | 0.27 hp @ 1750 RPM | - | 1.17 RPM | 1500:1 | 143TC | 1 3/8" | 140TC | €2,579.98 | RFQ
|
 |
0230-30343 | Worm | 1.96 hp | - | 17.5 RPM | 100:1 | 56C | 1 3/8" | - | €2,979.86 | |
 |
0230-30515 | Double Worm | 0.27 hp | - | 1.17 RPM | 1500:01:00 | 56C | 1.438" | 56C | - | RFQ
|
 |
0230-30342 | Worm | 2.45 hp | - | 23.3 RPM | 75:1 | 56C | 1 3/8" | - | €2,979.86 | |
 |
0230-30773 | Double Worm | 0.31 hp | - | 1.75 RPM | 1000:1 | 56C | - | - | €3,146.55 | |
 |
0230-30365 | Worm | 1.12 hp | - | 8.75 RPM | 200:1 | 56C | 1 3/8" | - | €2,979.86 | |
 |
0230-30346 | Worm | 0.94 hp | - | 7 RPM | 250:1 | 56C | 1 3/8" | - | €2,979.86 |
