HUB CITY 0230-24307 Worm Reducer, 0.41 Hp at 1750 RPM Hp, 1.250 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Friday, Aug 28
€2,025.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1" Thru 3.25" , 2.63" |
| Frame Size | 56C |
| Gear Type | Double Worm |
| Height | 13.5 |
| Input Dia. | 5/8" |
| Input Style | C-Face Quill |
| Input Type | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Length | 14 |
| Material | Cast Iron |
| Max. Input Hp | 0.41 hp @ 1750 RPM |
| Motor Frame Size | 56C |
| Mounting Style | Select |
| Output | Shaft |
| Output Dia. | 1 1/4" |
| Output Shaft Direction | Left, Right |
| Output Speed | 5.83 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Output Torque Rating | 2429 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1150 |
| Ratio | 250:1 to 500:1 , 300 , 300:1 |
| Series | 2600 Series |
| Service Factor | 1 |
| Style | Single Output |
| Width | 12.25 |
Shipping Info:
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Output Dia. | Output Speed | Output Torque | Max. Input Hp | Gear Type | Ratio | Output Torque Rating | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-24285 | 1 1/8" | 8.75 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 0.62 hp @ 1750 RPM | Worm | 200:1 | 2550 lbs.-in. | Double Output | €1,841.04 | |
 |

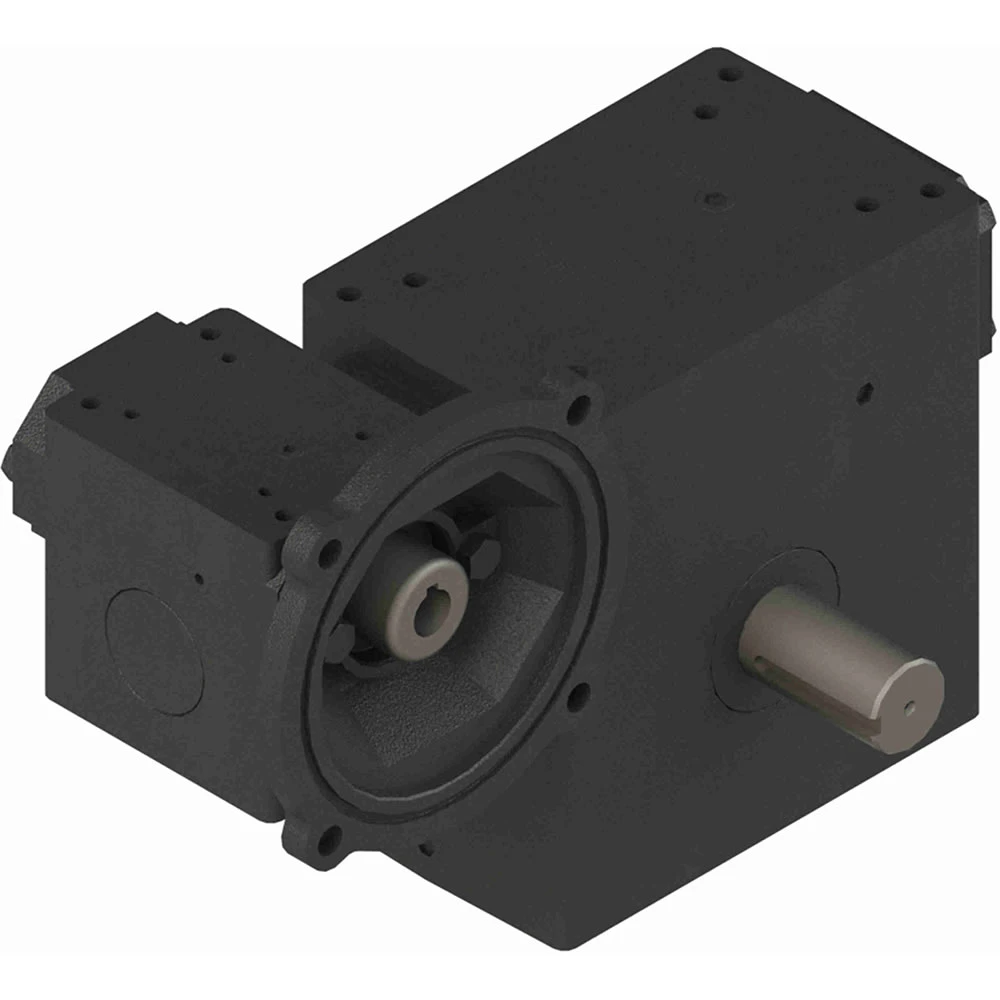

0230-24320 | 1 1/8" | 0.49 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 0.072 hp @ 1750 RPM | Worm | 3600:1 | 2261 lbs.-in. | Single Output | €1,753.38 | |
 |
0230-24283 | 1 1/8" | 17.5 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 1.09 hp @ 1750 RPM | Worm | 100:1 | 2428 lbs.-in. | Double Output | €1,753.38 | |
 |

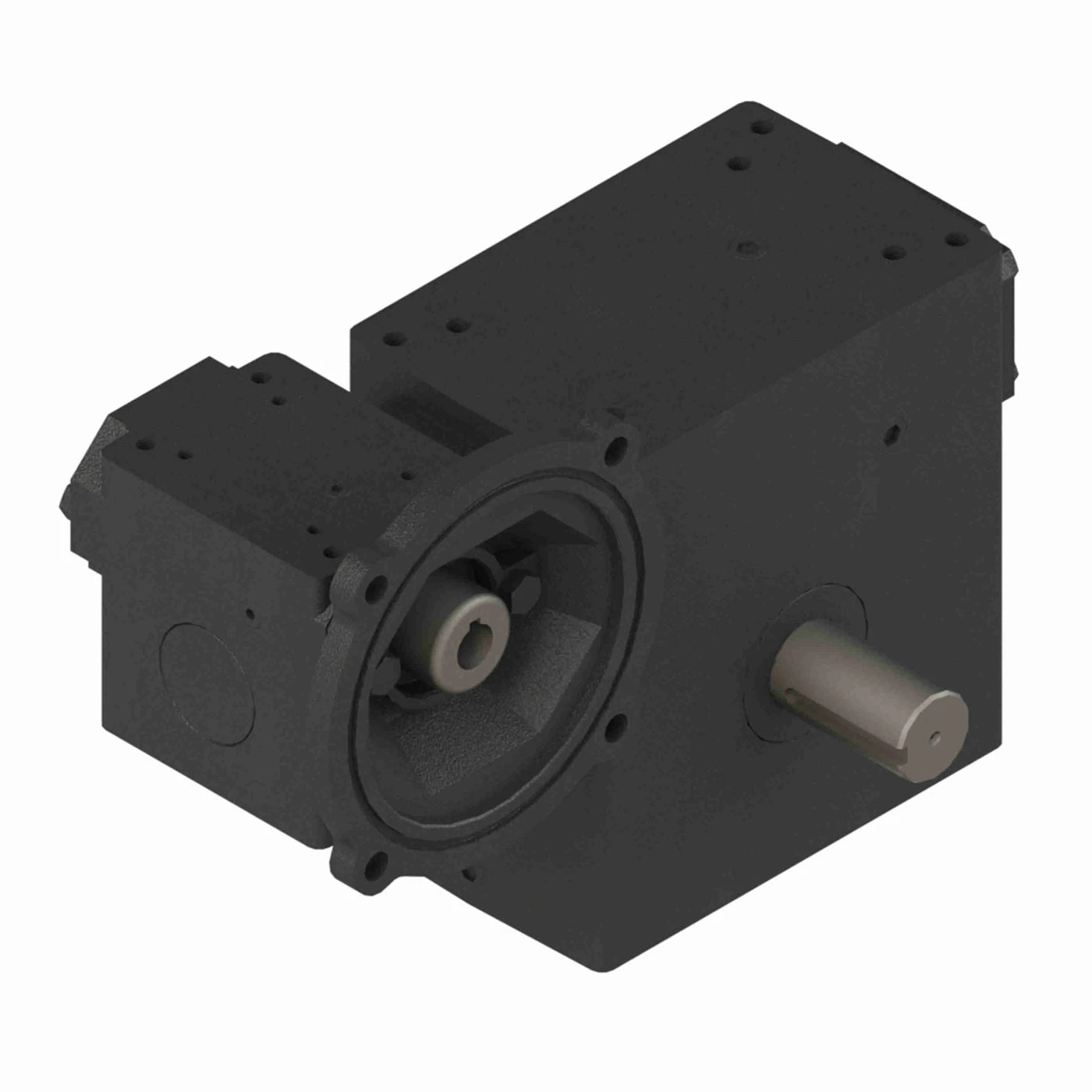

0230-24304 | 1 1/8" | 11.7 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 0.72 hp | Worm | 150:1 | 2381 lbs.-in. | Single Output | €1,753.38 | |
 |

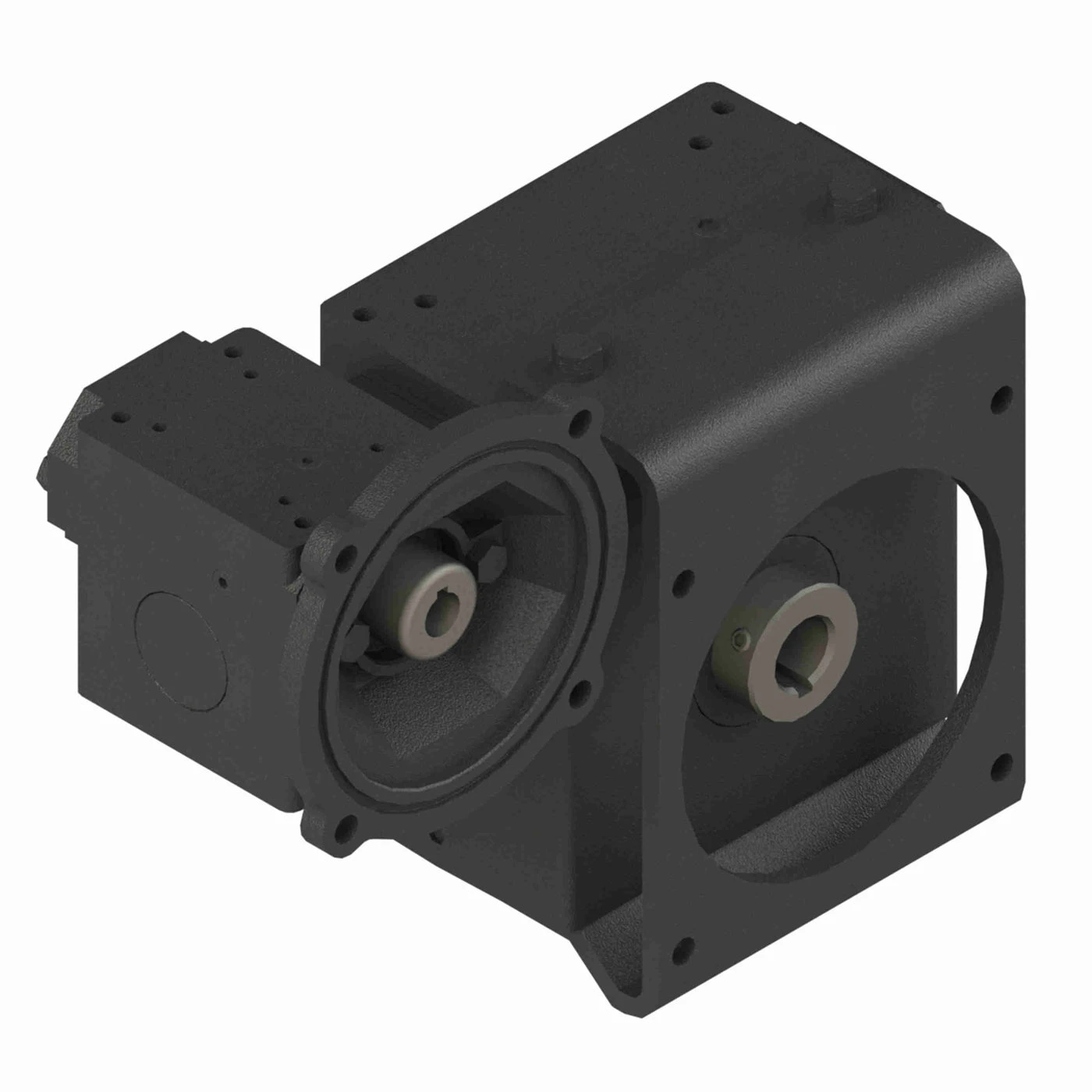

0230-24805 | 1 1/4" | 8.75 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 31/50 hp | Double Worm | 200:1 | - | - | €2,613.35 |
