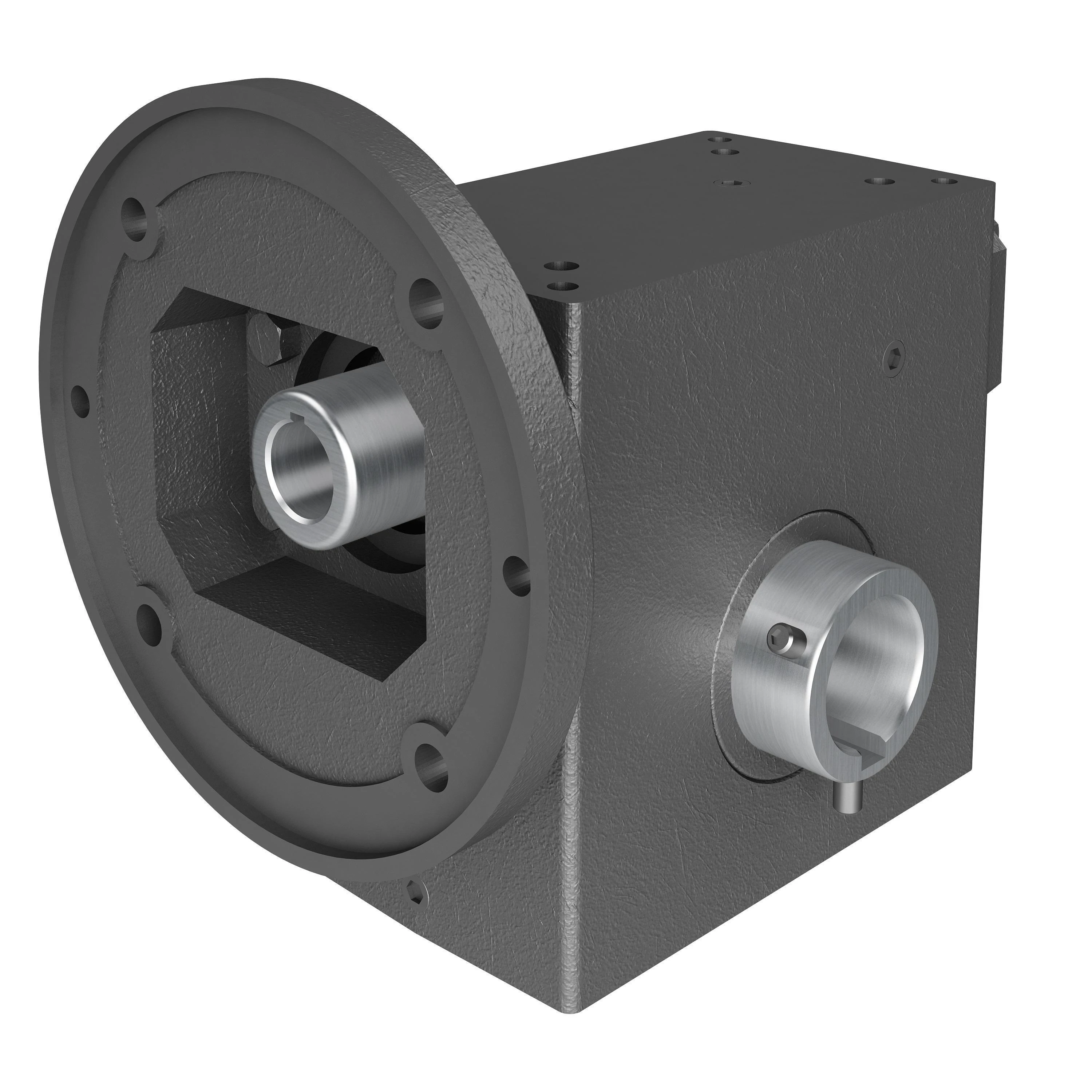

HUB CITY 0230-16044 Worm Reducer, 5.57 Hp, 1.438 Inch I.D, 1.125 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 1 1/8" |
| Input Hp | 5 57/100 hp |
| Input Style | C Face Quill |
| Motor Frame Size | 180TC |
| Output | 117 RPM |
| Output Dia. | 1.438" |
| Output Shaft | Hollow Bore |
| Output Torque Rating | 2730 lbs.-in. |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | A |
Shipping Info:
| Ship weight (kg) | 31.5 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Output Torque | Max. Input Hp | Input Style | Gear Type | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-01429 | 1" | 5/8" | 58.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | 3/4 hp | Shaft | Worm | Hollow Bore | €1,180.82 | |
 |
0230-02449 | 1 1/4" | 5/8" | - | - | - | Shaft | Worm | Hollow Bore | - | RFQ
|
 |
0230-02965 | 1" | 5/8" | 87.5 RPM | 500 lbs.-in. to 1000 lbs.-in. | 1 1/2 hp | C Face Quill | Worm | Hollow Bore | €1,531.02 | |
 |
0230-15218 | 1.438" | 1 1/8" | 70 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 3 23/25 hp | C Face Quill | Worm | Hollow Bore | €2,595.69 | |
 |
0230-24293 | 1 1/4" | 5/8" | - | - | - | C Face Quill | Double Worm | Shaft | - | RFQ
|
 |
0230-14603 | 1 3/8" | 7/8" | 175 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 6 19/25 hp | Shaft | Worm | Shaft | €1,533.96 | |
 |
0230-00737 | 3/4" | 5/8" | - | - | - | C Face Quill | Worm | Shaft | €876.16 |
