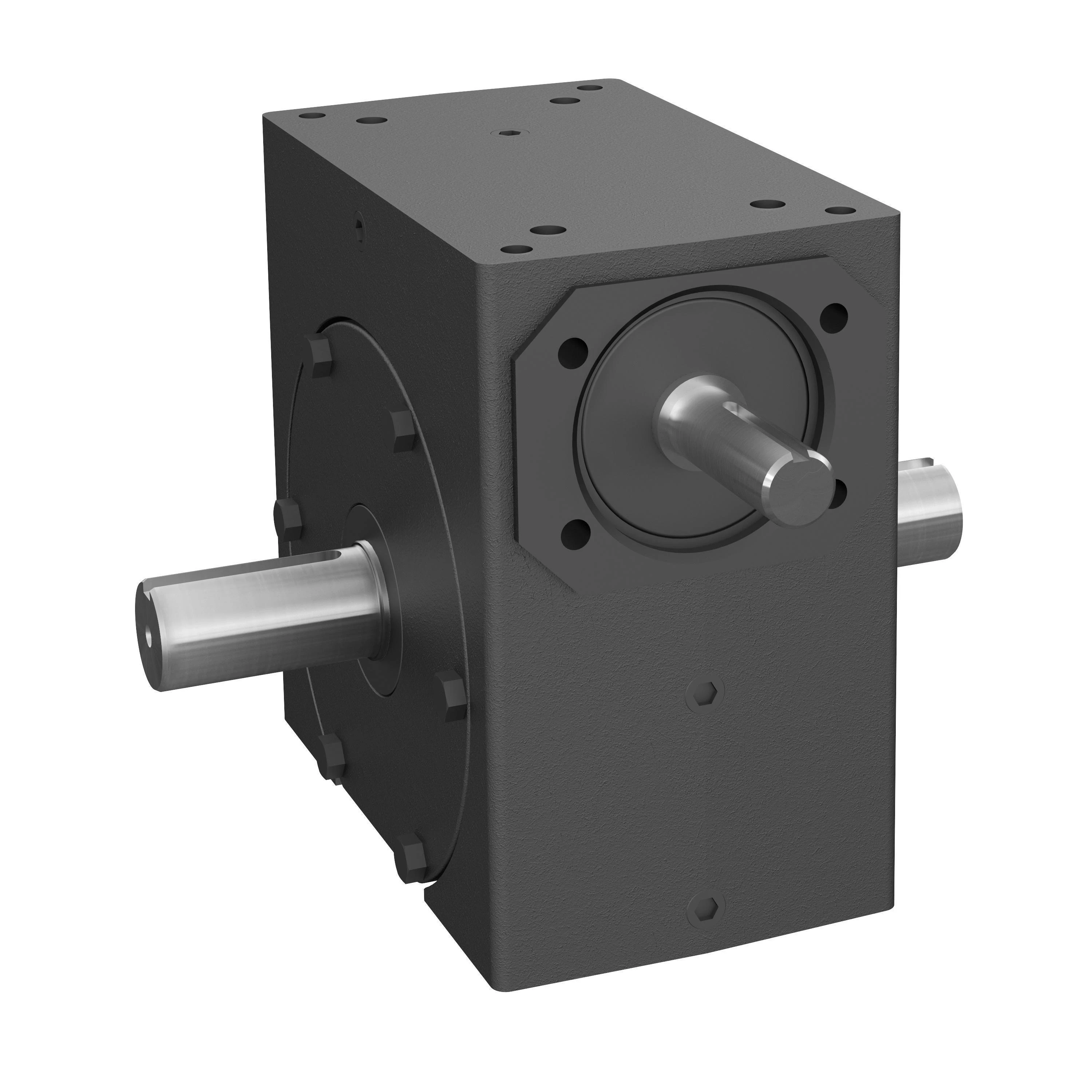

HUB CITY 0230-15623 Worm Reducer, 6.76 Hp, 1.375 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" , Above 3.25" |
| Gear Type | Worm |
| Height | 13.5 |
| Hp | 5 hp (Less Than 7 1/2 hp) |
| Input Dia. | 7/8" |
| Input Hp | 6.76 hp |
| Input Style | Shaft |
| Length | 14 |
| Material | Cast Iron |
| Output Dia. | 1 3/8" |
| Output Shaft Direction | Double |
| Output Shaft Orientation | Left, Right |
| Output Speed | 175 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Output Torque Rating | 2277 lbs.-in. |
| Output Type | Shaft |
| Ratio | 10:01 |
| Series | 320LPCX Series |
| Service Factor | 1 |
| Style | A |
| Width | 12.25 |
Shipping Info:
| Ship weight (kg) | 29.25 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Output Torque | Hp | Input Style | Ratio | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

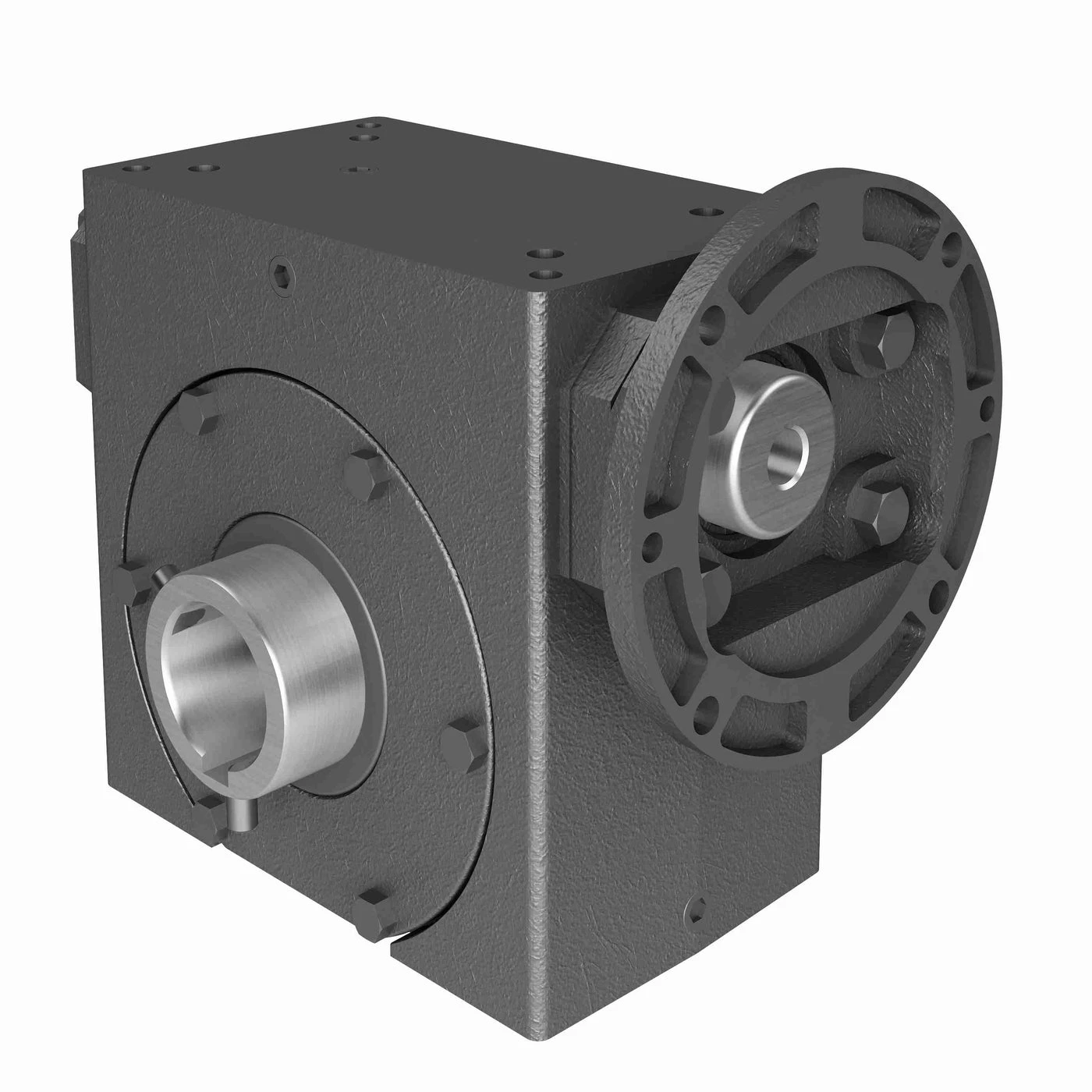

0230-15953 | 1.438" | 5/8" | 35 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 2 hp to 3 hp | C Face Quill | 50:1 | Cast Iron | €2,687.53 |
