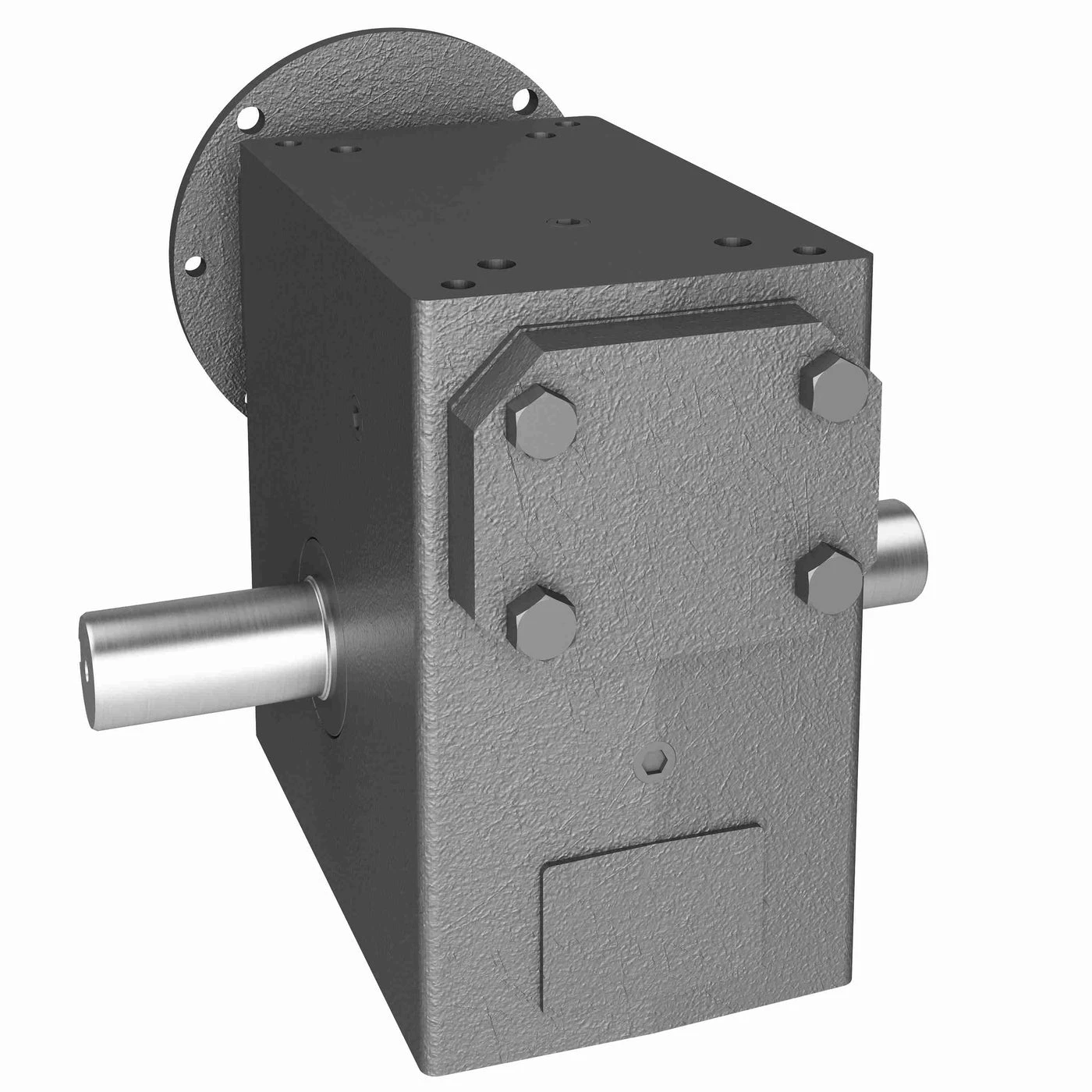

HUB CITY 0230-14799 Worm Reducer, 3.56 Hp, 1.375 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Friday, Aug 28
€1,676.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 3 1/4" , Above 3.25" |
| Frame Size | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 3 hp to 5 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 3 14/25 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 3/8" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 58.3 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Overhung Load | 1100 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 30:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 2943 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 30.15 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Input Dia. | Output Speed | Output Torque | Max. Input Hp | Frame Size | Torque | Hp | Output Shaft Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

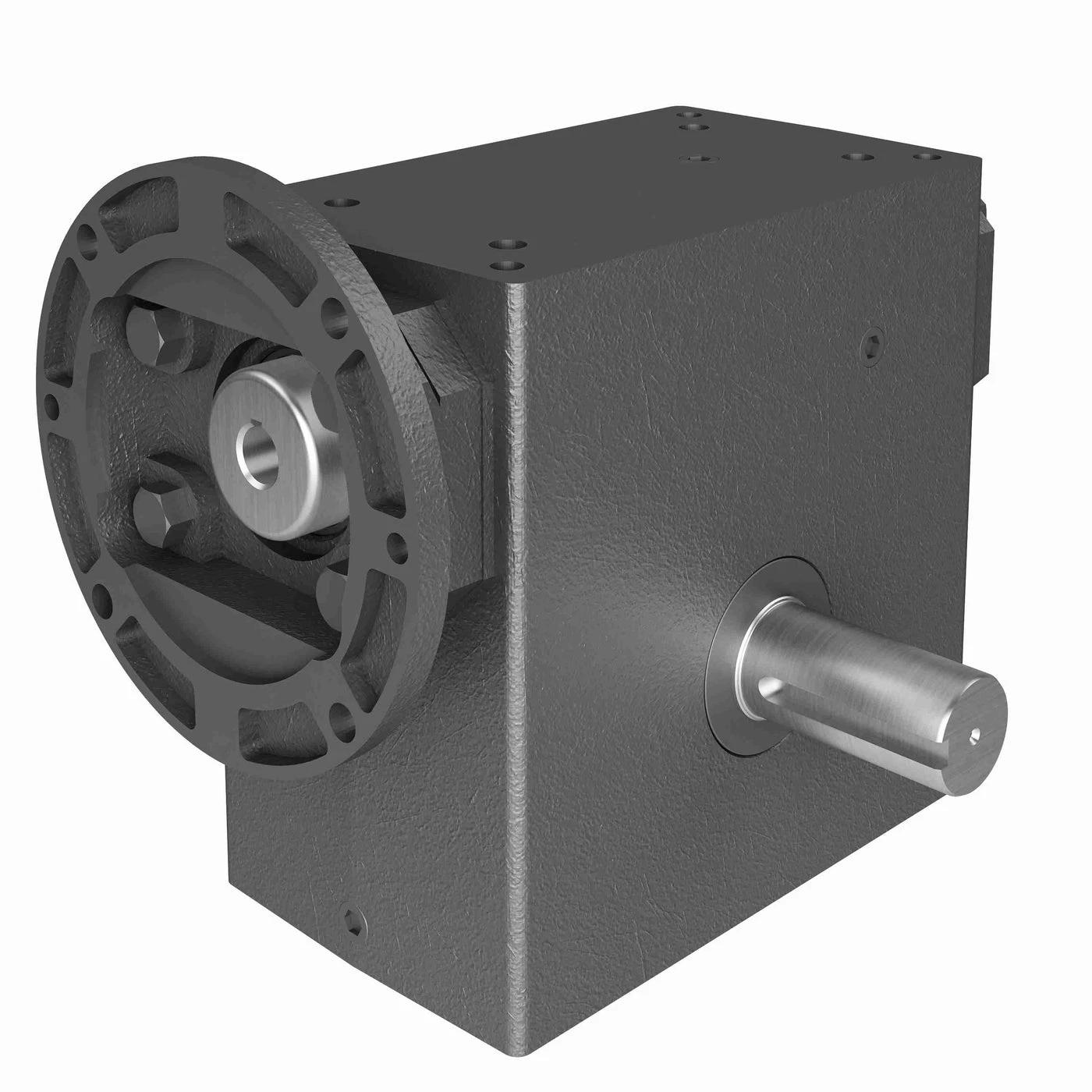

0230-14898 | 7/8" | 29.2 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 1 17/20 hp | 140TC | 2706 lbs.-in. | 1 hp to 2 hp | Right | €1,676.91 | |
 |
0230-14836 | 5/8" | 43.8 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 2 3/4 hp | 56C | 2906 lbs.-in. | 2 hp to 3 hp | Left | €1,936.83 | |
 |
0230-14857 | 1 1/8" | 87.5 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 4.59 hp | 180TC | 2686 lbs.-in. | 3 hp to 5 hp | Left | €1,936.83 | |
 |
0230-14835 | 5/8" | 58.3 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 3 14/25 hp | 56C | 2943 lbs.-in. | 3 hp to 5 hp | Left | €1,936.83 | |
 |

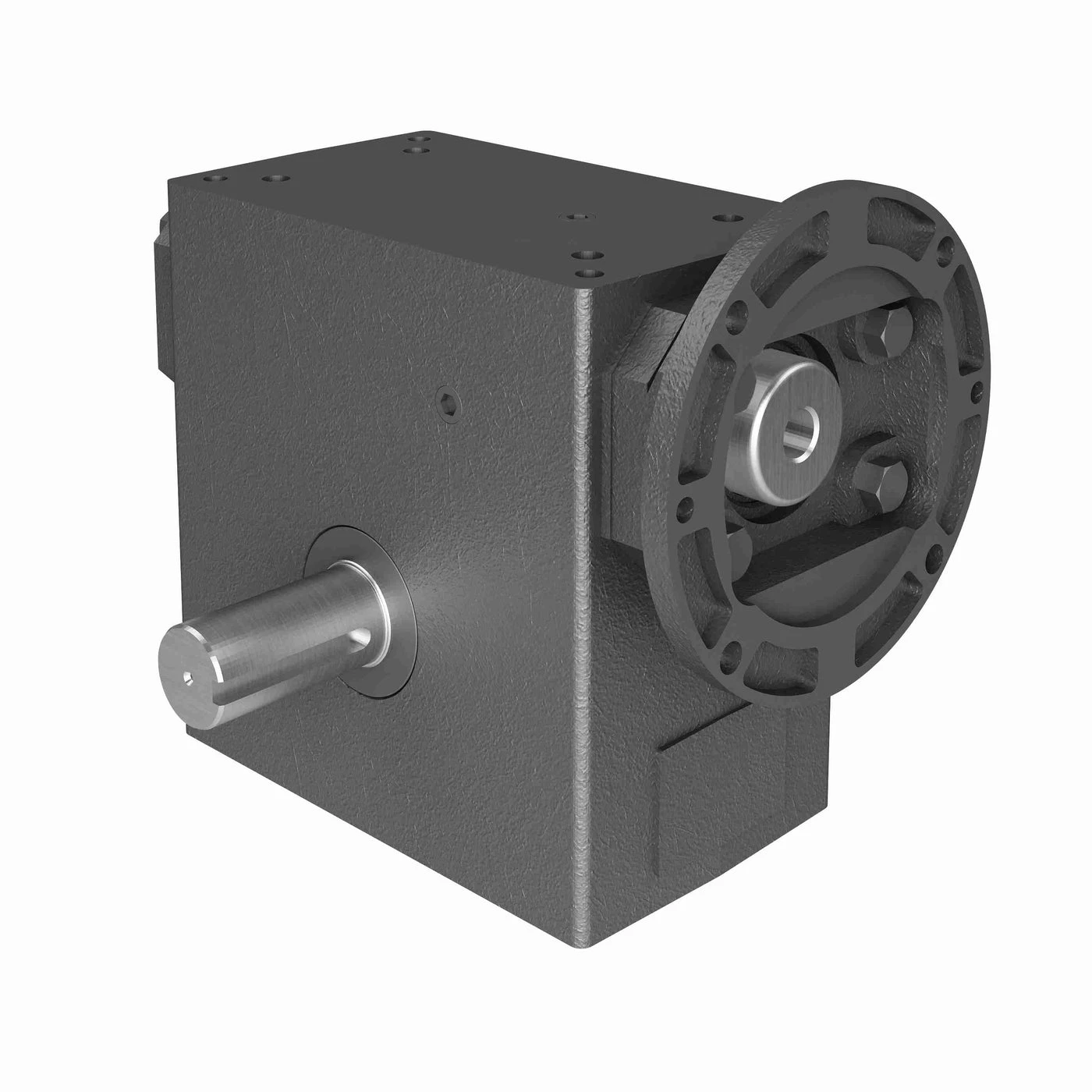

0230-14832 | 5/8" | 117 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 5.57 hp | 56C | 2498 lbs.-in. | 5 hp to 7 1/2 hp | Left | €1,936.83 | |
 |
0230-14838 | 5/8" | 29.2 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 1 17/20 hp | 56C | 2706 lbs.-in. | 1 hp to 2 hp | Left | €1,676.91 |
