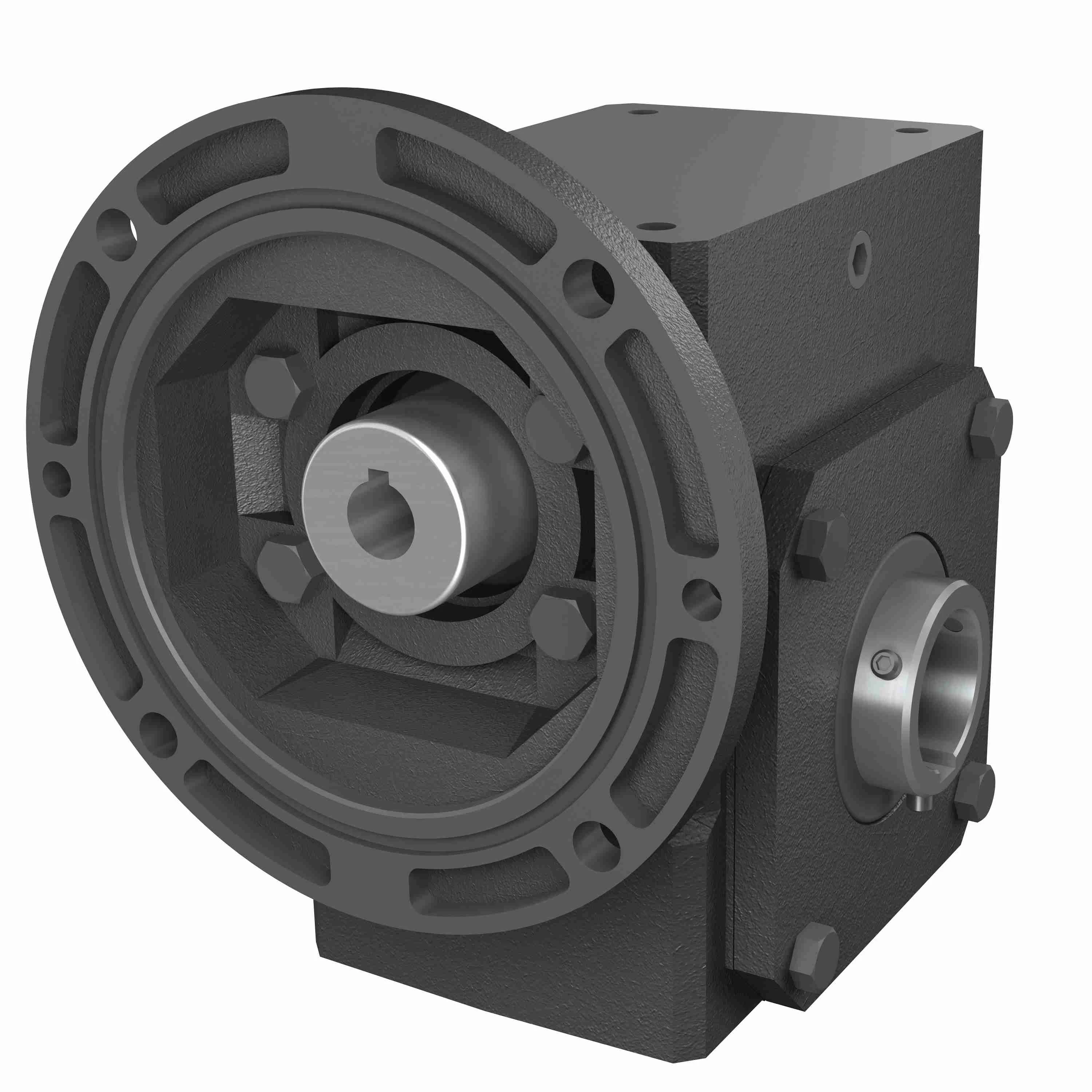

HUB CITY 0230-05075 Worm Reducer, 2.17 Hp, 1.000 Inch I.D, 0.875 Inch O.D, Cast Iron
Get it by Monday, Dec 22
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 2.38" |
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 2 hp to 3 hp |
| Input Dia. | 7/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 2.17 hp |
| Output Dia. | 1" |
| Output Rpm | 87.5 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Datasheet | hub-city-0230-05075.pdf |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 20:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 1245 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 17.1 |
Documentation:
Product Variants
| Product | Model | Gear Type | Max. Input Hp | Housing Material | Frame Size | Price | |
|---|---|---|---|---|---|---|---|
 |

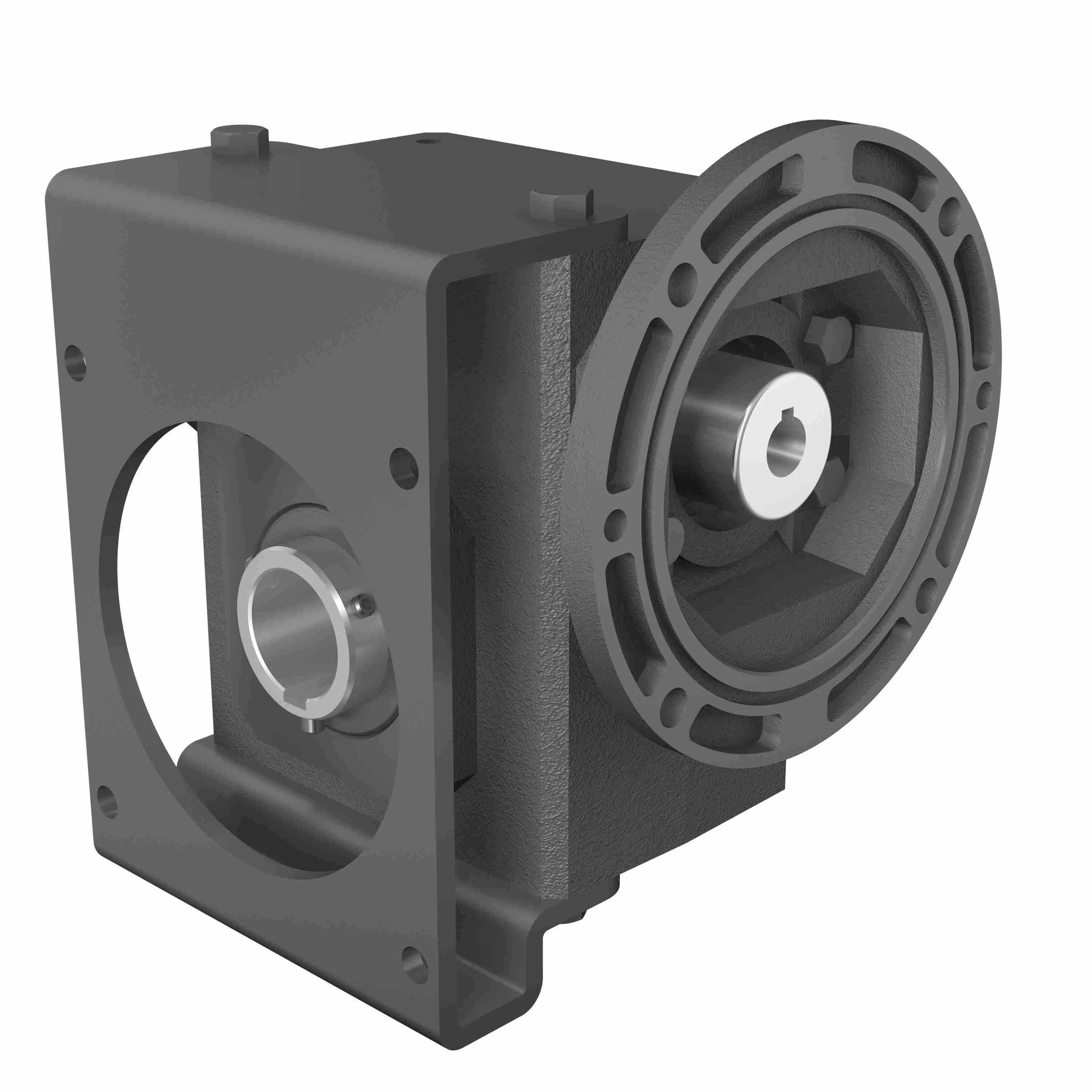

0230-05221 | Worm | - | Cast Iron | - | - | RFQ
|
