HUB CITY 0230-01353 Worm Reducer, 1.63 Hp, 0.750 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Jul 14
€708.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1 3/4" , 1" to 3 1/4" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | Shaft |
| Key Way Size | 3/16" x 3/32" |
| Max. Input Hp | 1.63 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 3/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Speed | 175 RPM |
| Output Torque | 250 lbs.-in. to 500 lbs.-in. |
| Overhung Load | 550 |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 10:1 |
| Service Factor | 1 |
| Style | A |
| Torque | 491 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 24.13 |
Product Variants
| Product | Model | max. input hp | center distance | ratio | gear type | output torque | input style | housing material | no. of gear reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

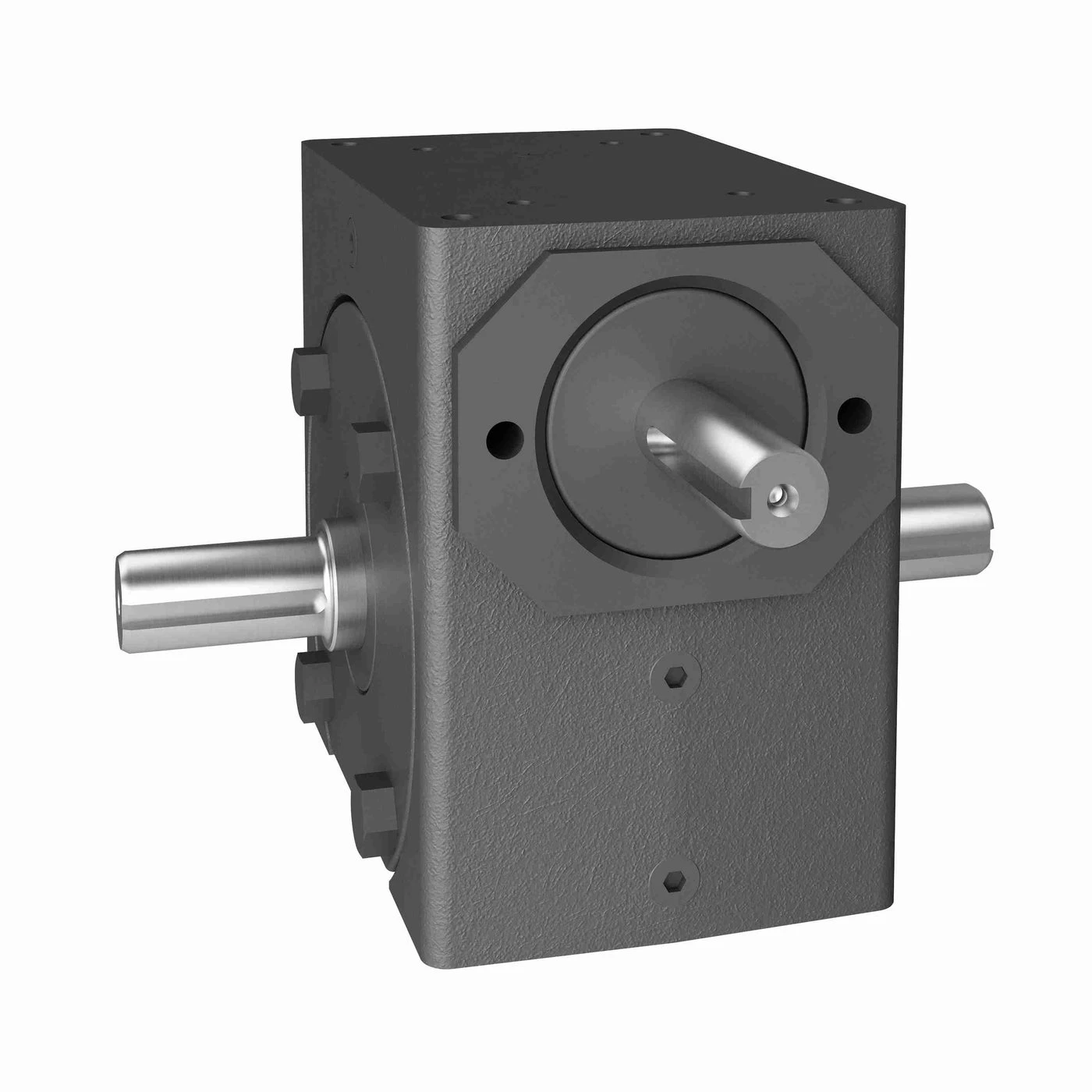

0230-01352 | 2 1/20 hp | 1 3/4" | 7.5:1 | Worm | 250 lbs.-in. to 500 lbs.-in. | Shaft | Cast Iron | 1 | €743.78 |
