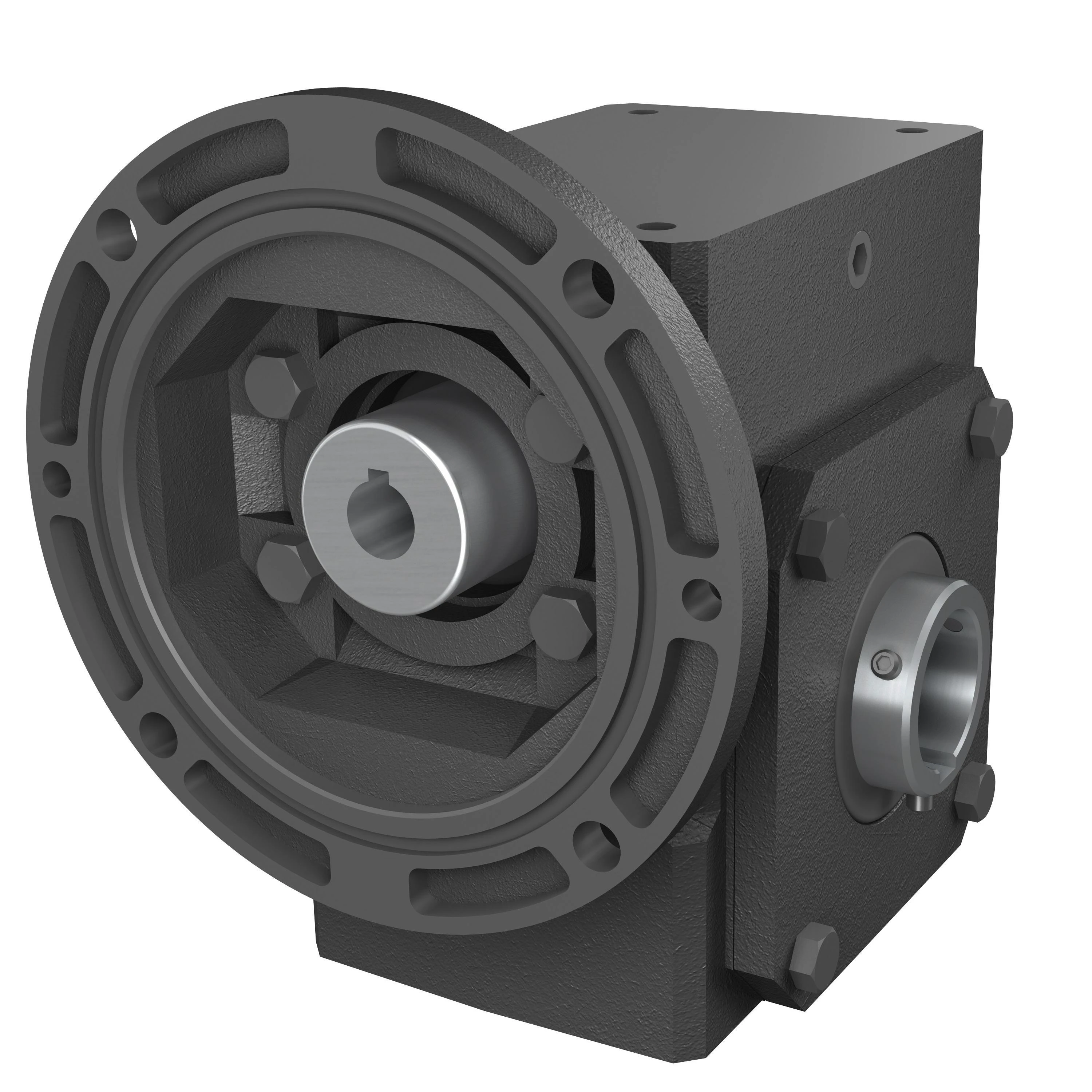

HUB CITY 0230-00850 Worm Reducer, 0.33 Hp, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Get it by Tuesday, Apr 14
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Speed Reducer |
| Center Distance | 1.54" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Diameter | 5/8" |
| Input Hp | 33/100 hp |
| Input Style | C Face Quill |
| Motor Frame Size | 56C |
| Output | 29.2 RPM |
| Output Diameter | 5/8" |
| Output Shaft | Hollow Bore |
| Output Torque Rating | 359 lbs.-in. |
| Ratio | 60:1 |
| Style | B |
Shipping Info:
| Ship weight (kg) | 7.2 |
Product Variants
| Product | Model | gear type | max. input hp | center distance | input style | output shaft | ratio | output | output diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0230-01429 | Worm | 3/4 hp | 1 3/4" | Shaft | Hollow Bore | 30:1 | - | - | €1,180.82 | |
 |
0230-02449 | Worm | - | 2.06" | Shaft | Hollow Bore | 20:1 | 87.5 RPM | 1 1/4" | - | RFQ
|
 |
0230-02965 | Worm | 1 1/2 hp | 2.06" | C Face Quill | Hollow Bore | 20:1 | - | - | €1,531.02 | |
 |
0230-15218 | Worm | 3 23/25 hp | 3 1/4" | C Face Quill | Hollow Bore | 25:1 | - | - | €2,595.69 | |
 |
0230-24293 | Double Worm | - | 2.63" | C Face Quill | Shaft | 1000:1 | 1.75 RPM | 1 1/4" | - | RFQ
|
 |
0230-14603 | Worm | 6 19/25 hp | 3 1/4" | Shaft | Shaft | 10:1 | - | - | €1,533.96 | |
 |
0230-00737 | Worm | - | 1.54" | C Face Quill | Shaft | 20:1 | 87.5 RPM | 3/4" | €876.16 |
