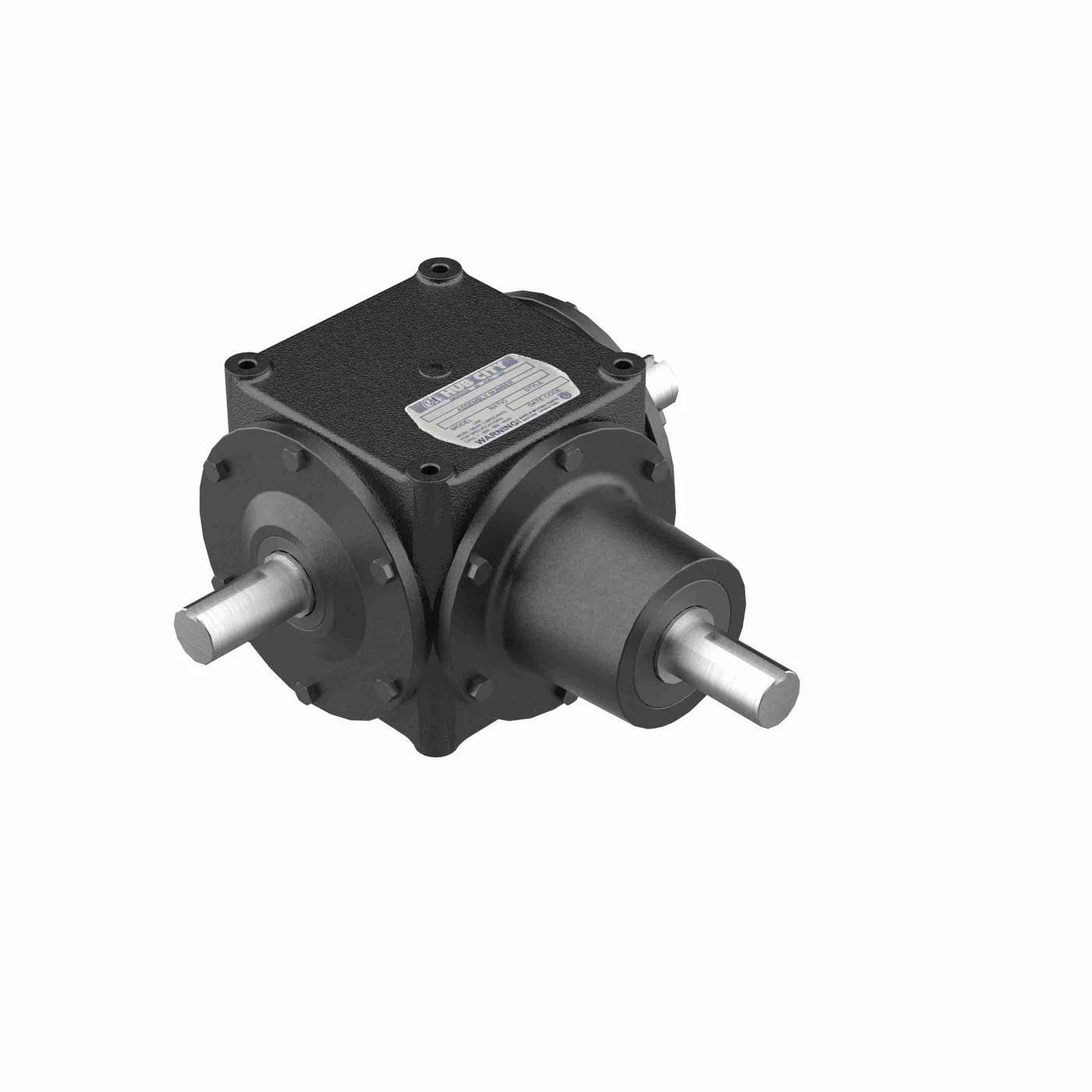

HUB CITY 0220-59349 Bevel Gear Drive, 132 HP, 1.500 Inch I.D, 1.500 Inch O.D, Ductile Iron
Get it by Tuesday, Sep 1
€6,316.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 800 |
| Gear Type | Spiral Bevel |
| Housing Height | 8 3/16" |
| Housing Length | 12 19/32" |
| Housing Material | Ductile Iron |
| Housing Width | 9 29/32" |
| Input Dia. | 1 1/2" |
| Input Hp @ 1750 Rpm | 132 hp |
| Input Style | Shaft |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Speed | 1750 RPM |
| Output Torque | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | G |
| Torque | 4750 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 55.35 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 39.37 |
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Torque | Output Shaft Direction | Style | Gear Type | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-59303 | 690 RPM | 5000 lbs.-in. to 10000 lbs.-in. | 56 1/5 hp | 5130 lbs.-in. | Left Or Right | D, E | Straight Bevel | 1:1 | €2,639.89 | |
 |
0220-59336 | 672.5 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 33 hp | 3100 lbs.-in. | Double | A, B | Straight Bevel | 1.71:1 | €4,065.22 | |
 |
0220-59316 | 639.1 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 45 hp | 4350 lbs.-in. | Double | A, B | Straight Bevel | 1.33:1 | €3,226.37 | |
 |
0220-59301 | 690 RPM | 5000 lbs.-in. to 10000 lbs.-in. | 56 1/5 hp | 5130 lbs.-in. | Double | A, B | Straight Bevel | 1:1 | €2,639.89 | |
 |
0220-59331 | 1035 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 42 hp | 2560 lbs.-in. | Double | A, B | Straight Bevel | 11.5:1 | €3,226.37 | |
 |
0220-59302 | 690 RPM | 5000 lbs.-in. to 10000 lbs.-in. | 56 1/5 hp | 5130 lbs.-in. | Left Or Right | C, F | Straight Bevel | 1:1 | €2,639.89 | |
 |
0220-59337 | 672.5 RPM | 2500 lbs.-in. to 5000 lbs.-in. | 33 hp | 3100 lbs.-in. | Left Or Right | C, F | Straight Bevel | 1.71:1 | €3,226.37 |
