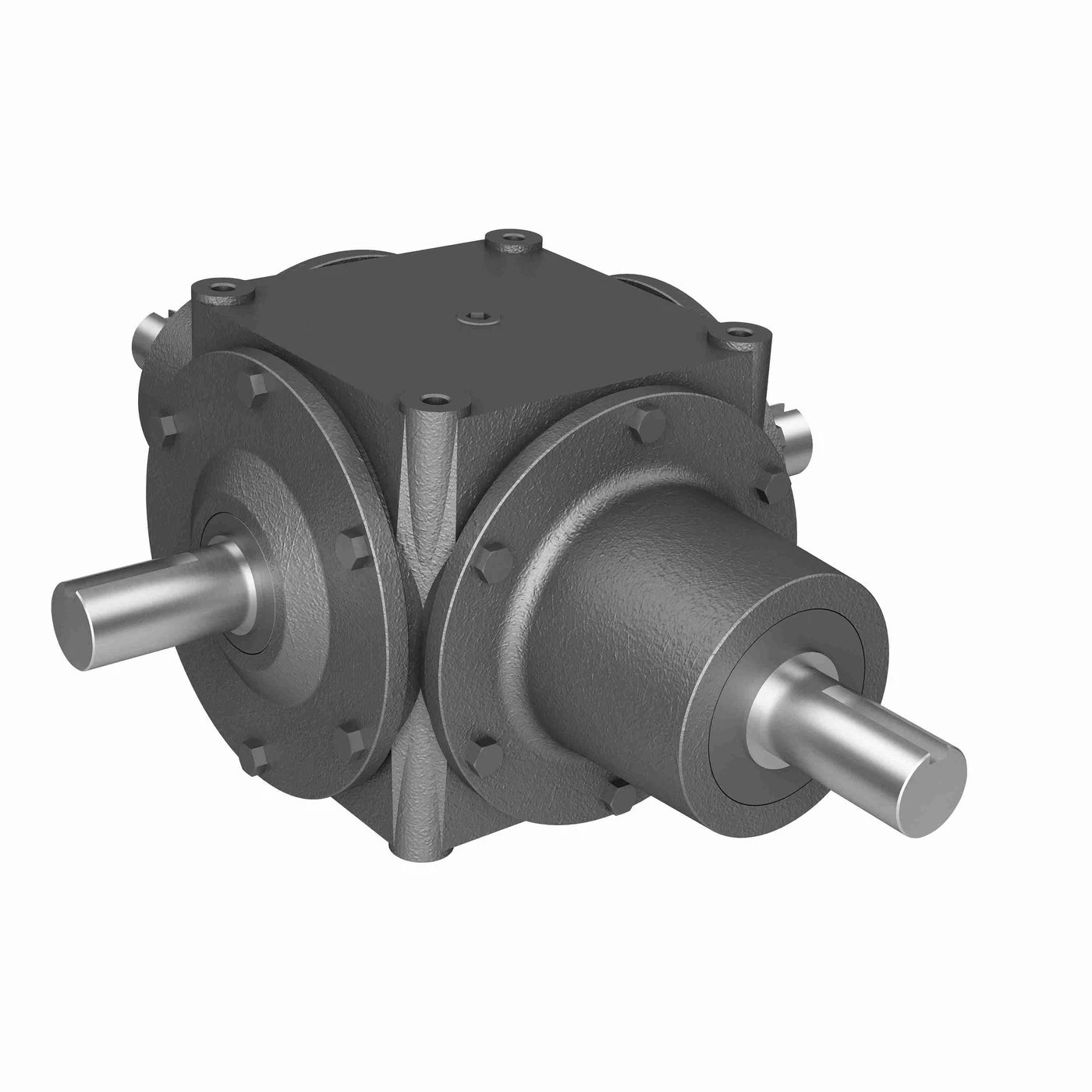

HUB CITY 0220-59305 Bevel Gear Drive, 56.2 HP, 1.500 Inch I.D, 1.500 Inch O.D, Ductile Iron
Get it by Tuesday, Dec 23
€6,067.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 800 |
| Gear Type | Straight Bevel |
| Housing Height | 8 3/16" |
| Housing Length | 12 19/32" |
| Housing Material | Ductile Iron |
| Housing Width | 9 29/32" |
| Hp Range | 50 hp to 75 hp |
| Input Dia. | 1 1/2" |
| Input Hp | 56 1/5 hp |
| Input Hp @ 1750 Rpm | 56 1/5 hp |
| Input Style | Shaft |
| Max. Input Hp | 56 1/5 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Rpm | 690 RPM |
| Output Shaft | Shaft |
| Output Shaft Direction | Double |
| Output Torque Range | 5000 lbs.-in. to 10000 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | Gg |
| Torque Rating | 5130 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 63.45 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 45.72 |
Product Variants
| Product | Model | Gear Type | Max. Input Hp | Hp | Gear Ratio | Housing Material | Output Type | Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
0220-59303 | Straight Bevel | 56 1/5 hp | - | - | Ductile Iron | - | - | - | €2,639.89 | |
![]() |
0220-59336 | Straight Bevel | 33 hp | - | - | Ductile Iron | - | - | - | €4,065.22 | |
![]() |
0220-59316 | Straight Bevel | 45 hp | - | - | Ductile Iron | - | - | - | €3,226.37 | |
![]() |
0220-59301 | Straight Bevel | 56 1/5 hp | - | - | Ductile Iron | - | - | - | €2,639.89 | |
![]() |
0220-59331 | Straight Bevel | 42 hp | - | - | Ductile Iron | - | - | - | €3,226.37 | |
![]() |
0220-59302 | Straight Bevel | 56 1/5 hp | 56 1/5 hp | 1:1 | Ductile Iron | Shaft | Ductile Iron | Four Bolt Surface | €2,639.89 | |
![]() |
0220-59337 | Straight Bevel | 33 hp | - | - | Ductile Iron | - | - | - | €3,226.37 |
