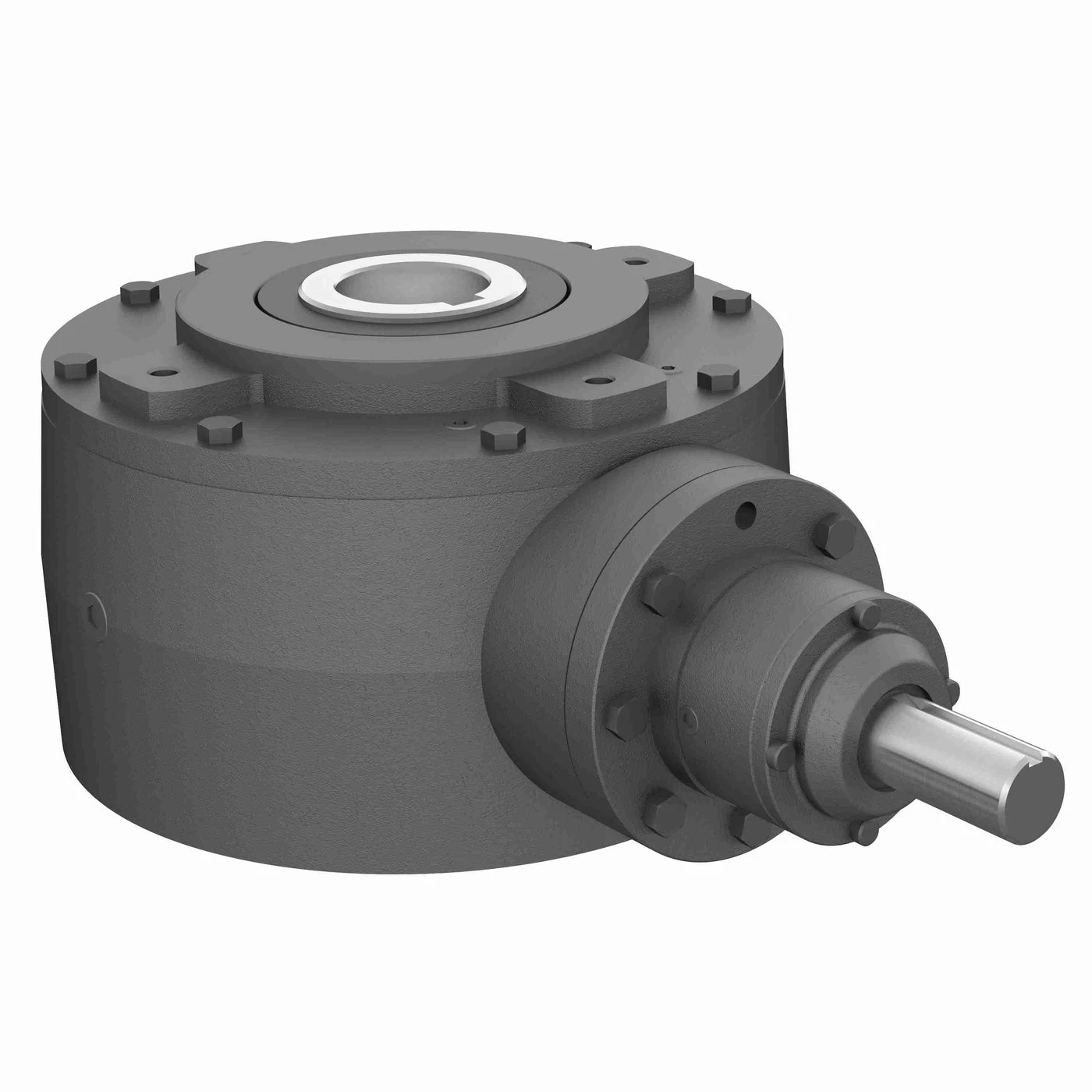

HUB CITY 0220-04411 Bevel Gear Drive, 28.5 HP, 1.250 Inch I.D, 2 Inch O.D, Cast Iron
Get it by Friday, Aug 28
€5,231.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 920 |
| Gear Type | Spiral Bevel |
| Housing Height | 12 1/16" |
| Housing Length | 16 7/8" |
| Housing Material | Cast Iron |
| Housing Width | 8 1/4" |
| Input Dia. | 1 1/4" |
| Input Hp @ 1750 Rpm | 28 1/2 hp |
| Input Style | Shaft |
| No. Of Gear Reductions | 1 |
| Output Dia. | 2" |
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Speed | 262.4 RPM |
| Output Torque | 5000 lbs.-in. to 10000 lbs.-in. |
| Product Datasheet | hub-city-0220-04065.pdf |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 6.67:1 |
| Service Factor | 1 |
| Style | STD |
| Torque | 6828 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 64.35 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 52.07 |
| Ship width (cm) | 31.12 |
Documentation:
Product Variants
| Product | Model | Output Dia. | Output Speed | Output Shaft Direction | Ratio | Input Hp @ 1750 Rpm | Torque | Output Torque Rating | Output | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-04405 | 2.438" | - | Left, Right | 4.111 | - | - | 9780 lbs.-in. | 425.8 RPM | €5,231.65 | |
 |
0220-04417 | 2.438" | 538.5 RPM | Left Or Right | 3.25:1 | 80.51 hp | 9420 lbs.-in. | - | - | €6,898.83 | |
 |
0220-04409 | 2.438" | 262.4 RPM | Left Or Right | 6.67:1 | 28 1/2 hp | 6828 lbs.-in. | - | - | €5,231.65 | |
 |
0220-04429 | 2.438" | 314.2 RPM | Left Or Right | 5.57:1 | 39 9/50 hp | 7855 lbs.-in. | - | - | €6,277.98 | |
 |
0220-04401 | 2.438" | - | Left, Right | 4.861 | - | - | 8040 lbs.-in. | 360.1 RPM | €6,591.87 | |
 |
0220-04402 | 1.938" | - | Left, Right | 4.861 | - | - | 8040 lbs.-in. | 360.1 RPM | €6,591.87 |
