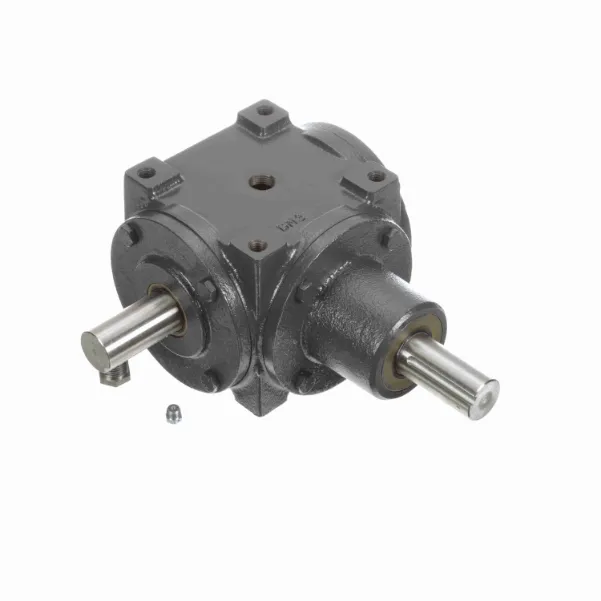

HUB CITY 0220-03520 Bevel Gear Drive, 46 HP, 1.250 Inch I.D, 1.250 Inch O.D, Cast Iron
Get it by Monday, Aug 31
€1,509.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bevel Gear Drive |
| Gear Drive Size | 66 |
| Gear Type | Spiral Bevel |
| Housing Height | 5 5/8" |
| Housing Length | 8 11/16" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/4" |
| Input Dia. | 1 1/4" |
| Input Hp @ 1750 Rpm | 46 hp |
| Input Style | Shaft |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/4" |
| Output Shaft | Shaft |
| Output Shaft Direction | Left Or Right |
| Output Speed | 1750 RPM |
| Output Torque | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Bevel Gear Drives |
| Product Type | Right Angle |
| Ratio | 1:1 |
| Service Factor | 1 |
| Style | D, E |
| Torque | 1650 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 18.72 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 31.75 |
Product Variants
| Product | Model | Output Dia. | Output Speed | Output Torque | Max. Input Hp | Torque | Output Shaft Direction | Style | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0220-03535 | 1 1/4" | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 24 1/5 hp | 1320 lbs.-in. | Double | G | Straight Bevel | €2,198.23 | |
 |
0220-03546 | 1 1/4" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 15 hp | 810 lbs.-in. | Double | A, B | Straight Bevel | €1,620.68 | |
 |
0220-03602 | 1 1/4" | 583.3 RPM | 500 lbs.-in. to 1000 lbs.-in. | - | 975 lbs.-in. | Left Or Right | D, E | Spiral Bevel | €2,362.45 | |
 |
0220-03516 | 1 1/4" | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 24 1/5 hp | 1320 lbs.-in. | Left Or Right | C, F | Straight Bevel | €1,235.40 | |
 |
0220-03536 | 1 1/4" | 1150 RPM | 1000 lbs.-in. to 2500 lbs.-in. | 24 1/5 hp | 1320 lbs.-in. | Double | Gg | Straight Bevel | €1,983.81 | |
 |
0220-03549 | 1 1/4" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 15 hp | 810 lbs.-in. | Left Or Right | C, F | Straight Bevel | €1,620.68 | |
|
0220-03547 | 1 1/4" | 1166.7 RPM | 500 lbs.-in. to 1000 lbs.-in. | 15 hp | 810 lbs.-in. | Left Or Right | D, E | Straight Bevel | €1,620.68 |
