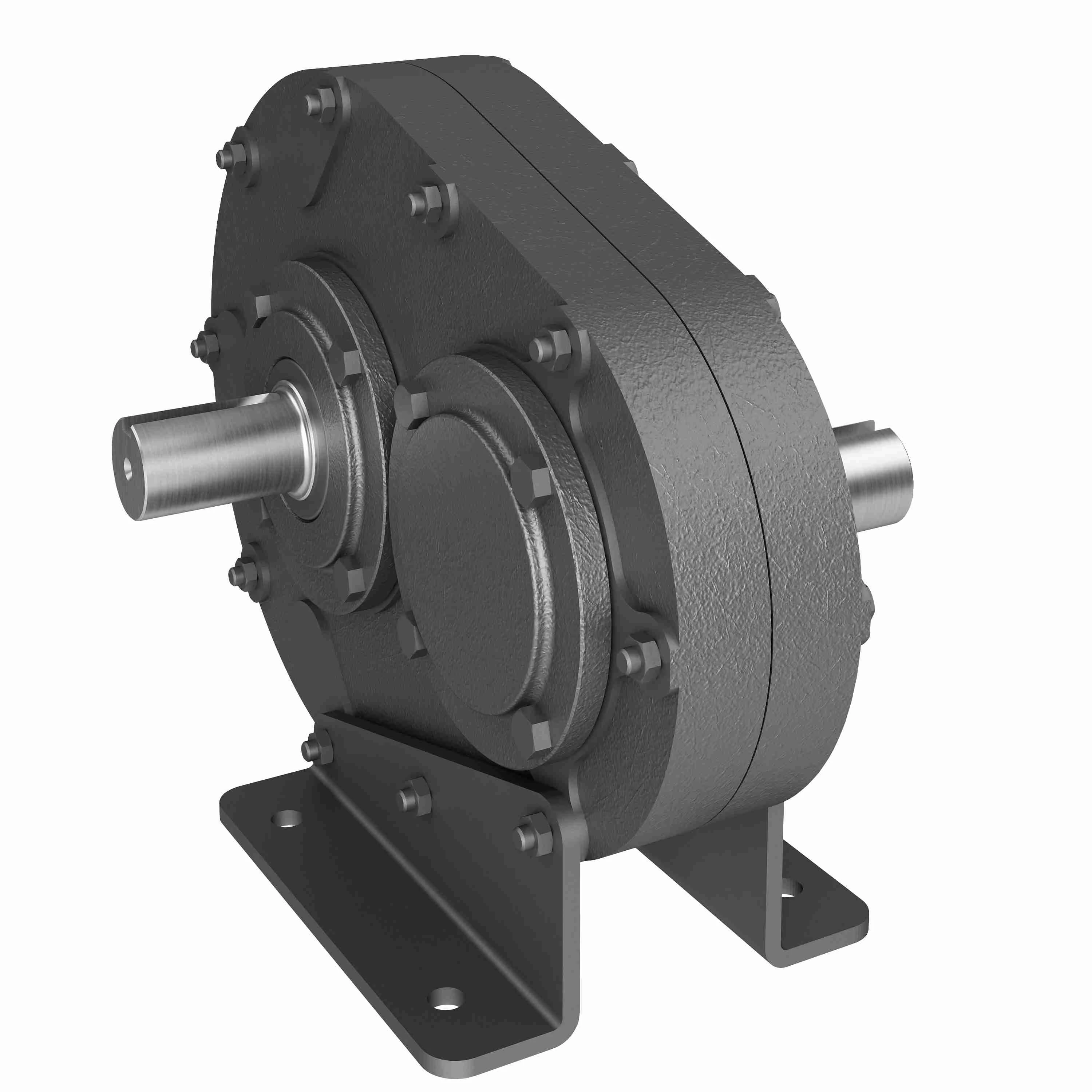

HUB CITY 0220-01013 Parallel Shaft Drive, 1:1 Ratio, 160 HP, 1.5 Inch I.D, 1.5 Inch O.D, Cast Iron
Get it by Wednesday, Aug 26
€2,095.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Parallel Shaft Drives |
| Center Distance | 5.424" |
| Dimensions | 9 3/8" x 11 3/8" x 14 27/32" |
| Efficiency | 97.5% |
| Gear Ratio | 1:1 |
| Gear Type | H |
| Housing Material | Cast Iron |
| Hp | 160 hp |
| Input Dia. | 1 1/2" |
| Input Hp | 160 hp |
| Input Hp @ 1750 Rpm | 160 hp |
| Input Style | Shaft |
| Input Type | Shaft |
| Lubrication Type | Oil |
| Material | Cast Iron |
| Mounting Type | Shaft |
| Output Dia. | 1 1/2" |
| Output Keyway Size | 3/8" x 3/16" |
| Output Shaft | Shaft |
| Output Speed | 1750 RPM |
| Output Torque | 5000 lbs.-in. to 10000 lbs.-in. |
| Output Type | Shaft |
| Product Line | Parallel Shaft Drive |
| Product Type | Parallel |
| Ratio | 1:1 |
| Series | 200 Series |
| Service Factor | 1 |
| Style | A |
| Torque | 5589 lbs.-in. |
| Type | Type H Single Reduction Style A |
Shipping Info:
| Ship weight (kg) | 37.35 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Output Dia. | Input Dia. | Output Speed | Input Hp @ 1750 Rpm | Torque | Style | Output Shaft | Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

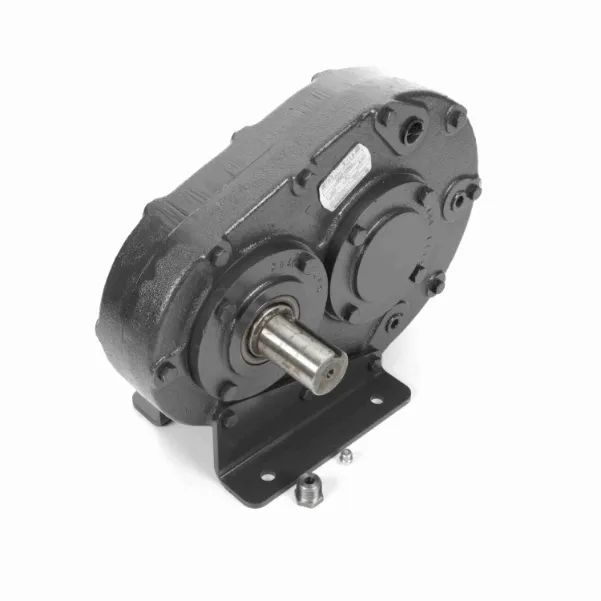

0220-01001 | 1 1/2" | 1 1/2" | 438 RPM | 45 hp | 6288 lbs.-in. | A | Shaft | 4:1 | €2,591.16 | |
 |

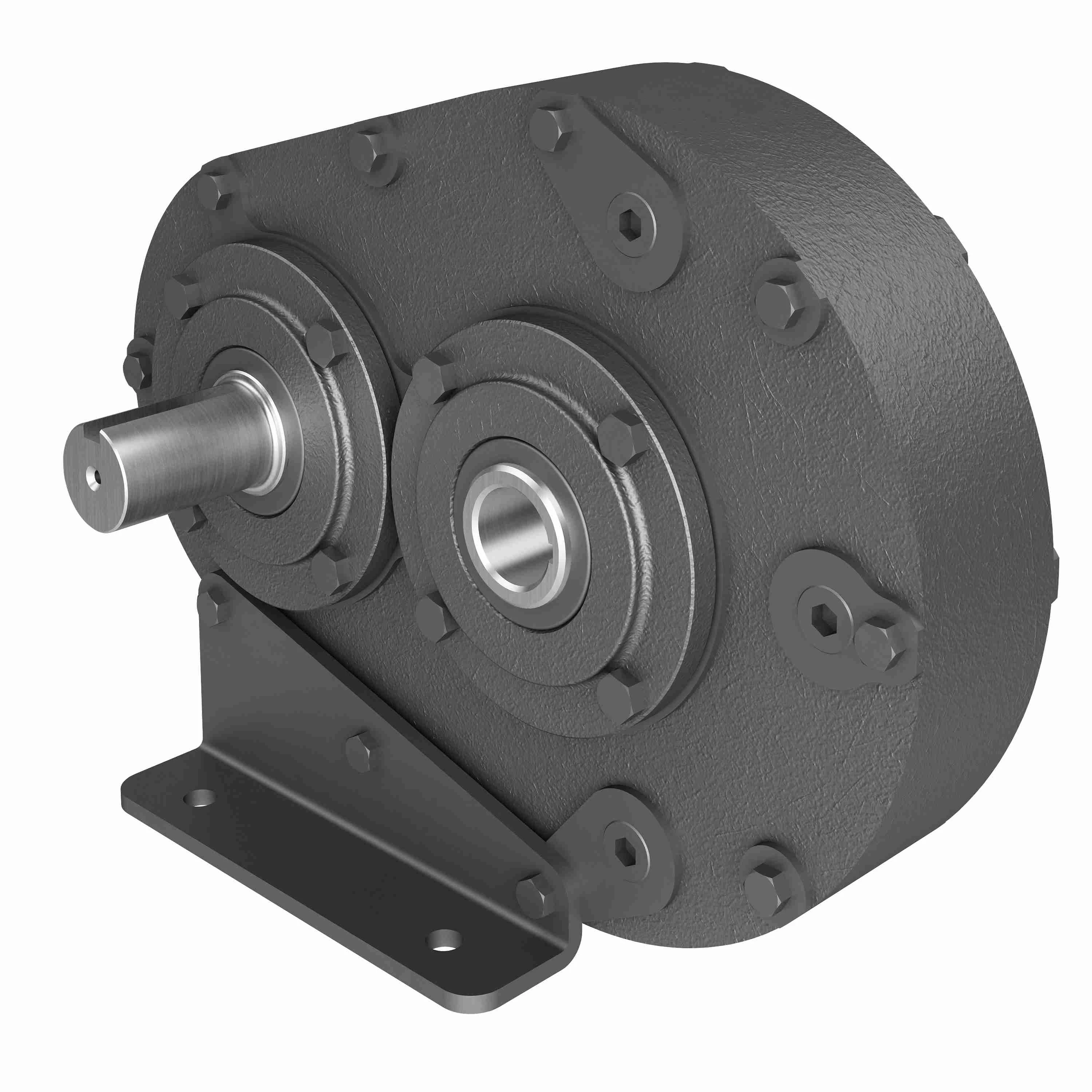

0220-01041 | 1 1/4" | 1 1/4" | 1750 RPM | 160 hp | 5589 lbs.-in. | So | Hollow Bore | 1:1 | €2,511.80 | |
 |

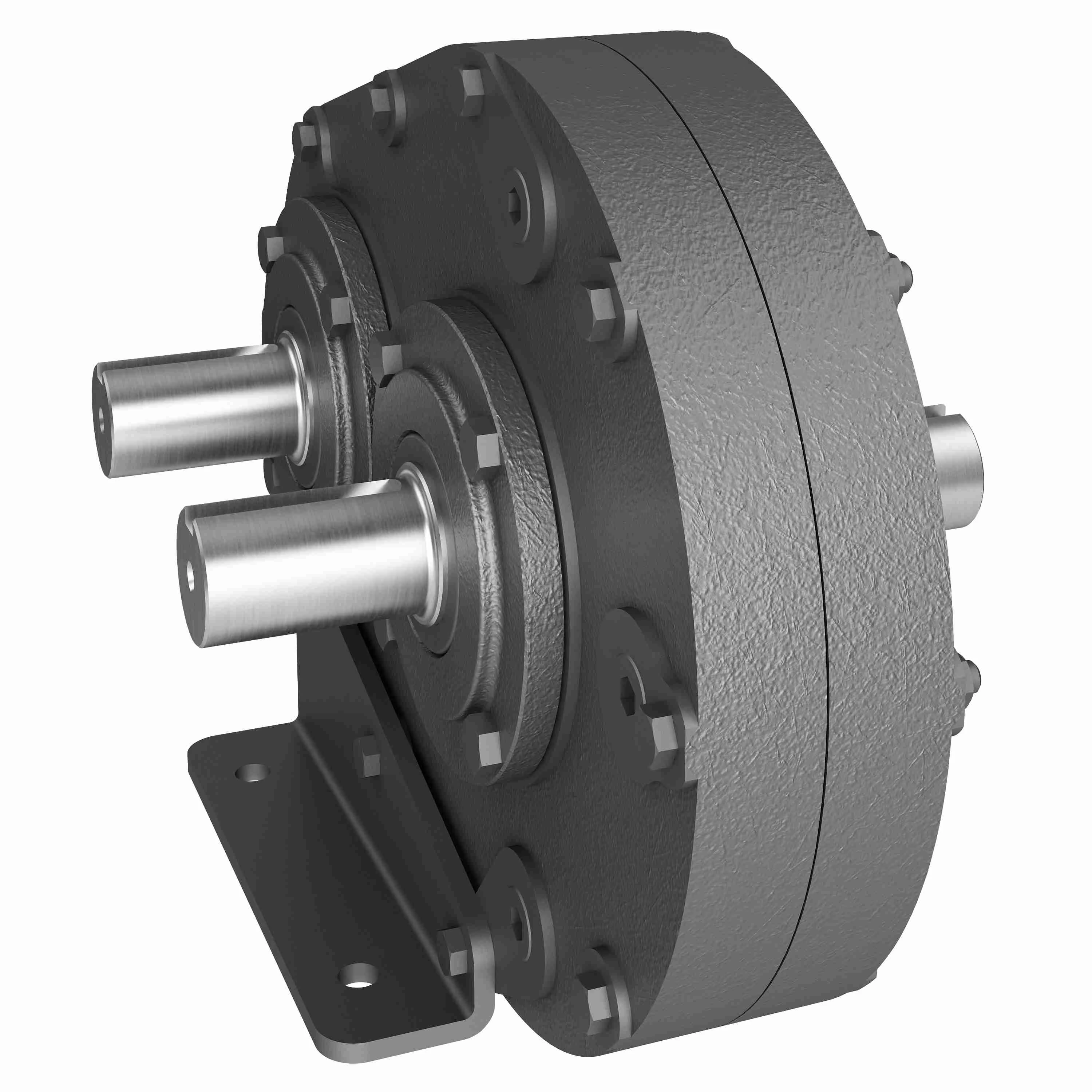

0220-01014 | 1 1/2" | 1 1/2" | 1750 RPM | 160 hp | 5589 lbs.-in. | Do | Shaft | 1:1 | €2,640.83 | |
 |

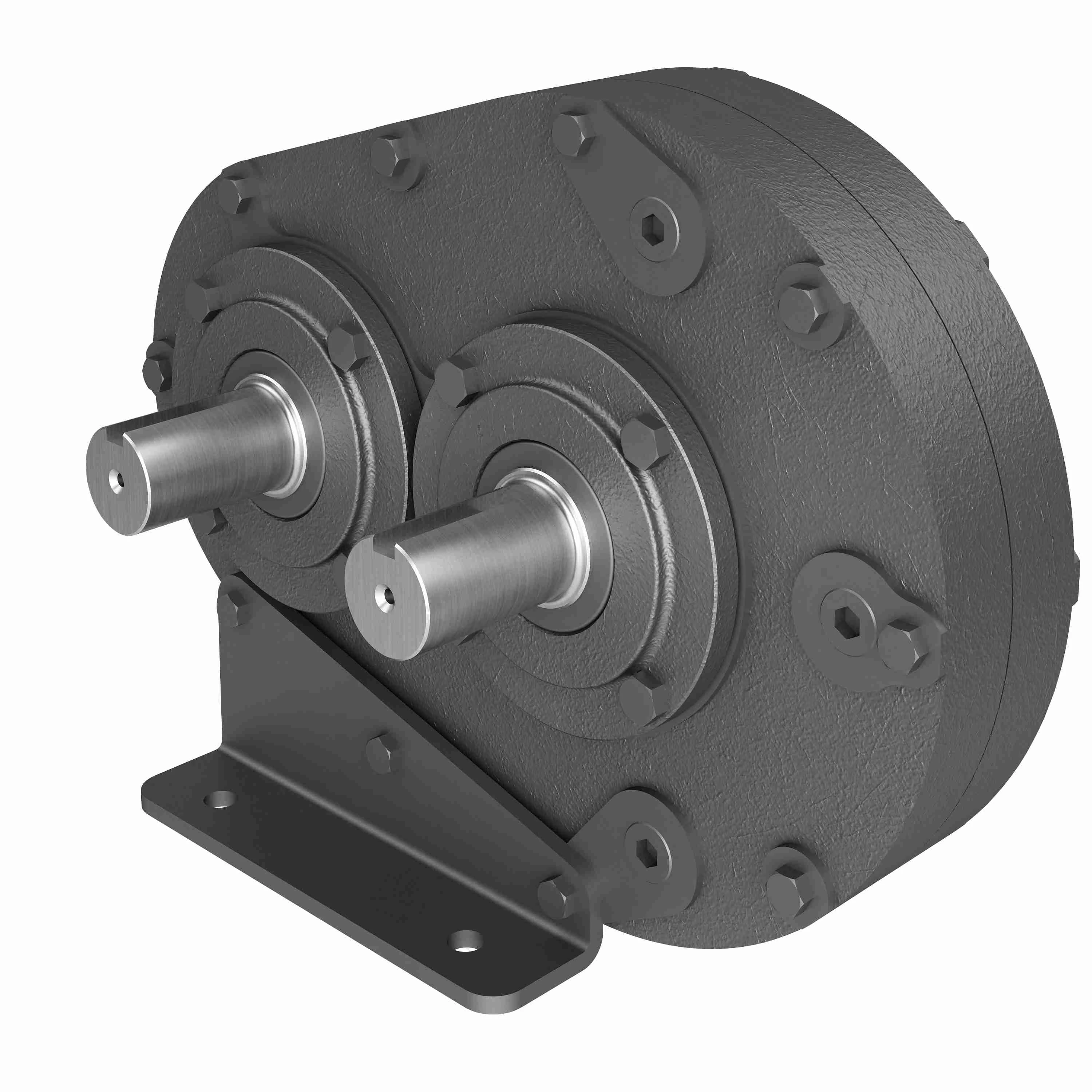

0220-01057 | 1 1/2" | 1 1/2" | 875 RPM | 105 hp | 7336 lbs.-in. | C | Shaft | 2:1 | €1,869.78 | |
 |
0220-01021 | 1 1/2" | 1 1/2" | 1750 RPM | 160 hp | 5589 lbs.-in. | C | Shaft | 1:1 | €2,515.09 | |
 |
0220-01007 | 1 1/2" | 1 1/2" | 875 RPM | 105 hp | 7336 lbs.-in. | A | Shaft | 2:1 | €2,202.42 | |
|
0220-01048 | 1 1/2" | 1 1/2" | 1167 RPM | 132 hp | 6917 lbs.-in. | C | Shaft | 1.5:1 | €3,023.74 |
