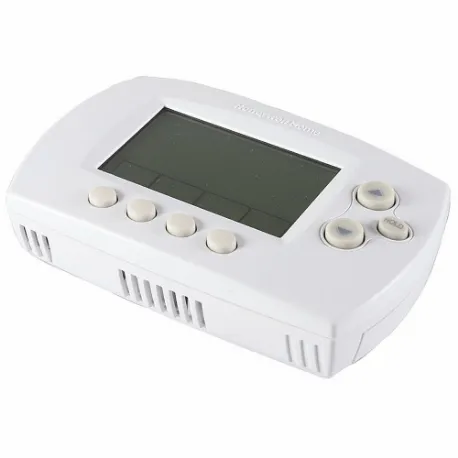

HONEYWELL YTH6320R1001 Wireless Thermostat Kit, Heat and Cool, Auto, 5-1-1/5-2, Horizontal, 1 Zones
Item: CR4DXDModel: YTH6320R1001Cross Ref: 3RCN1
7 In Stock
Ships within 2 days via
10.00% off
€709.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wireless Thermostat Kit |
| Application | Heat And Cool |
| Backlit Screen | Yes |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Battery Type | (2) AA Batteries |
| Changeover Type | Automatic |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux, Hydronic Systems |
| Contact Rating | 18/30V AC |
| Control Type | Push Button |
| Dehumidification Control | No |
| Differential Temp. | 1°F |
| Digit Size | Standard |
| Display Type | Digital |
| Dual Transformer Compatible | No |
| Fan Settings | Auto On |
| Frequency | 50/60 Hz |
| Housing Color | White |
| Humidification Control | No |
| Includes | Equipment Interface Module, Return Air Sensor |
| Includes Batteries | Yes |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Low-battery Indicator | Yes |
| Max. Control Temp. | 99°F |
| Max. Operating Temp. | 120°F |
| Maximum Operating Humidity | 90% |
| Millivolt Compatible | No |
| Min. Control Temp. | 40°F |
| Min. Operating Temp. | 32°F |
| Minimum Operating Humidity | 5% |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Number Of Cooling Stages (conventional System) | 2 |
| Number Of Cooling Stages (heat Pump System) | 2 |
| Number Of Heating Stages (conventional System) | 2 |
| Number Of Heating Stages - Heat Pump System | 3 |
| Number Of Zones | 1 |
| Overall Depth | 1 1/2" |
| Overall Height | 5 13/16" |
| Overall Width | 3 9/16" |
| Programmable Fan | No |
| Programming Capability | 5-1-1, 5-2 |
| Remote Sensing Capability | Yes |
| Sensor Location | Remote |
| Shape | Rectangle |
| Stages Conventional | 2 H/2 C Conventional |
| Stages Cool | 2 |
| Stages Heat Pump | 3 H/2 C Heat Pump |
| Stages Heating/cooling | 2 H/2 C Conventional, 3 H/2 C Heat Pump |
| Temp. Settings Per Day | 4 |
| Temperature Limiting | Yes |
| Temperature Readout | Yes |
| Temperature Scale | Celsius, Fahrenheit |
| Temperature Settings Per Day | 4 |
| Temporary Program Override | Yes |
| Terminal Designations | C, G, L, R, RAS, RC, RH, W-O/B, W2-AUX/E, Y, Y2 |
| Thermostat Type | Low Voltage |
| Type | Low Voltage |
| Voltage | 18-30V AC |
| Wifi Capability | No |
| Wireless | Yes |
| Wireless System Compatibility | Redlink |
Shipping Info:
| Ship weight (kg) | 1.45 |
| Ship height (cm) | 14.76 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 9.05 |
| Country of Origin | MX |
Product Variants
| Product | Model | Display Type | Application | Overall Width | Voltage | Dehumidification Control | Control Type | Dual Transformer Compatible | Mounting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TB7100A1000/U | Digital | Heat And Cool | 6" | 24V | Yes | Push Button | No | Horizontal | €395.12 | |
 |

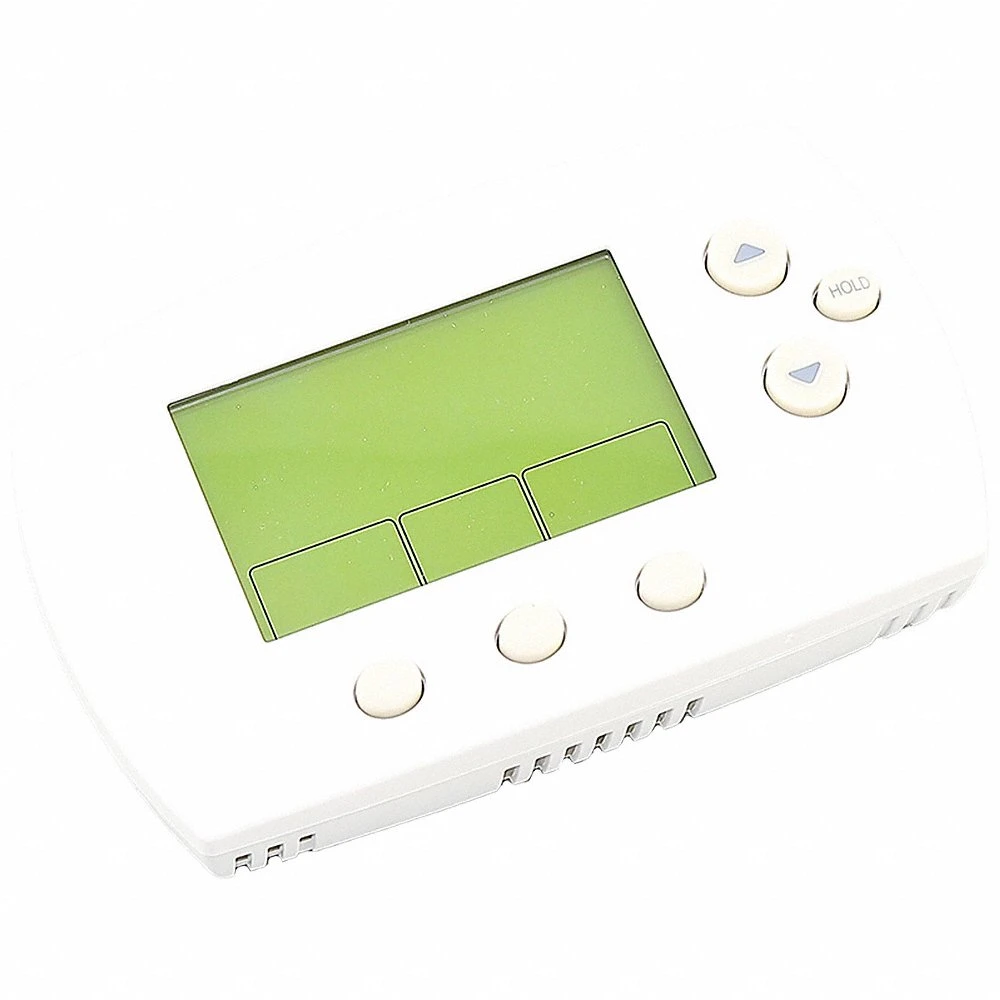

TH6220D1028 | Digital | Heat And Cool | 5 13/16" | 20-30V AC | No | Push Button | Yes | Horizontal | €287.68 | |
 |

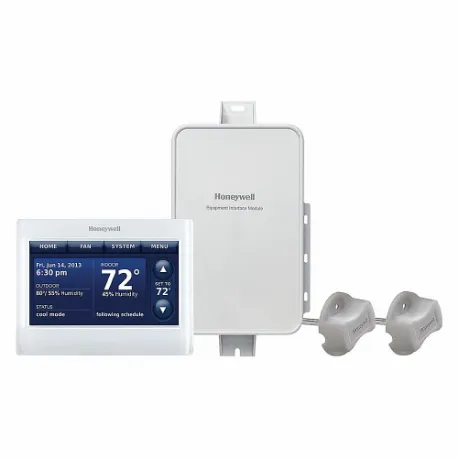

YTHX9421R5085WW | Tri Lingual | Heat And Cool | 4 1/2" | 18-30V AC | Yes | Touch Screen | No | Horizontal | €991.90 | |
 |

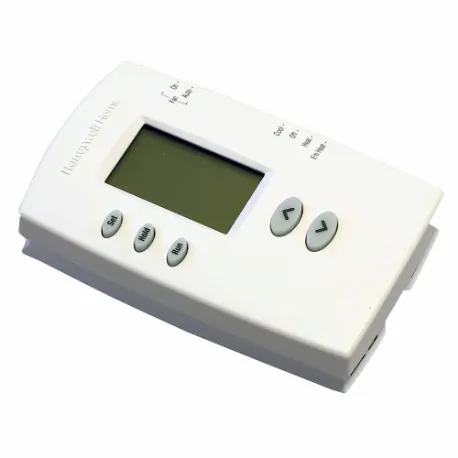

TH2210DV1006/U | Digital | Heat And Cool | 4 5/8" | 20-30V AC | No | Push Button | No | Vertical | €156.23 | |
 |

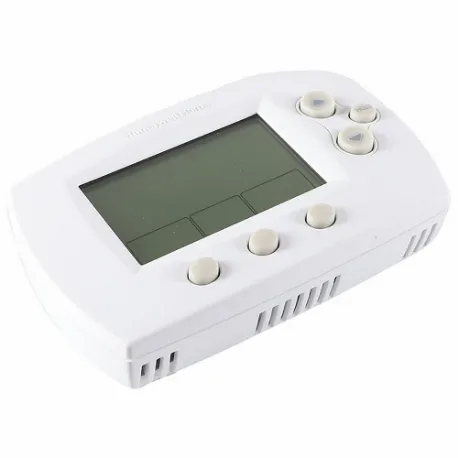

TH6110D1021 | Digital | Heat And Cool | 5 13/16" | 20-30V AC | No | Push Button | Yes | Horizontal | €231.03 | |
 |

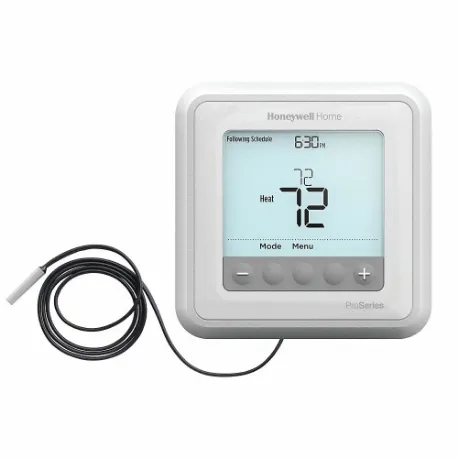

TH6100AF2004/U | Digital | Heat Only | 4 1/16" | 20-30V AC | No | Push Button | No | Horizontal | €243.85 | |
 |

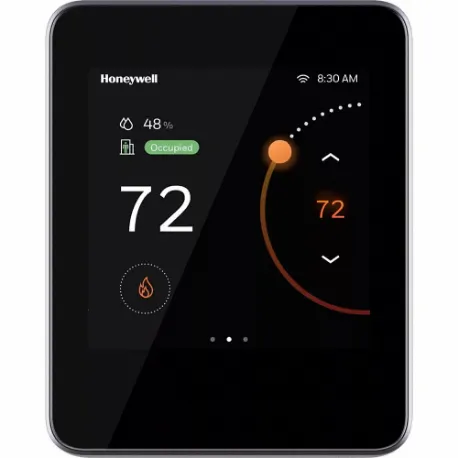

TC500 | Digital | Heat Or Cool | 3 5/8" | 24V | Yes | Touch Screen | Yes | Vertical | €823.96 |
