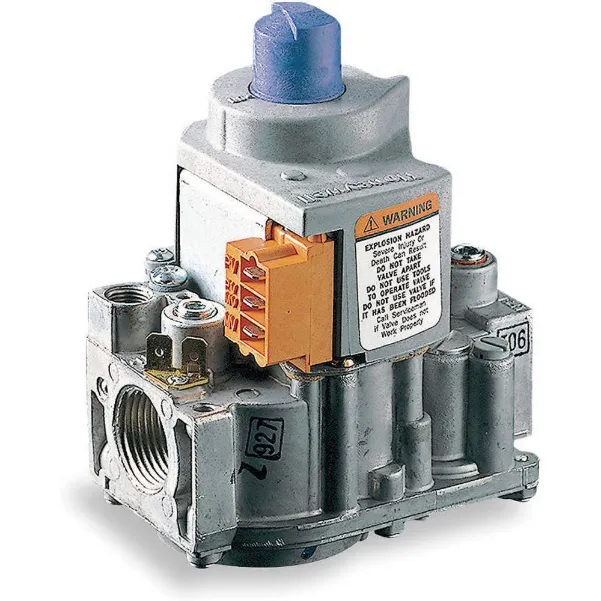

HONEYWELL VR8345M4302 Gas Valve Standard Opening 300000 Btuh
Item: AD7AKVModel: VR8345M4302Cross Ref: 4CZ56
7 In Stock
Ships within 2 days via
10.00% off
€322.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gas Valve |
| Ambient Temp. Range | -40°F to +175°F |
| Amps Ac | 0.7A |
| Ansi Rating | ANSI Z223.1 Nfpa No. 54 |
| Coil Voltage | 24V |
| Compatible Fuel Type | Liquid Propane, Natural Gas |
| Electrical Connections | Quick Connect Terminal |
| Flow Direction | Straight Thru |
| For Media | Liquid Propane, Natural Gas |
| Fuel Conversion Kit Included | Yes |
| Gas Type | Liquid Propane, Natural Gas |
| Heating Capacity - Max. | 415000 btuH |
| Ignition Type | Intermittent Pilot, Hot Surface Ignition, Direct Spark Ignition |
| Ignition Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Inlet Pressure Tap | Yes |
| Inlet Size | 3/4" |
| Inlet/outlet Connection Gender | Female |
| Inlet/outlet Connection Size | 3/4" |
| Inlet/outlet Connection Type | NPT |
| Installation Orientation | Vertical |
| Lp Conversion Kit | Yes |
| Manufacturer Series | VR8345 Series |
| Mechanical Thermostat Included | No |
| Number Of Stages | 1 |
| Opening Characteristic | Fast Opening |
| Operating Temperature - Maximum | 175°F |
| Operating Temperature - Minimum | -40°F |
| Outlet Size | 3/4" |
| Overall Depth | 2 11/16" |
| Overall Height | 5 3/8" |
| Overall Length | 4 1/16" |
| Pilot Generator Kit Included | No |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Port Connection Gender | Female |
| Port Connection Size | 3/4" |
| Pressure Regulator Included | Yes |
| Pressure Setting Range | 3.5" WC |
| Pressure Setting Range | 3.5 in. wc |
| Pressure Tap Connection Size | 1/8" |
| Pressure Tap Connection Type | NPT |
| Pressure Tap Inlet Included | Yes |
| Pressure Tap Outlet Included | Included |
| Reducer Bushing Kit | (2) 3/4 x 1/2" and (1) 1/2 x 3/8" |
| Reducer Bushings | (2) 3/4" x 1/2", 1/2" x 3/8" |
| Sensing Type | Flame Sensor |
| Side Taps | Yes |
| Side Taps Included | No |
| Type | Standard Opening |
| Valve Design | Single |
| Voltage | 24V AC |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 11.94 |
| HS code | 8481809050 |
| Country of Origin | MX |
Product Details:
- Inlet Pressure Tap (Yes)
- LP Conversion Kit (Yes)
- Side Taps (Yes)
