HONEYWELL VR8215T1502 Direct Ignition Gas Valve 1/2
Item: AH7MGMModel: VR8215T1502Cross Ref: 36WH79
7 In Stock
Ships within 2 days via
5.00% off
€222.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gas Valve |
| Ambient Temp. | -40°F to +175°F |
| Amps | 0.5A |
| Ansi Rating | ANSI Z223.1 Nfpa No. 54 |
| Application | Furnaces |
| Btuh | 150000 btuH to 200000 btuH |
| Coil Voltage | 24V |
| Compatible Fuel Type | Liquid Propane, Natural Gas |
| Electrical Connections | Quick Connect Terminal |
| Flow Direction | Straight Thru |
| For Media | Liquid Propane, Natural Gas |
| For Use With | Furnaces |
| Fuel Conversion Kit Included | Yes |
| Gas Type | Liquid Propane, Natural Gas |
| Ignition Type | Direct |
| Included Pilot Generator Kit | Pilot Generator Kit Not Included |
| Inlet Pressure Tap | Yes |
| Inlet Size | 1/2" |
| Inlet/outlet Connection Gender | Female |
| Inlet/outlet Connection Size | 1/2" |
| Inlet/outlet Connection Type | NPT |
| Installation Orientation | Versatile |
| Lp Conversion Kit | Yes |
| Manufacturer Series | VR8215 Series |
| Max. Heating Capacity | 200000 btuH |
| Max. Operating Temp. | 175°F |
| Mechanical Thermostat Included | No |
| Min. Operating Temp. | -40°F |
| No. Of Stages | 2 |
| Opening Characteristic | Slow Opening |
| Overall Depth | 2 11/16" |
| Overall Height | 3 3/8" |
| Overall Length | 4 7/16" |
| Pilot Generator Kit Included | No |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Pressure Regulator Included | Yes |
| Pressure Setting | 3 in. wc to 5 in. wc |
| Pressure Setting Range | 3.0" WC to 5.0" WC |
| Pressure Tap Connection Size | 1/8" |
| Pressure Tap Connection Type | NPT |
| Pressure Tap Inlet Included | Yes |
| Pressure Tap Outlet Included | Included |
| Reducer Bushings | None |
| Sensing Type | Flame Sensor |
| Side Taps Included | No |
| Type | Slow Opening |
| Valve Design | Dual |
| Voltage | 24V AC |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 12.19 |
| Country of Origin | MX |
Product Details:
- LP Conversion Kit : Yes
- Inlet Pressure Tap : Yes
Product Variants
| Product | Model | Amps | Electrical Connections | Overall Height | Overall Depth | Installation Orientation | No. Of Stages | Ambient Temp. | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

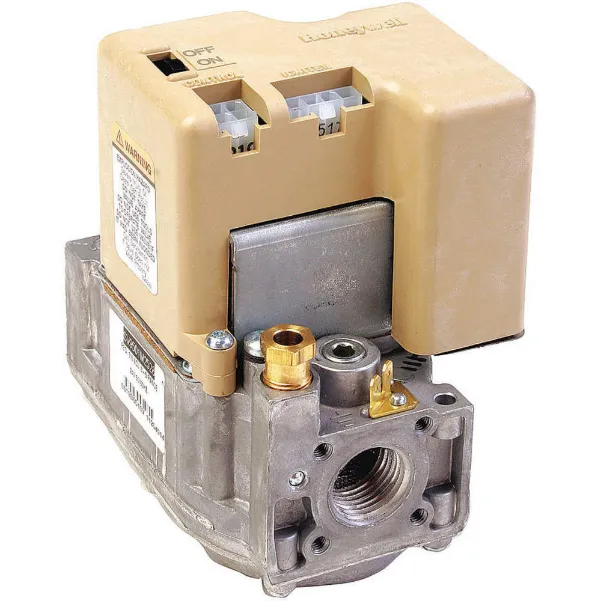

SV9502H2522 | 0.2A | Terminal Blocks | 4 7/8" | 3 3/16" | Vertical | 1 | 0°F to +175°F | 0°F | €847.81 |
