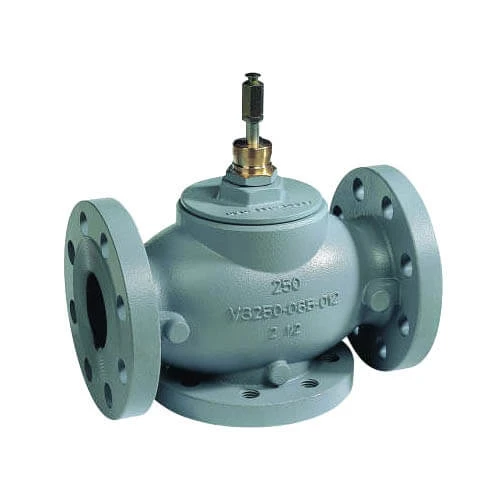

HONEYWELL VGF32EM25 Globe Valve, 3-Way, Mix Flanged
€1,992.90 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Globe Valve |
| Ansi/asme Rating | 250 |
| Application | Mixing |
| Body Pattern | Three Way , Three-Way |
| Bonnet Size | 1 3/8" |
| Connection Method | Flanged |
| Connection Type | Flanged x Flanged |
| Controlled Fluid | Chilled Or Hot Water With Up to 50% Glycol , Chilled, Hot Water With Up To 50% Glycol |
| Family Series | Honeywell HVAC Valves, VGF3 Series |
| Flow Capacity | 70 |
| Flow Capacity (cv) | 70 |
| Flow Type | Equal Percentage |
| Fluid Temp. | 20°F to 250°F |
| Height | 8 3/16" |
| Leakage Rating | Port B Seat Leakage 1.0%Port A Seat Leakage: 0.5% |
| Length | 11 1/2" |
| Material | Cast Iron |
| Max. Pressure | 400 psi |
| Max. Pressure Differential | 87 psi |
| Max. Static Pressure | 175 psi |
| Pipe Size | 2 1/2" |
| Series | VGF3 Series |
| Size | 2 1/2" |
| Static Pressure | 250 psi , ANSI 250 |
| Stem Travel | 3/4" |
| Trim Material | Stainless Steel |
| Valve Action | Step Up to Close A-AB Mixing , Step Up To Close A-Abmixing |
| Valve Type | Globe |
| Width | 7 1/2" |
Product Variants
| Model | Size | Height | Flow Capacity | Series | Trim Material | Body Pattern | Max. Static Pressure | Max. Close Off Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| V5011A1858/U | - | - | 160 | V5011A Series | Stainless Steel | Two Way | 150 psi | 20 psi | €7,601.58 | RFQ
|
| V5011A1767/U | - | - | 100 | V5011A Series | Stainless Steel | Two Way | 150 psi | 20 psi | €3,164.79 | RFQ
|
| V5011A1882/U | - | - | 250 | V5011A Series | Stainless Steel | Two Way | 150 psi | 20 psi | €6,683.36 | RFQ
|
| V5011B1013/U | - | - | 160 | V5011B Series | Stainless Steel | Two Way | 150 psi | 20 psi | €4,352.49 | RFQ
|
| V5011B1047/U | - | - | 250 | V5011B Series | Stainless Steel | Two Way | 150 psi | 20 psi | €13,658.76 | RFQ
|
| V5011B1070/U | - | - | 360 | V5011B Series | Stainless Steel | Two Way | 150 psi | 20 psi | €8,243.85 | RFQ
|
| V5011G1111/U | - | - | 63 | V5011G Series | Stainless Steel | Two Way | 240 psi | 20 psi | €1,329.17 | RFQ
|
