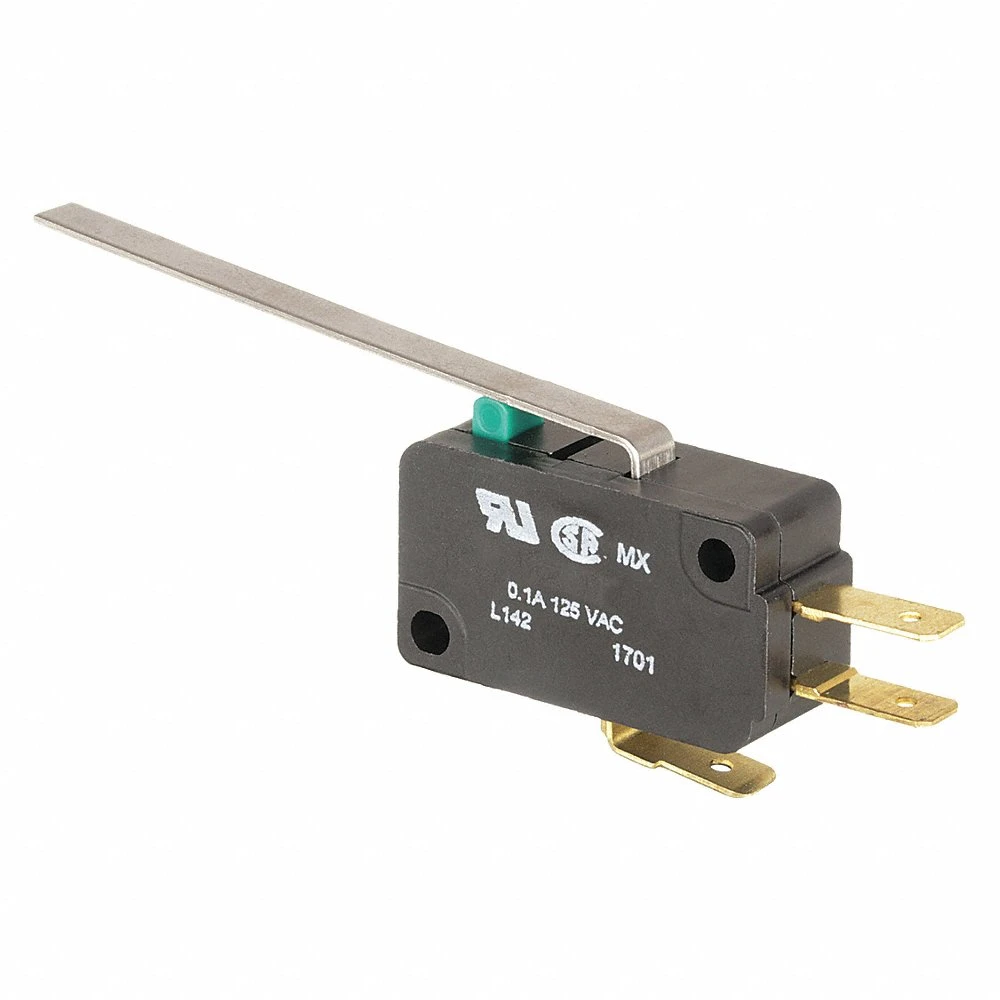

HONEYWELL V7-3S17D8-048 Premium Mini Switch 0.1a Spdt Long Straight Lever
Item: AB7TQKModel: V7-3S17D8-048Cross Ref: 24A293
7 In Stock
Ships within 2 days via
5.00% off
€9.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Premium Miniature Snap Switch |
| Ac Contact Rating | 0.1A @ 125V |
| Actuation Type | Long Straight Lever |
| Actuator Length | 2.34" |
| Actuator Style | Lever |
| Actuator Type | Long Straight Lever |
| Actuator Type-snap Action Switch | Lever, Long |
| Amps | 0.1A |
| Body Depth | 0.4" |
| Body Height | 0.63" |
| Body Material | Polyester |
| Body Width | 1.14" |
| Center Mounting Hole Distance | 0.88" |
| Depth | 2/5" |
| Depth-snap Action Switch | 2/5" |
| Differential Travel | 0.05" |
| Display Qty | 1 |
| Electrical Connection | Quick Connect |
| Height | 0.63" |
| Height-snap Action Switch | 0.63" |
| Length | 1.14" |
| Lever Actuator Length | 2.34" |
| Lever Actuator Length-snap Action Switch | 2.34" |
| Max. Differential Travel | 0.05" |
| Max. Operating Temp. | 365°F |
| Max. Pretravel | 5.97 mm |
| Min. Operating Temp. | -40°F |
| Mounting Dimensions | 0.41" x 0.87" |
| Mounting Hole Dia. | 1/8" |
| No. Of Contact Form | 2 , NO/NC |
| Operating Force | 0.16N |
| Operating Temp. | -40°F to +180°F |
| Over Travel | 0.118" |
| Overall Depth | 0.4" |
| Overall Height | 0.63" |
| Overall Width | 1.14" |
| Pre-travel | 0.235" |
| Release Force | 0.02 ozf |
| Series | V7 Series |
| Terminal Type | Quick Connect |
| Voltage | 125V AC |
| Watertight | No |
Shipping Info:
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.92 |
| Ship width (cm) | 9.65 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Lever Actuator Length-snap Action Switch | Voltage | Mounting Dimensions | Operating Temp. | Over Travel | Differential Travel | Operating Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
V7-1A17D8-048 | 5A | 2.02" | 250V AC | 22.2 mm x 10.3 mm | -40°F to +180°F | 0.124" | 0.053" | 0.45N | €8.03 | |
 |
V7-1A17D8-057 | 5A | 2 11/25" | 250V AC | 22.2 mm x 10.3 mm | -40°F to +180°F | 0.145" | 0.035" | 0.37N | €11.67 | |
 |
V7-1B17D8-048 | 3A | 2.34" | 277V AC | 0.41" x 0.87" | -40°F to +180°F | 0.115" | 0.03" | 1.7 oz. | €8.47 | |
 |
V7-1C17D8-022 | 15A | 1.41" | 277V AC | 0.41" x 0.87" | -40°F to +180°F | 0.09" | 0.03" | 2 41/50 oz. | €7.10 | |
 |
V7-1C17D8-048 | 15A | 2.34" | 277V AC | 0.41" x 0.87" | -40°F to +180°F | 0.165" | 0.06" | 1.59 oz. | €6.41 | |
 |
V7-1S17D8-022 | 0.1A | 1.41" | 125V AC | 0.41" x 0.87" | -40°F to +180°F | 0.085" | 0.03" | 3 oz. | €11.41 | |
 |
V7-1V19E9-048 | 20A | 2.34" | 277V AC | 0.41" x 0.87" | -40°F to +180°F | 3/25" | 0.055" | 1.94 oz. | €9.99 |
