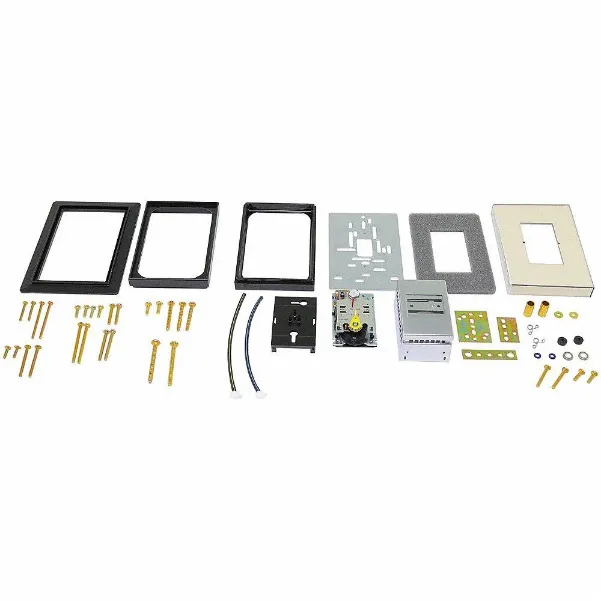

HONEYWELL TP970A2038 Pneumatic Thermostat, Single Temp., Single Dials, 2 Pipes, High Volume, Direct
Item: CJ3ARGModel: TP970A2038Cross Ref: 278Y85
7 In Stock
Ships within 2 days via
5.00% off
€1,076.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pneumatic Thermostat |
| Action | Direct |
| Air Consumption | 19 SCIM |
| Air Flow Output | High Volume |
| Application | Heat Only |
| Compatible System Type | Pneumatic Valves And Damper Actuators |
| Control Type | Exposed Dial |
| Differential Type | Adjustable |
| Included | Mounting Plate |
| Included Cover | Yes |
| Key Features | Pilot Operated For High Capacity, Shock-Resistant, Typical Wide Throttling Range |
| Manual Indexing Switch | No |
| Max. Air Pressure | 25 psig |
| Max. Control Temp. | 100°F |
| Mounting Direction | Vertical |
| Mounting Location | Wall |
| No. Of Dials | Single |
| No. Of Pipes | 2 |
| Overall Depth | 1 5/8" |
| Overall Height | 3 1/4" |
| Overall Width | 2" |
| Sensor Type | Bi Metallic Spring |
| Temp. Scale | Fahrenheit |
| Temp. Settings | Single Temperature |
| Thermostat Action | Direct |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 8.26 |
| Ship length (cm) | 4.13 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Model | Application | Overall Width | Overall Height | Overall Depth | Mounting Direction | Height | Mounting Style | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TP970A2004/U | Heat Or Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €484.58 | |
| TP970A2145/U | Heat Or Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €500.91 | |
| TP970A2259/U | Heat Or Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €598.33 | |
| TP970B2002/U | Heat Or Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €405.61 | |
| TP970B2077/U | Heat Or Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €529.56 | |
| TP972A2002/U | Heat And Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €705.34 | |
| TP973A2076/U | Heat Or Cool | 2" | 3 1/4" | 1 5/8" | Vertical | 3 1/4" | Vertical | 1 5/8" | €395.07 |
