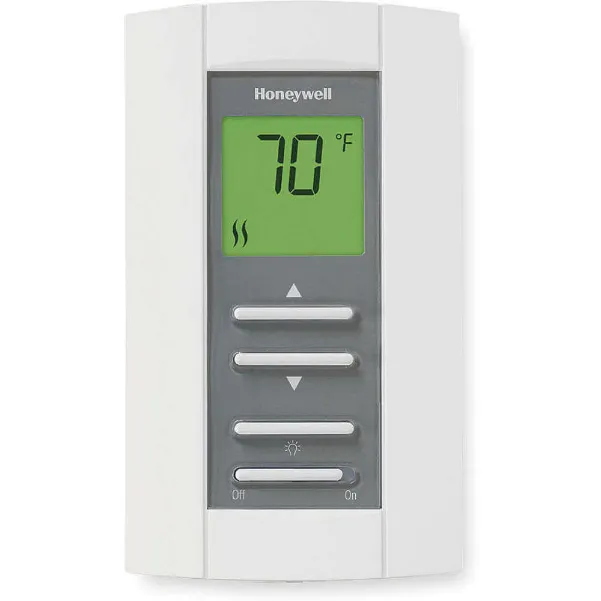

HONEYWELL TL7235A1003 T-stat Line V Digital
Item: AF2PGTModel: TL7235A1003Cross Ref: 6WY23
7 In Stock
Ships within 2 days via
10.00% off
€205.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Voltage Thermostat |
| Application | Heat Only |
| Backlit Screen | Yes |
| Backlit Type | 5 sec. |
| Color | White |
| Compatible System Type | Electric Heating |
| Contact Rating Resistive @ 240v | 15A |
| Control Type | Push Button |
| Depth | 7/8" |
| Differential | -1°F to +1°F |
| Display Type | Digital |
| Electrical Connection Type | Hardwired |
| Fan Settings | No Fan Setting |
| Frequency | 50/60 Hz |
| Full Load Amps @ 120v | 15A |
| Full Load Amps @ 240v Ac | 15A |
| Full Load Amps @ 240vac | 15 |
| Height | 4 7/8" |
| Housing Color | White |
| Housing Material | Plastic |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Lead Length | 5 1/2" |
| Lead Material | Copper |
| Maximum Control Temperature | 122°F |
| Maximum Operating Temperature | 122°F |
| Minimum Control Temperature | 32°F |
| Minimum Operating Temperature | 32°F |
| Mounting Direction | Vertical |
| Number Of Heating Stages | 1 |
| Number Of Switches | 1 |
| Overall Depth | 7/8" |
| Overall Height | 4 7/8" |
| Overall Width | 2 3/4" |
| Sensor Type | Thermistor |
| Standards | Csa, Ul |
| Switch Action | Open On Rise |
| Switch Type | DPST |
| System Settings | Heat-Off |
| Temp. Sensitivity | 1°F |
| Temp. Sensitivity | 1 Degrees F |
| Temperature Differential | 1°F |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Thermostat Heating/cooling | Heating |
| Thermostat Programmable | No |
| Thermostat Type | Line Voltage |
| Voltage | 208/240V AC |
| Voltage Range | 208-240V AC |
| Width | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 6.1 |
| HS code | 9032100030 |
| Country of Origin | CN |
