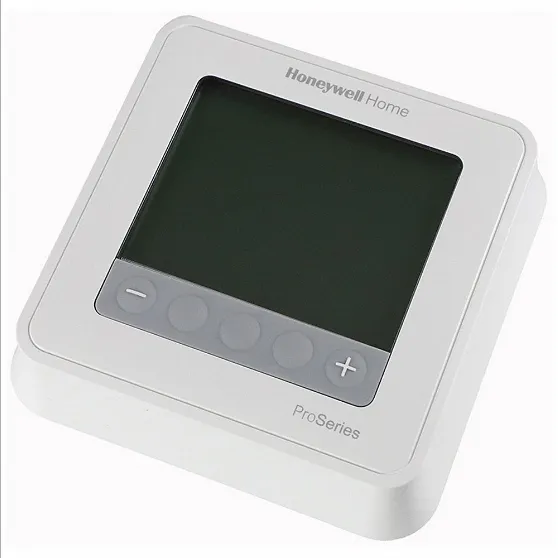

HONEYWELL TH6220U2000/U Low Voltage Thermostat, Heat and Cool, Auto, 5-1-1/5-2/7 Day, Horizontal, Square
Item: BP4DLHModel: TH6220U2000/UCross Ref: 54DM24
7 In Stock
Ships within 2 days via
10.00% off
€290.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| 750mv Compatible | No |
| Application | Heat And Cool |
| Automatic Changeover | Yes |
| Backlit Screen | Yes |
| Backlit Screen Color | Blue |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Changeover Type | Automatic |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump With Aux, Hydronic Systems |
| Contact Rating | 20/30V AC |
| Control Type | Push Button |
| Dehumidification Control | No |
| Depth | 6" |
| Digit Size | Standard |
| Display Color | Blue |
| Display Type | Digital |
| Dual Transformer Compatible | No |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto Circulate On |
| Fan Switching | Yes |
| Features | Programmable, Universal Mounting |
| Filter Change Reminder | No |
| Filter Indicator | No |
| Frequency | 50/60 Hz |
| Height | 2 9/32" |
| Housing Color | White |
| Humidification Control | No |
| Includes | Installation (J-Box) Adaptor, Installation Guide, Mounting Hardware, Small Decorative Cover Plate, User Guide And (2) Aa Batteries, Uwp Mounting System |
| Includes Batteries | Yes |
| Includes Positive Off | Yes |
| Key Features | Universal Mounting |
| Key Pad Lockout | Yes |
| Low-battery Indicator | Yes |
| Maximum Control Temperature | 99°F |
| Maximum Operating Humidity | 90% |
| Maximum Operating Temperature | 120°F |
| Millivolt Compatible | No |
| Minimum Control Temperature | 40°F |
| Minimum Operating Humidity | 5% |
| Minimum Operating Temperature | 32°F |
| Mounting Direction | Horizontal |
| Mounting Location | Wall |
| Number Of Cooling Stages - Conventional System | 2 |
| Number Of Cooling Stages - Heat Pump System | 1 |
| Number Of Heating Stages (conventional System) | 2 |
| Number Of Heating Stages - Heat Pump System | 2 |
| Number Of Zones | 1 |
| Overall Depth | 1 7/16" |
| Overall Height | 4 1/16" |
| Overall Width | 4 1/16" |
| Programmable Fan | Yes |
| Programming Capability | 5-1-1, 5-2, 7 Days |
| Remote Sensing Capability | Yes |
| Screen Height | 5 1/2" |
| Screen Width | 5 1/2" |
| Sensor Location | Remote |
| Shape | Square |
| Stages Conventional | 2 H/2 C Conventional |
| Stages Cool | 2 |
| Stages Heat Pump | 2 H/1 C Heat Pump |
| Stages Heating/cooling | 2 H/2 C Conventional, 2 H/1 C Heat Pump |
| System Settings | Auto-Cool-Emergency Heat-Heat-Off |
| Temperature Differential | 1°F |
| Temperature Limiting | No |
| Temperature Readout | Yes |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Settings Per Day | 0, 1, 2, 4 |
| Temporary Program Override | Yes |
| Temporary Temperature Hold | Yes |
| Terminal Designations | Aux, C, E, G, K, L/A, O/B, R, Rc, S, U, W, W2, Y, Y2 |
| Thermostat Type | Low Voltage |
| Type | Low Voltage |
| Voltage | 20-30V AC |
| Width | 5" |
| Wifi Capability | No |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 10.32 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 10.32 |
| Country of Origin | MX |
